Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

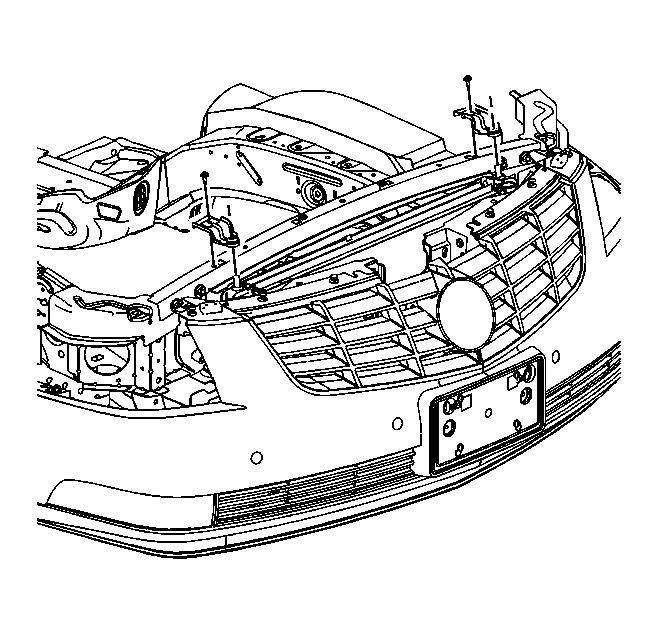

Fig 1: Radiator Support Brackets

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the radiator support bracket.
Install the radiator support bracket retaining bolt.
Tighten: Tighten the bolts to 25 N.m (18 lb in).
