Drive Motor Control Module: Diagrams
Component Connector End Views

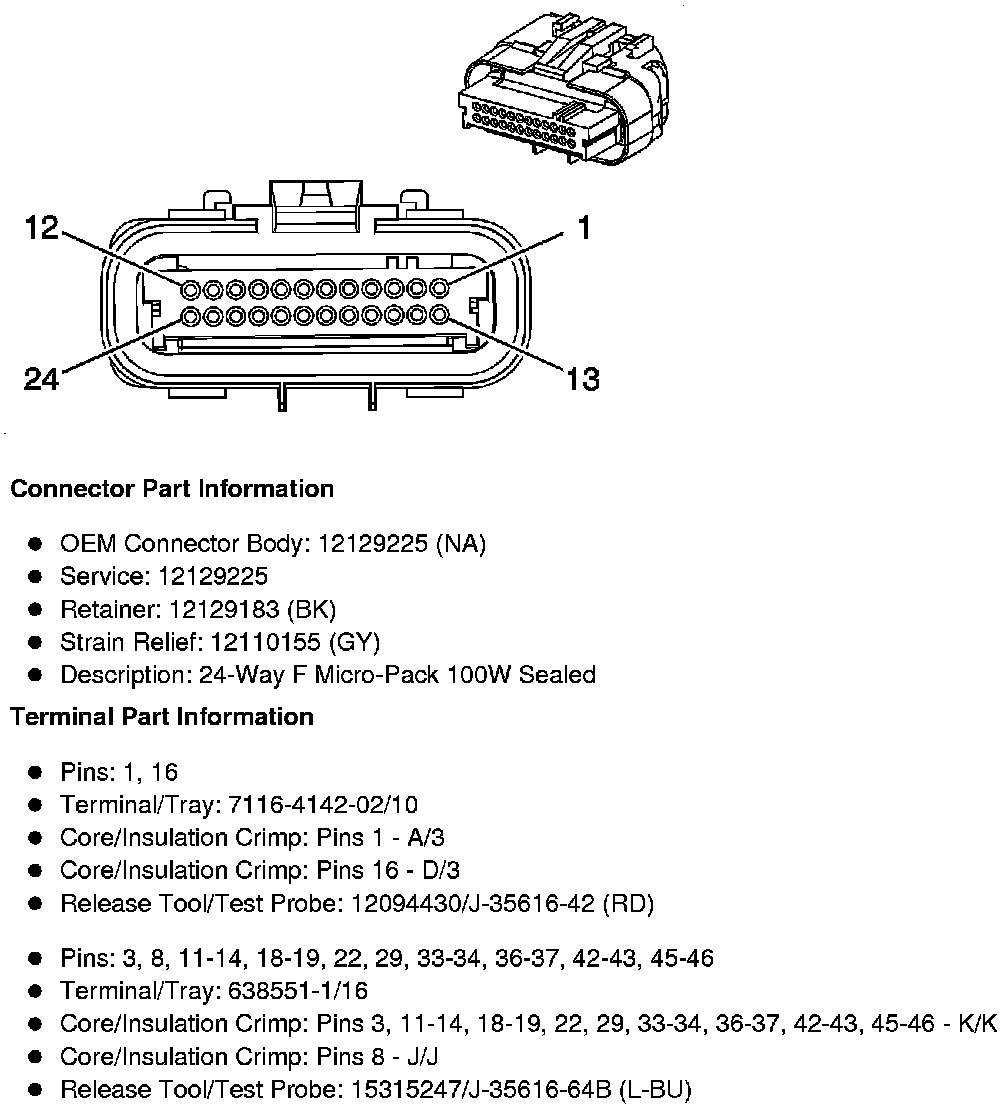

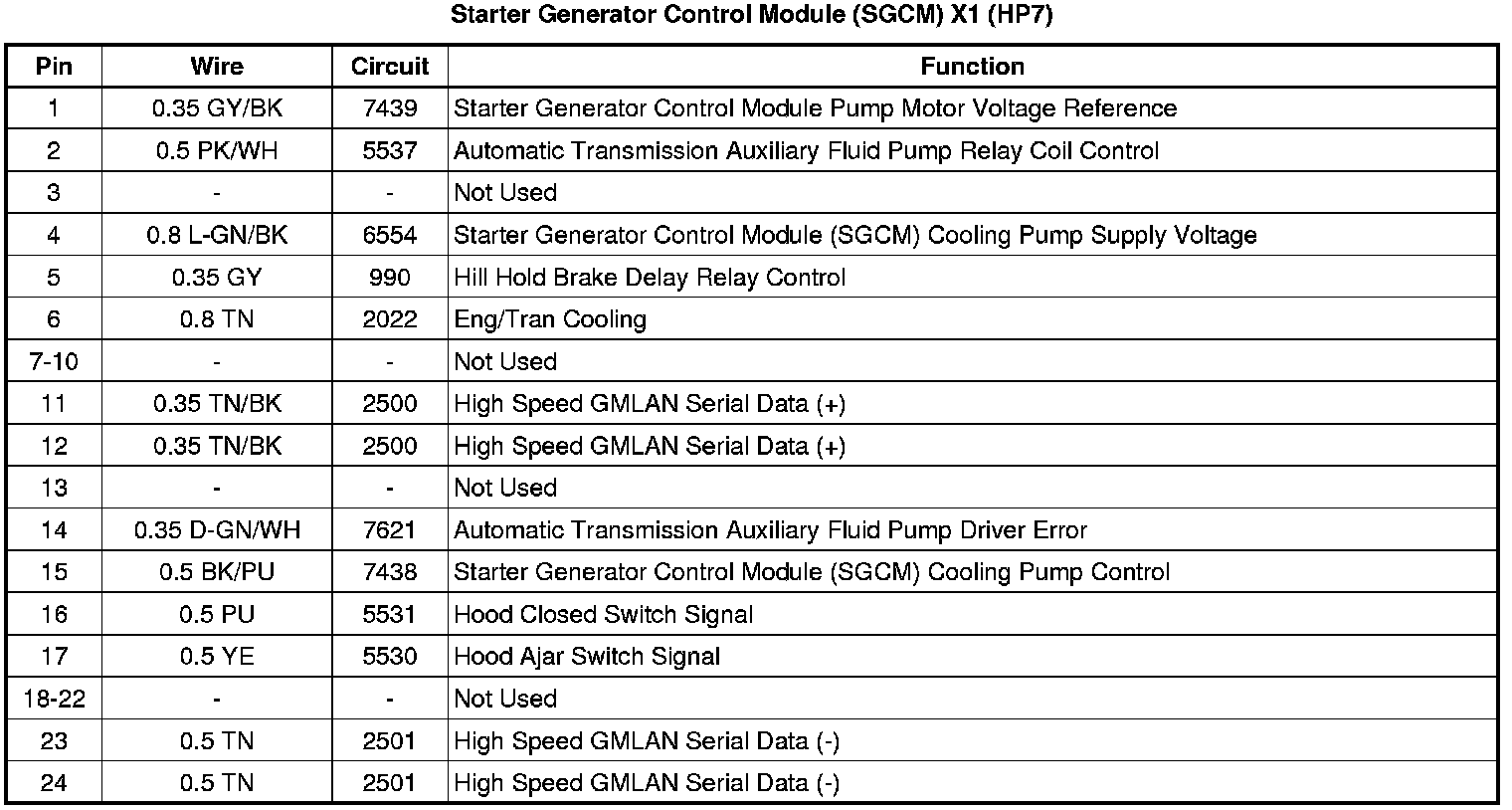

Starter Generator Control Module (SGCM) X1 (HP7)

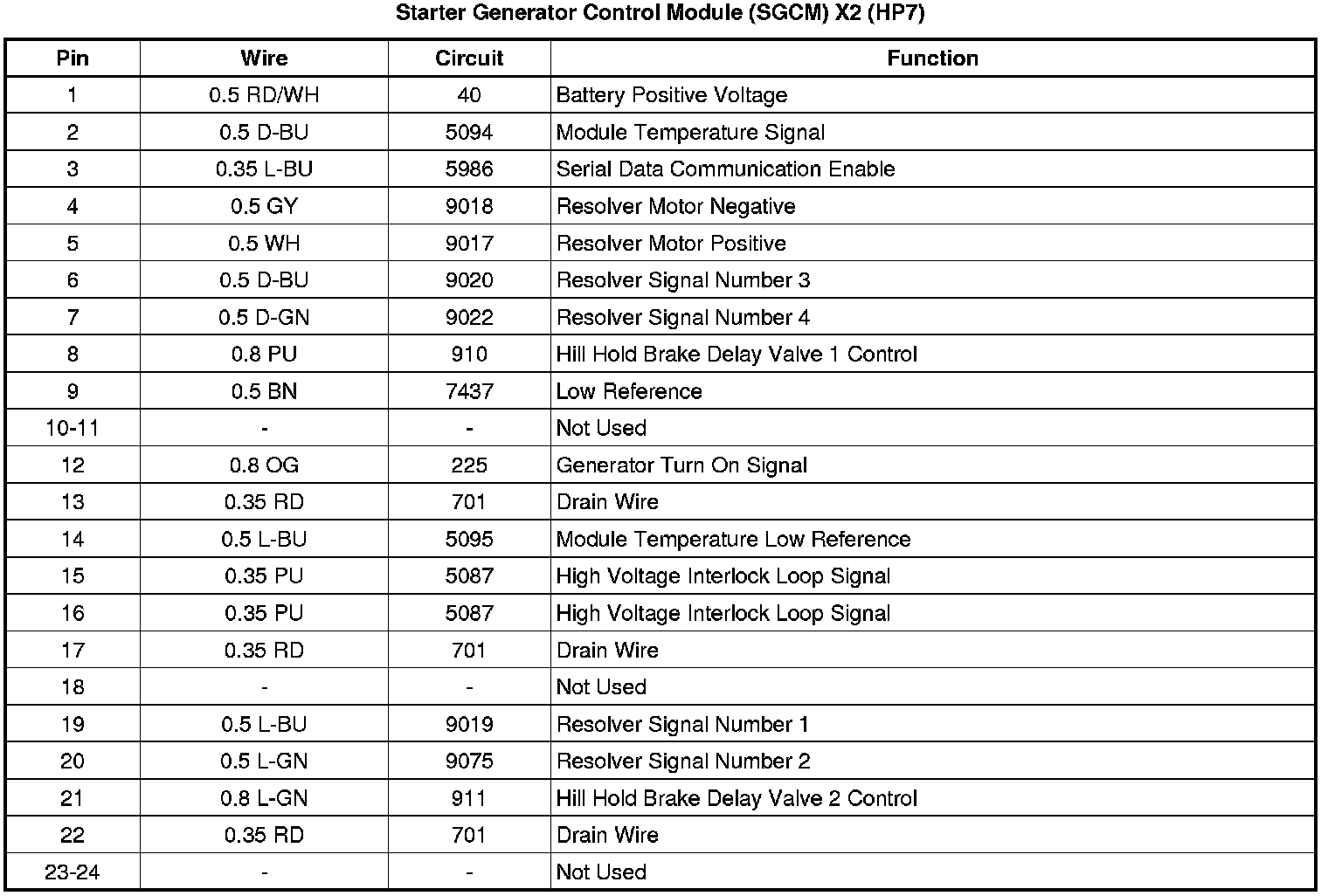

Starter Generator Control Module (SGCM) X2 (HP7)
Starter Generator Control Module (SGCM) X3 (HP7)
Starter Generator Control Module (SGCM) X4 (HP7)
Starter Generator Control Module (SGCM) X5 (HP7)
