I/P Fuse Block




Electrical Center Identification Views

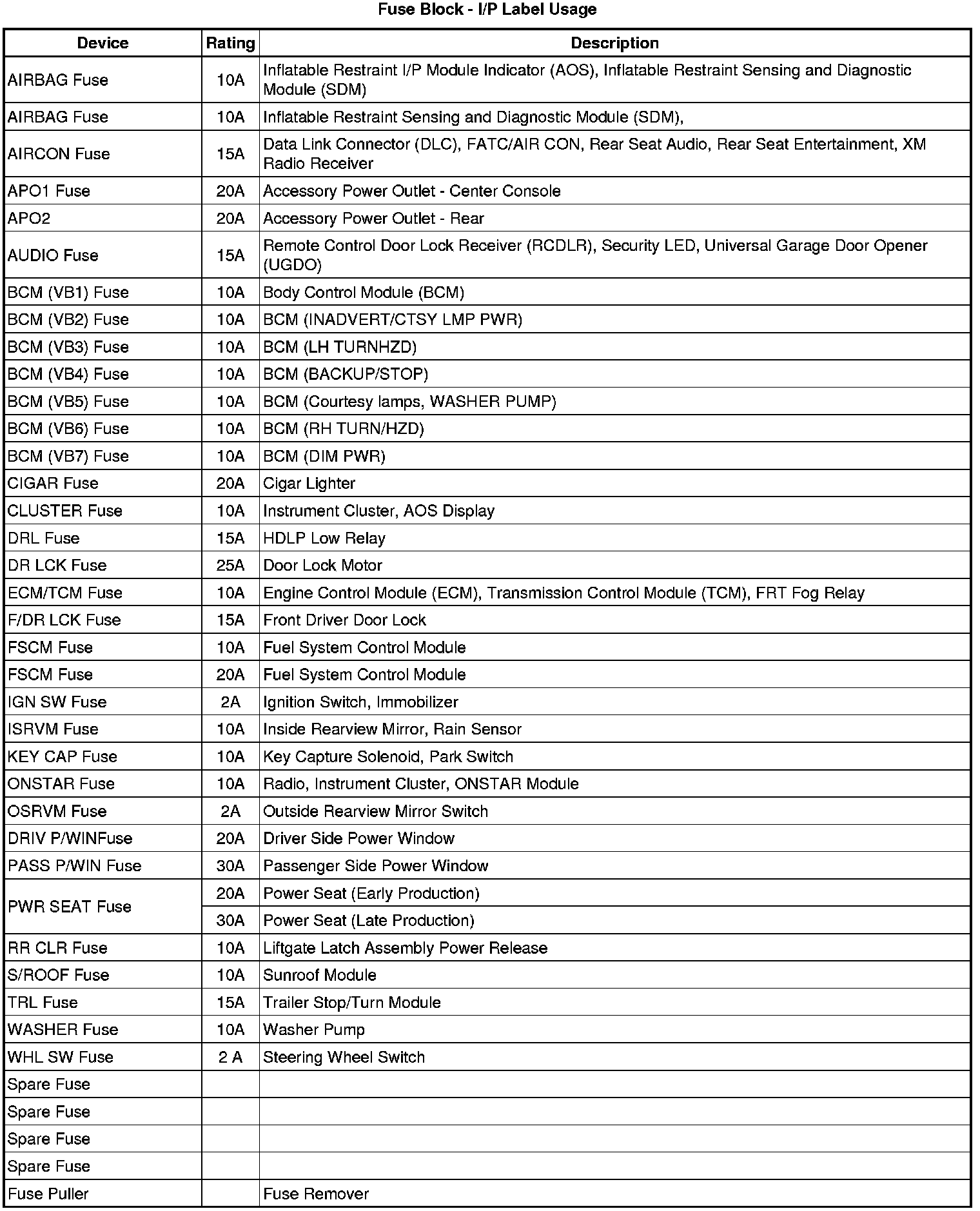

Fuse Block - I/P Label

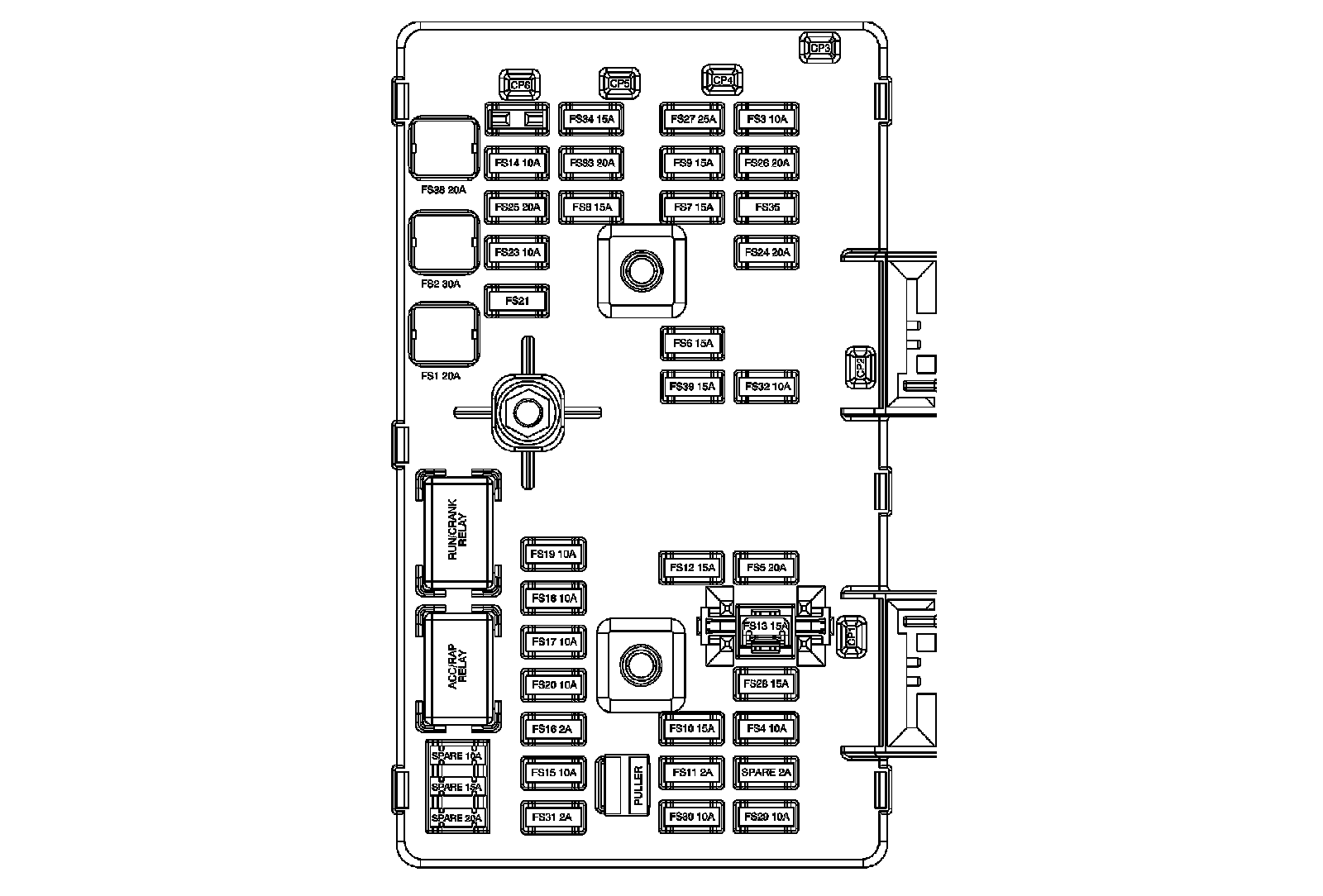

Fuse Block - I/P Top View






Fuse Block - I/P Bottom View

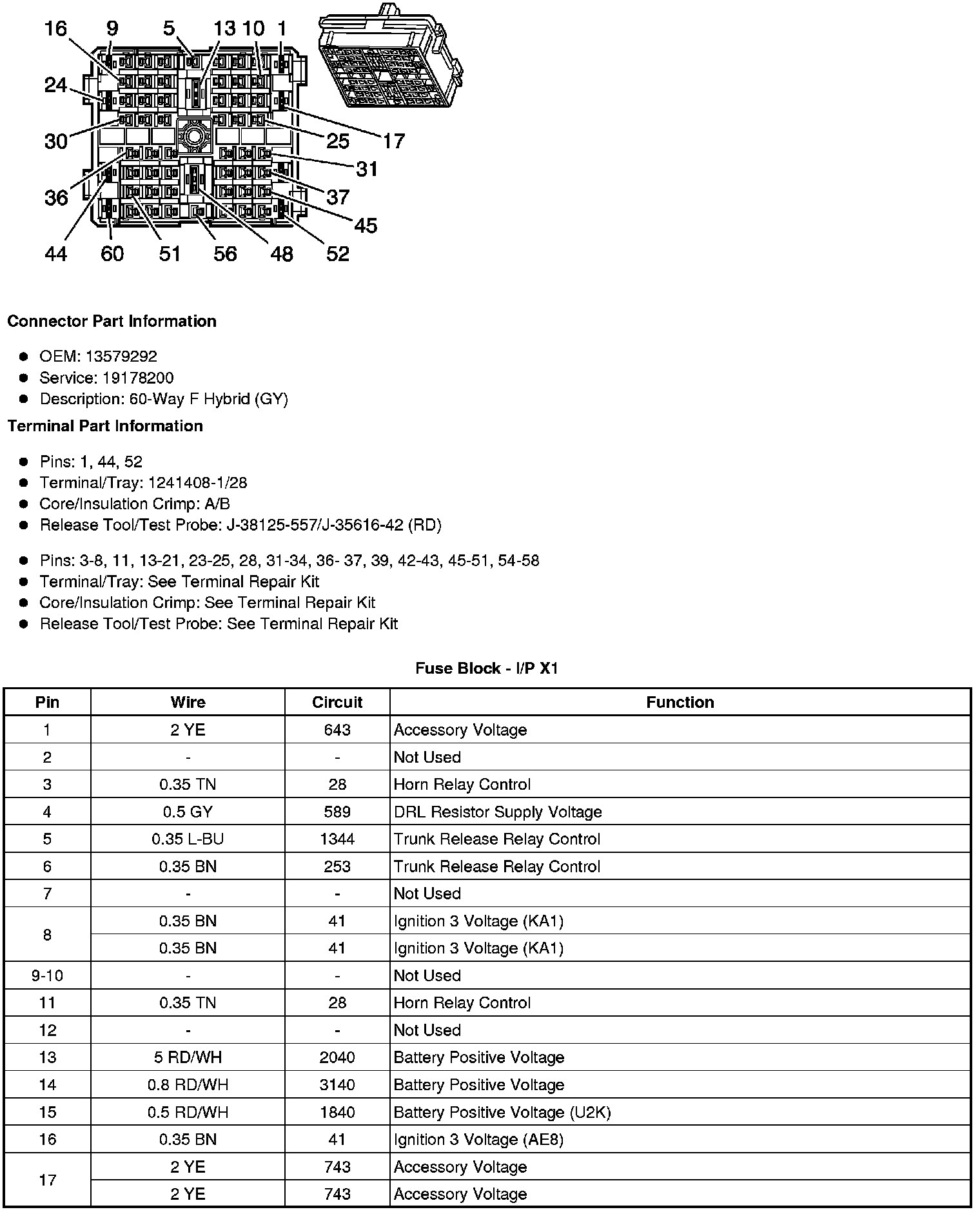

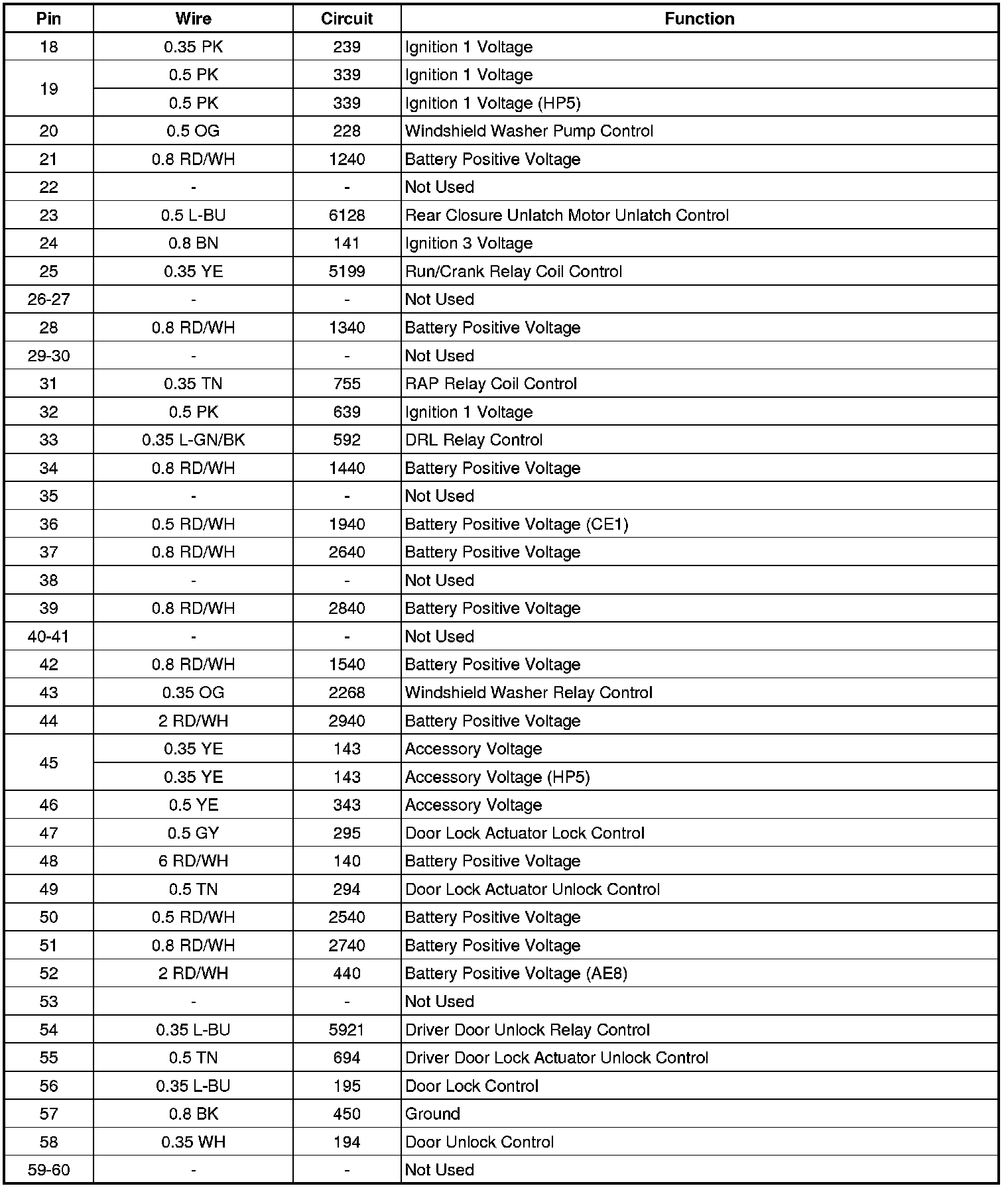

Fuse Block - I/P X1

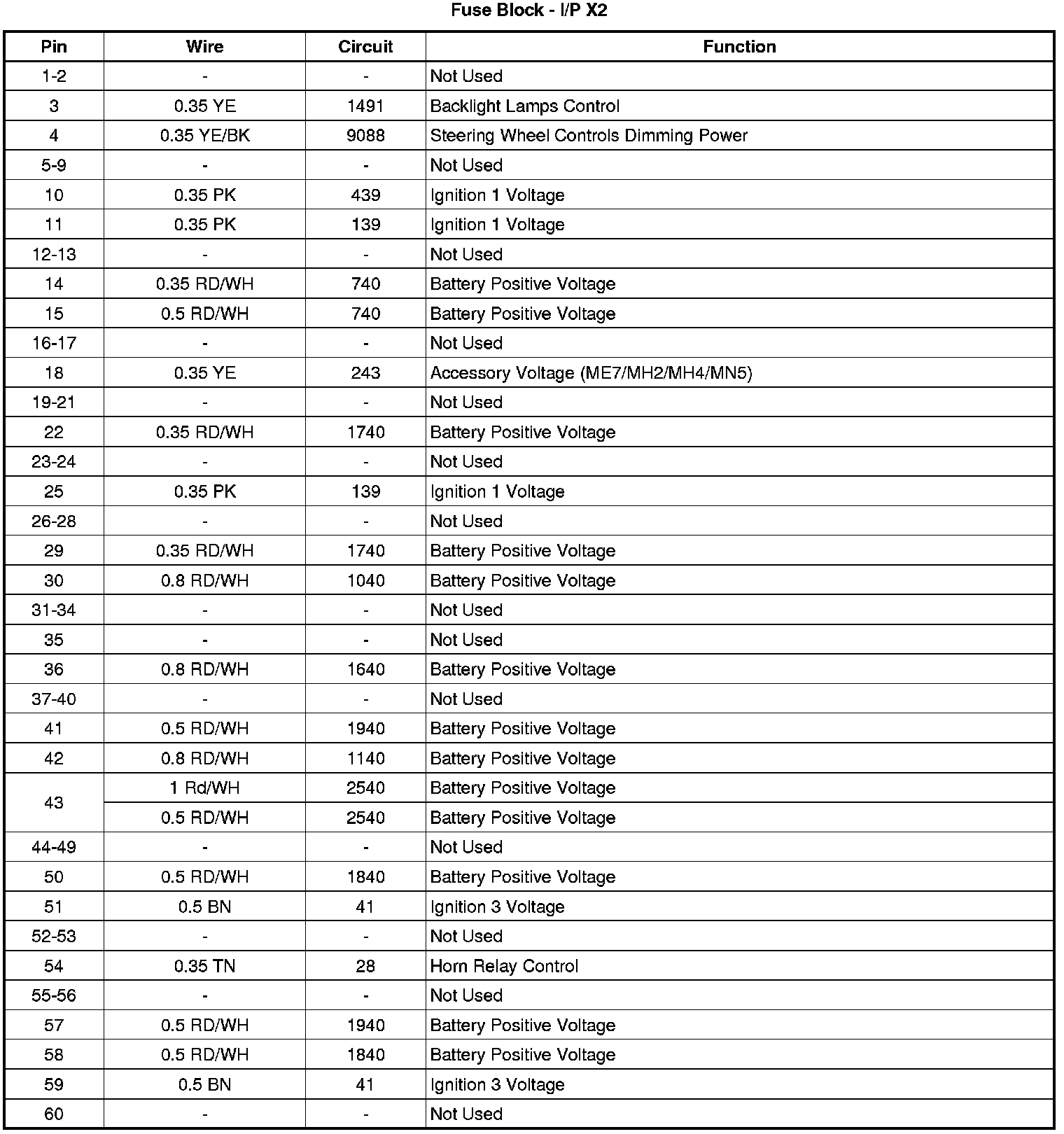

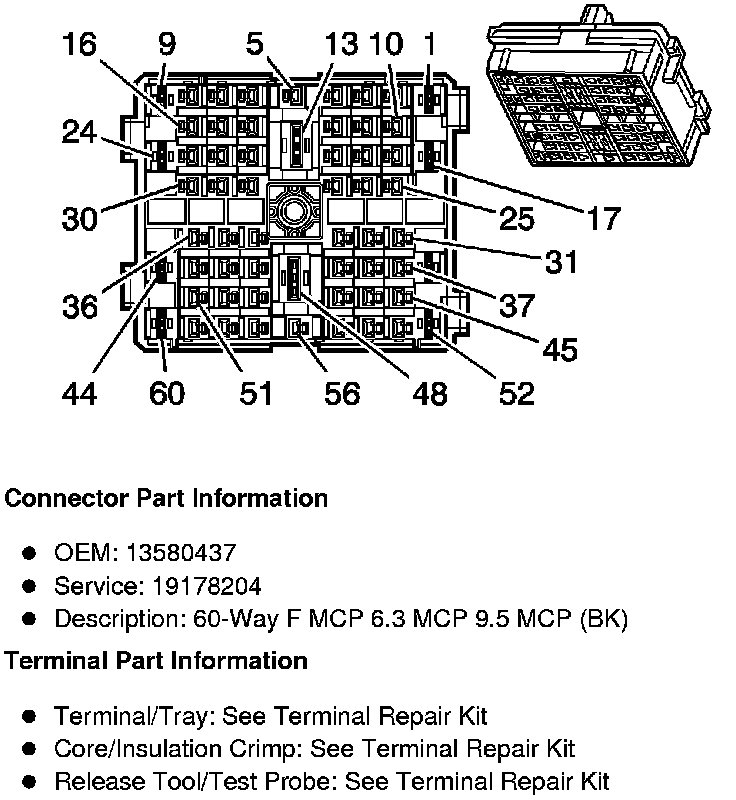

Fuse Block - I/P X2
