Variable Valve Timing Solenoid: Diagrams




Component Connector End Views

Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust (LAT/LE5/LE9)

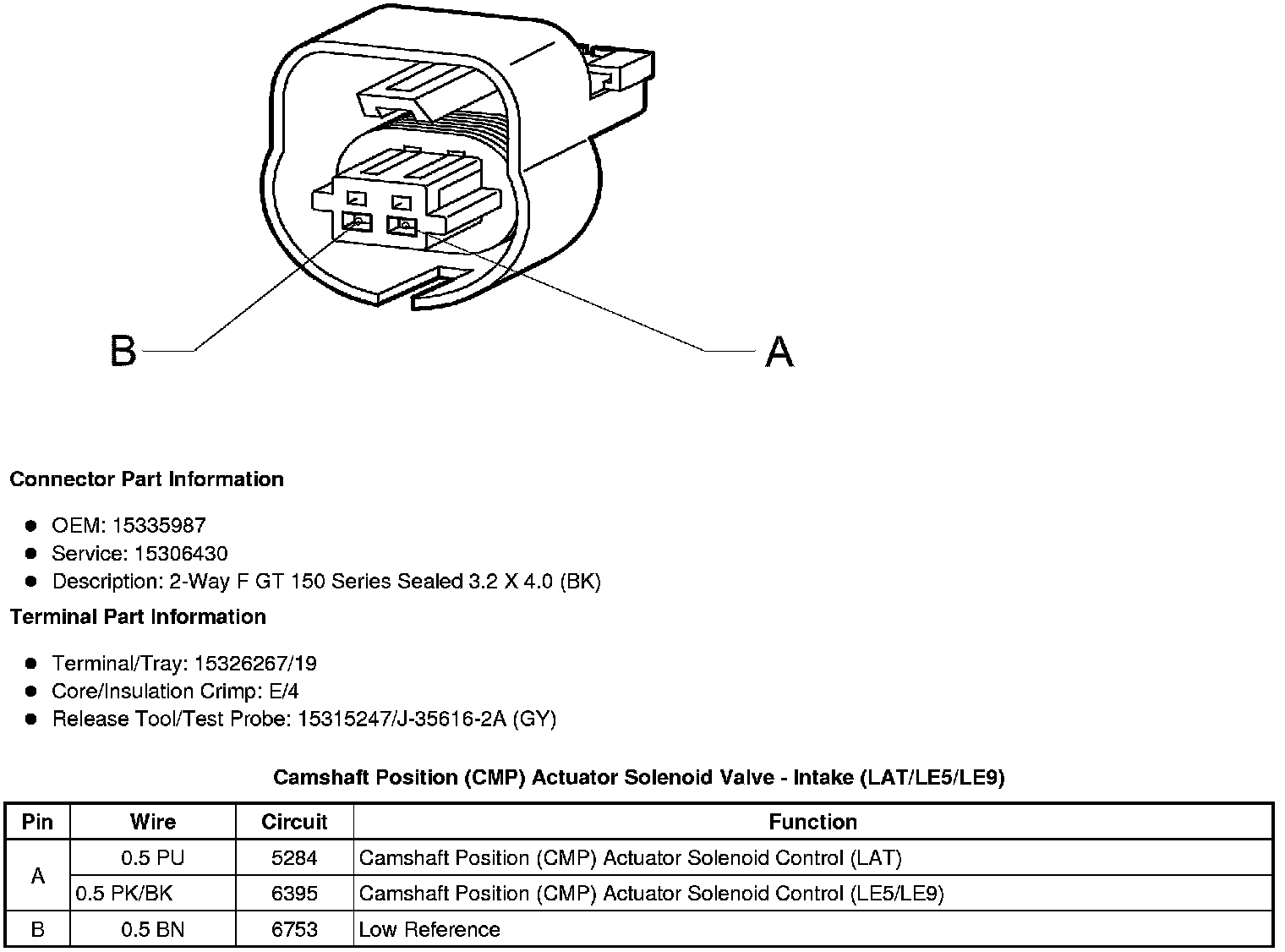

Camshaft Position (CMP) Actuator Solenoid Valve - Intake (LAT/LE5/LE9)
