Drive Motor Control Module: Diagrams




Component Connector End Views

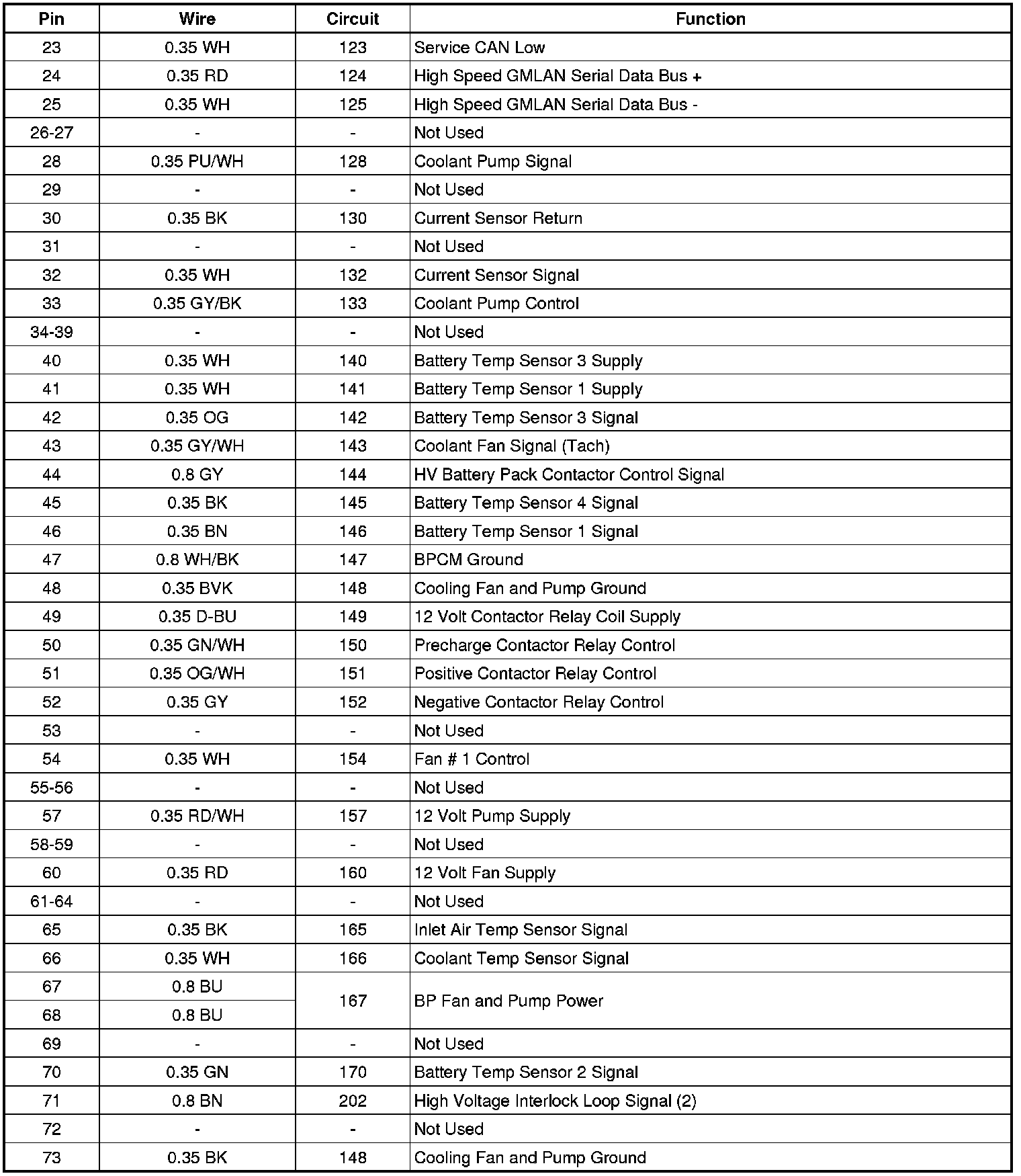

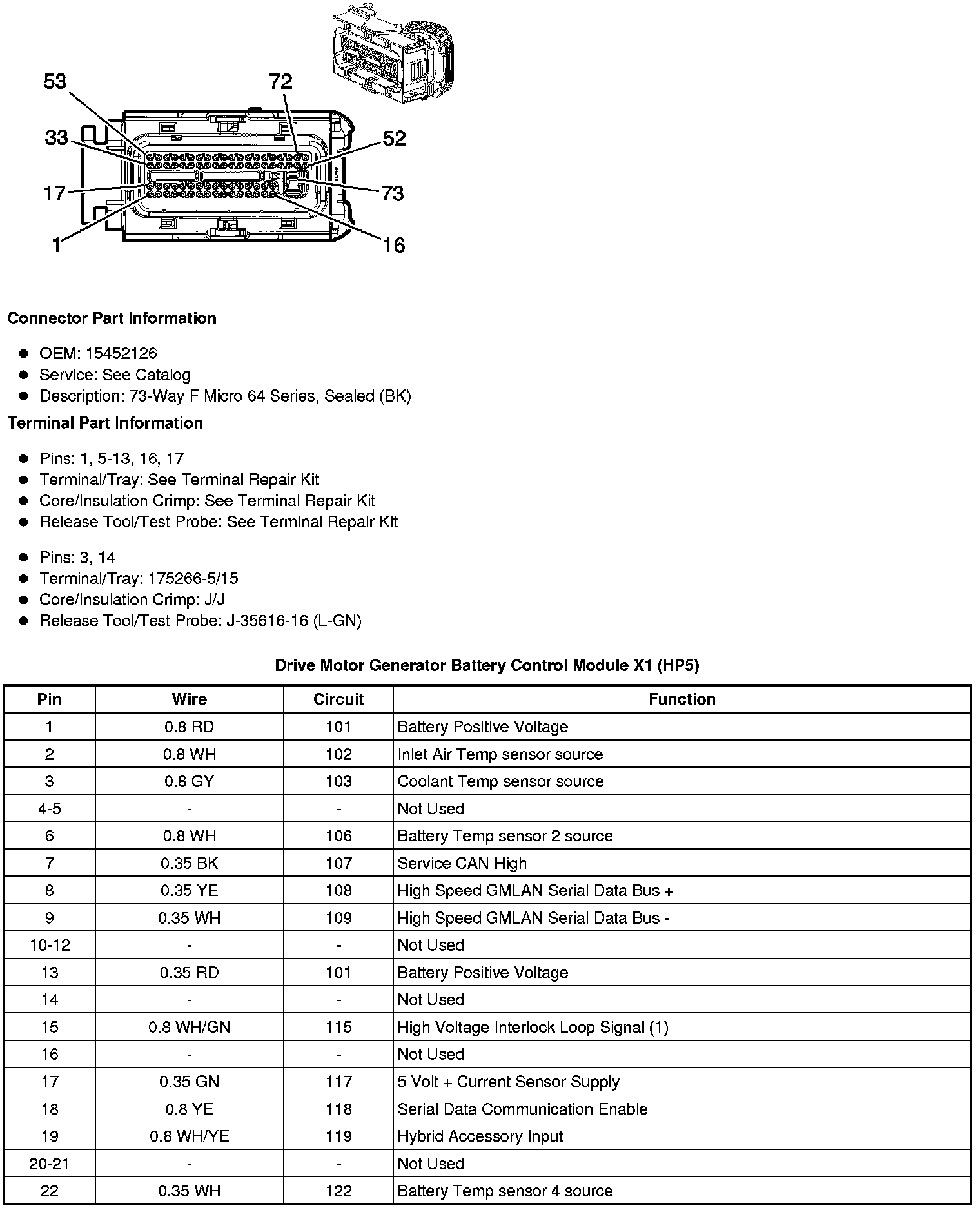

Drive Motor Generator Battery Control Module X1 (HP5)

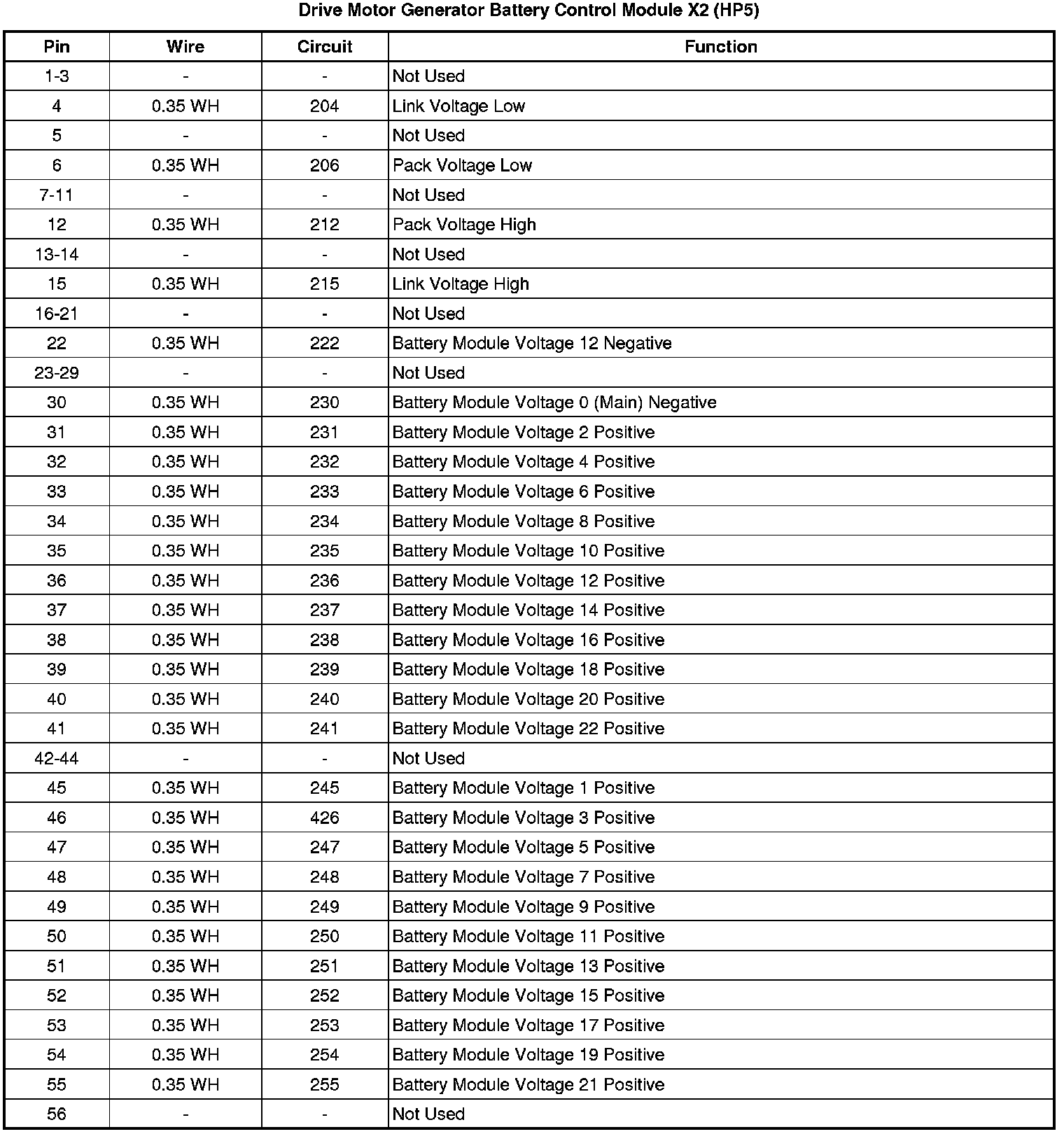

Drive Motor Generator Battery Control Module X2 (HP5)

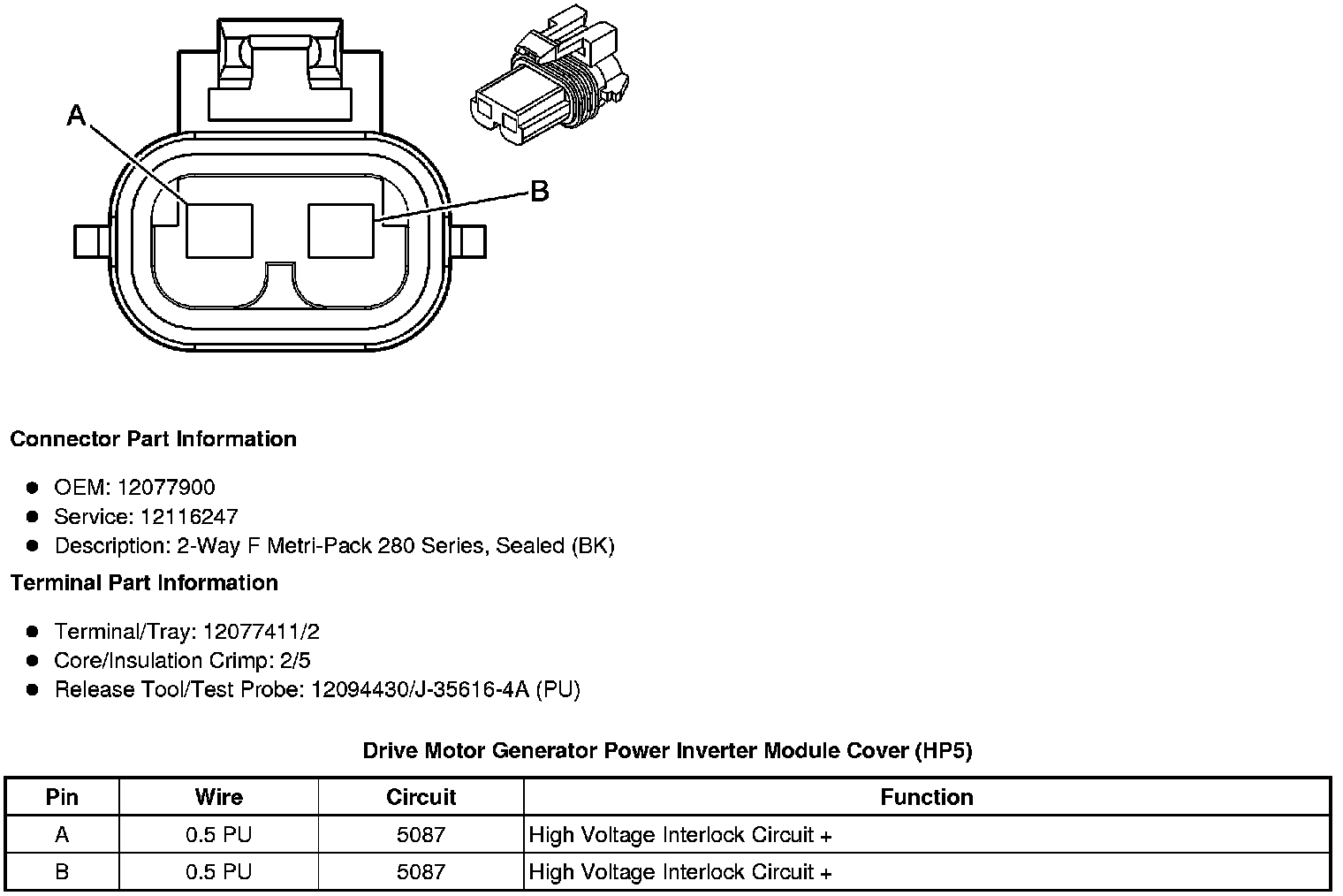

Drive Motor Generator Power Inverter Module Cover (HP5)
