Power Distribution Module: Diagrams




Component Connector End Views

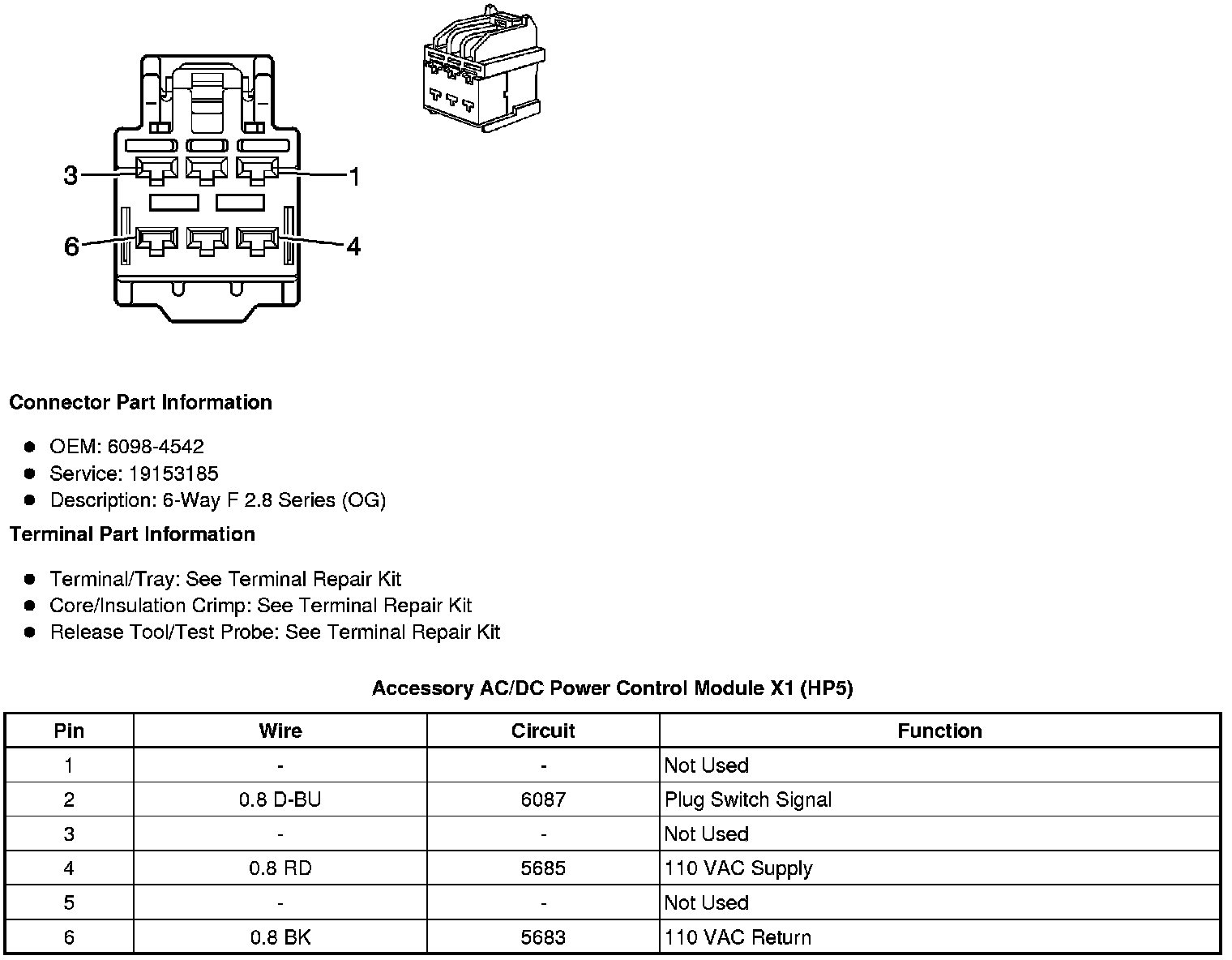

Accessory AC/DC Power Control Module X1 (HP5)






Accessory AC/DC Power Control Module X2 (HP5)

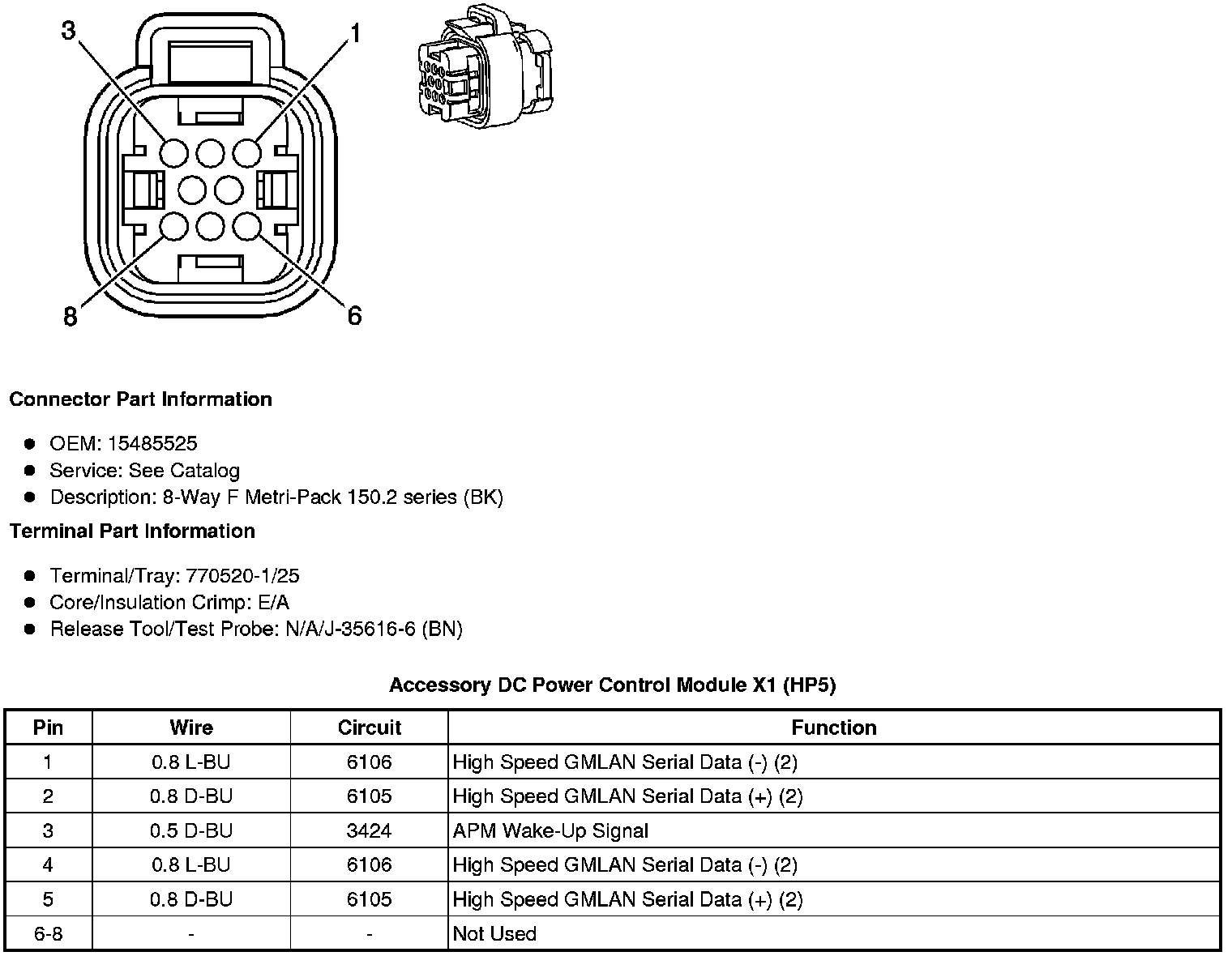

Accessory DC Power Control Module X1 (HP5)

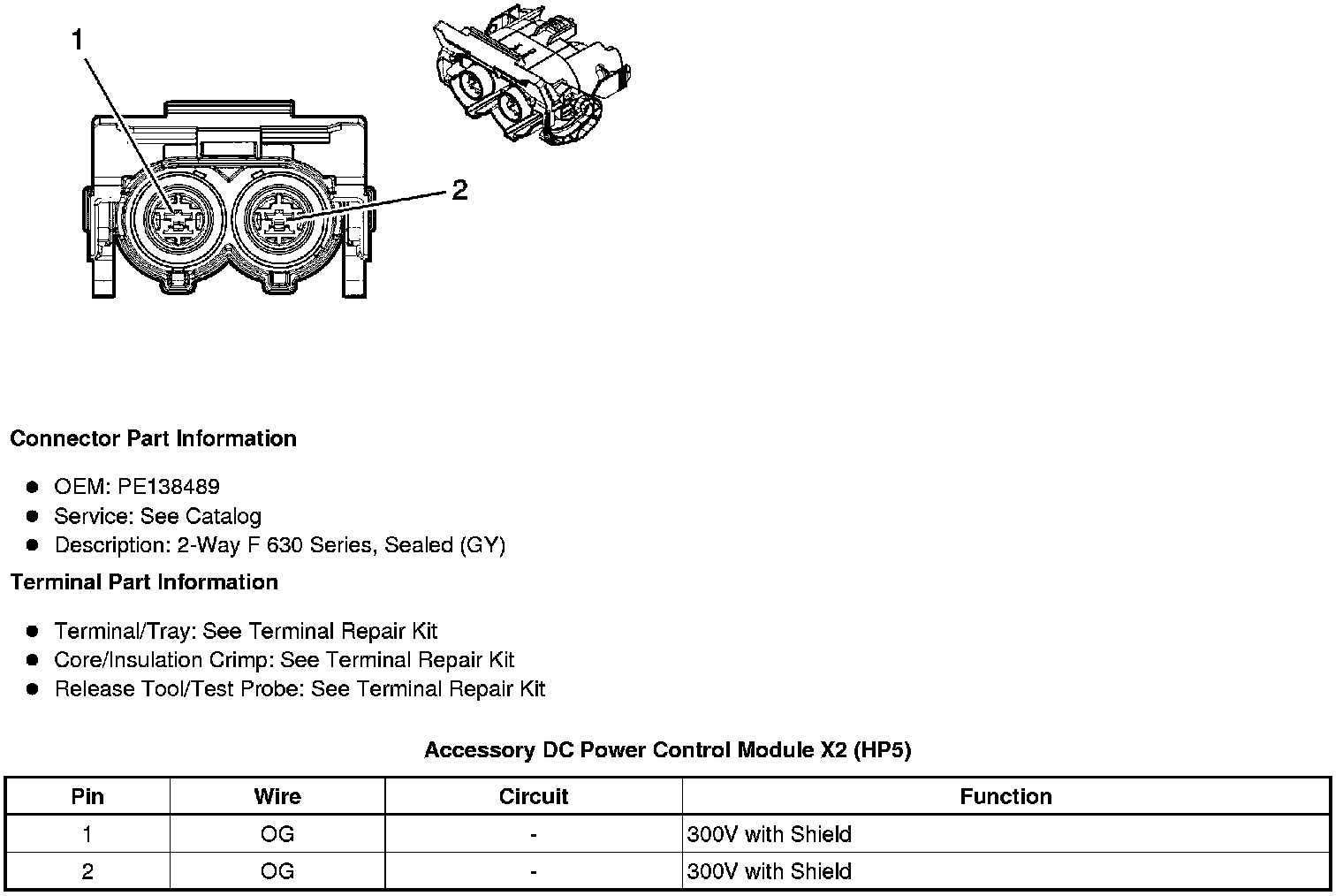

Accessory DC Power Control Module X2 (HP5)

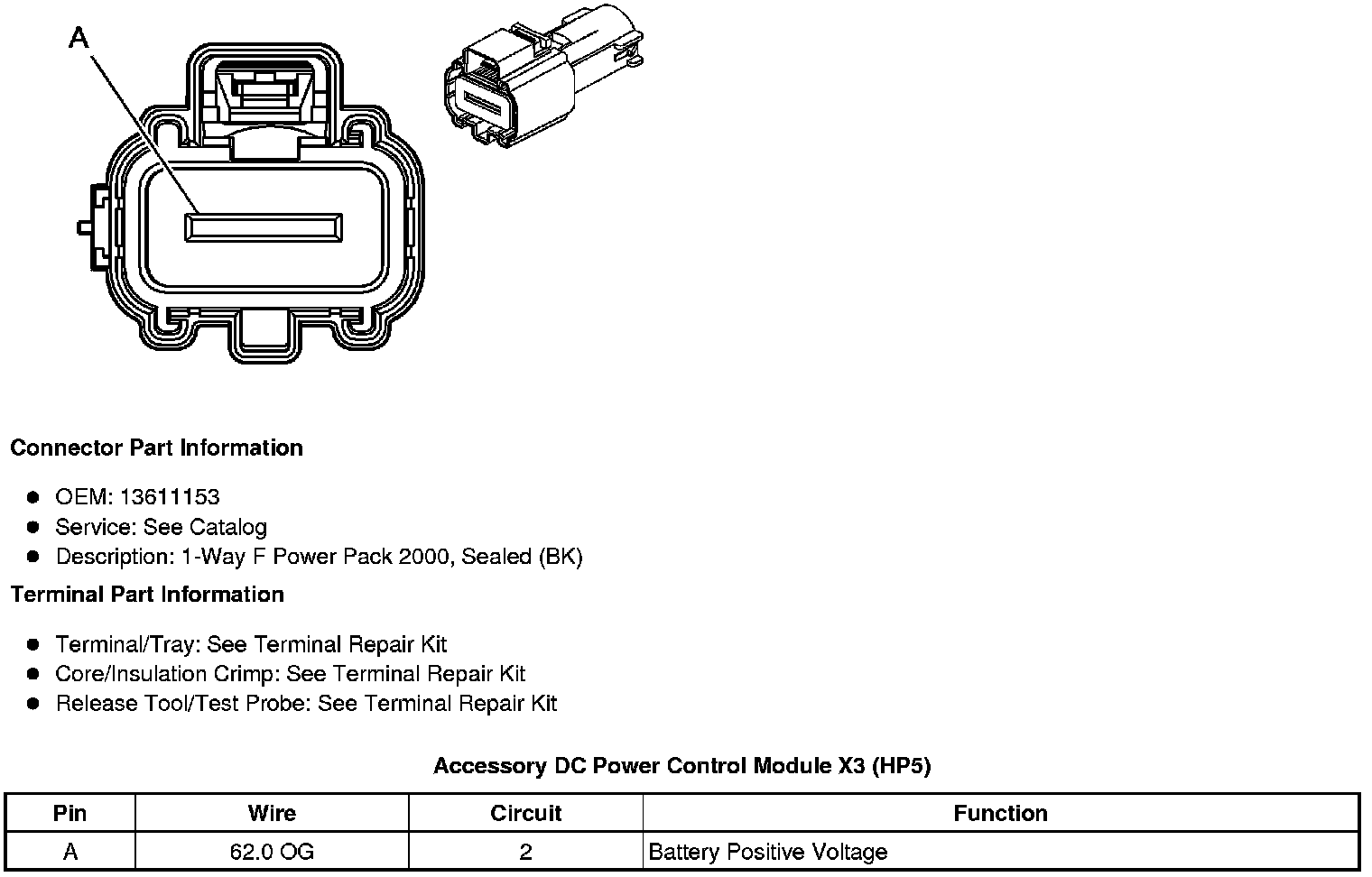

Accessory DC Power Control Module X3 (HP5)






Accessory DC Power Control Module X4 (HP5)
