Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Auxiliary Fuse Block (1) | Left rear of engine compartment. See Figure. |
| Drive Motor Battery Current Limit Resistor (V6 Hybrid) | In drive motor battery. |
| Fuse Block - Auxiliary (V6 Hybrid) | Front center of engine compartment. |

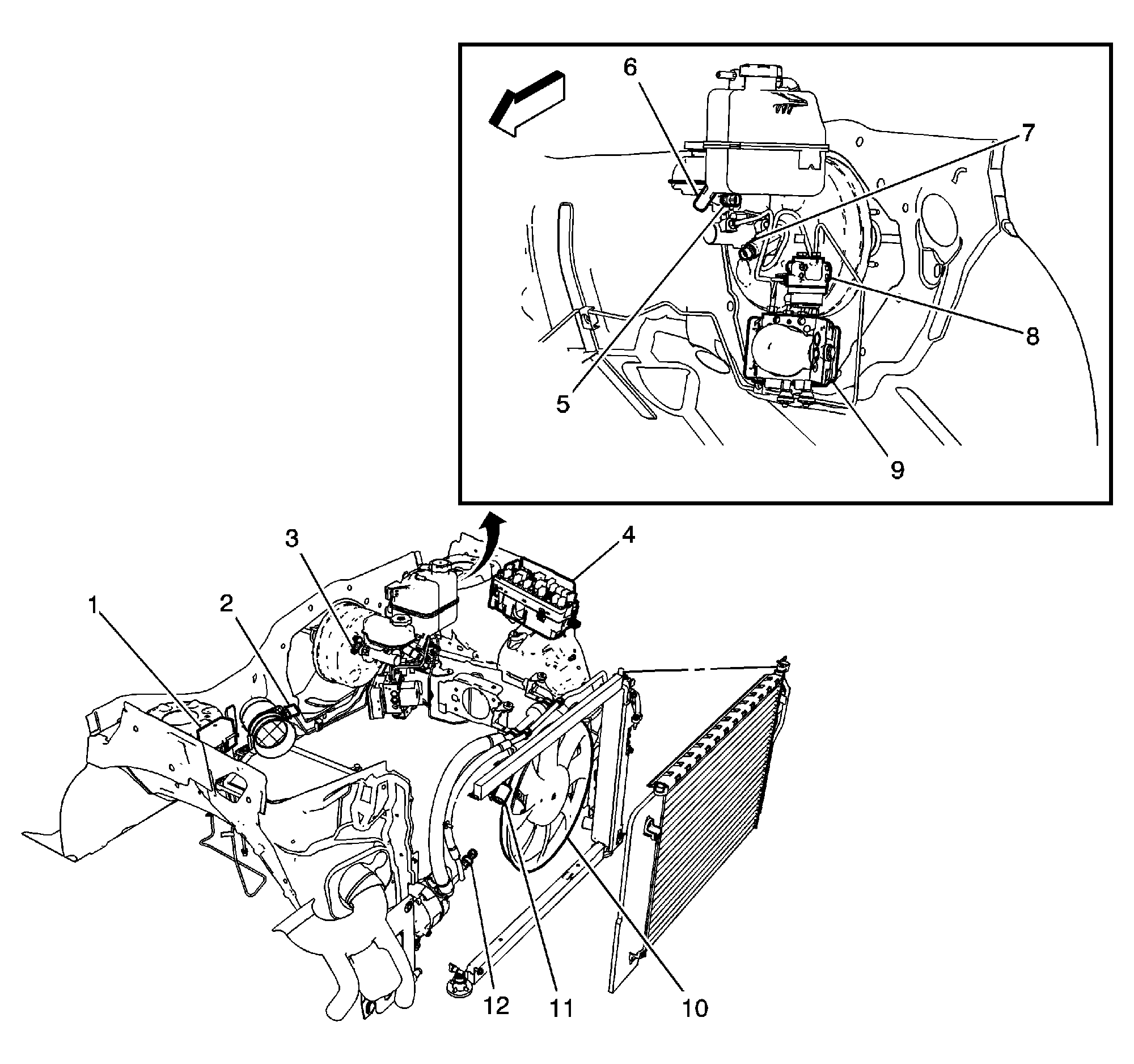

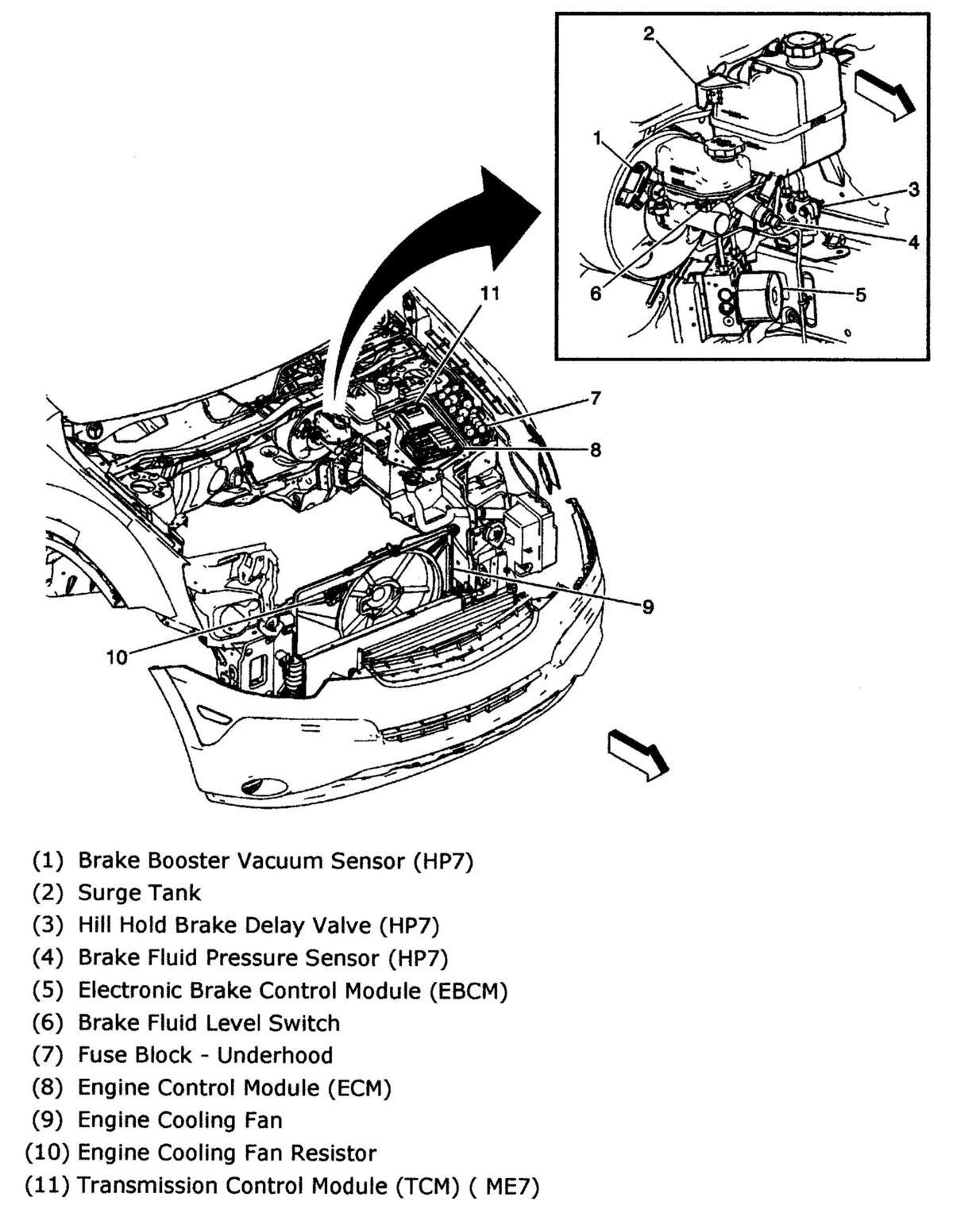

| Fuse Block - Underhood (V6 Hybrid) | Front center of engine compartment. See Figure. |
| Fuse Block - Underhood (4) | Left side of engine compartment. See Figure. |
