Accelerator Pedal Position Sensor Replacement

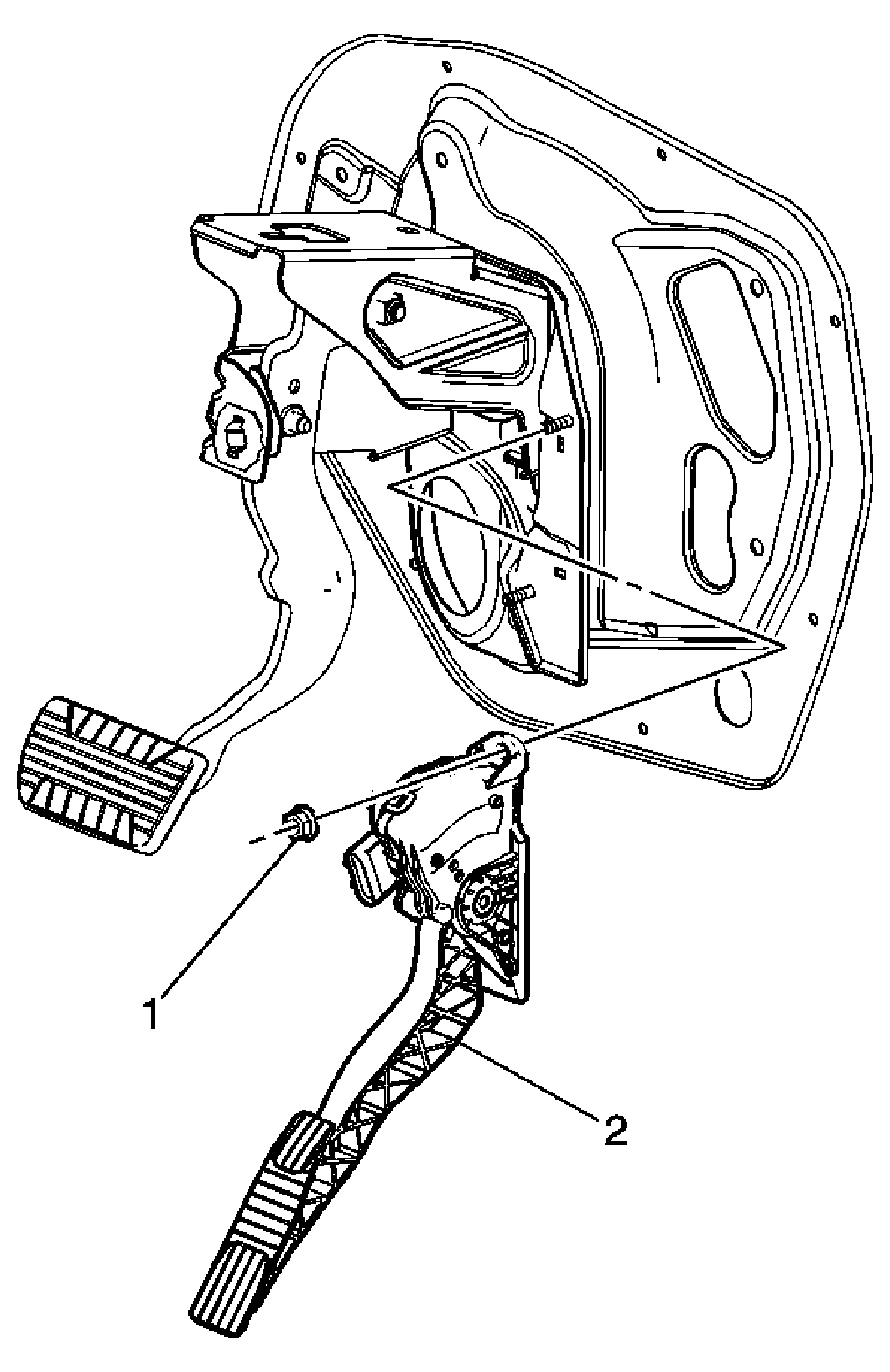

Fig 1: Accelerator Pedal Position Sensor Replacement
GM2053800Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accelerator Pedal Position Sensor Nut (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m (89 lb in)
2 Accelerator Pedal Position Sensor
Procedure:
Disconnect the electrical connector.
