Air Cleaner Element Replacement

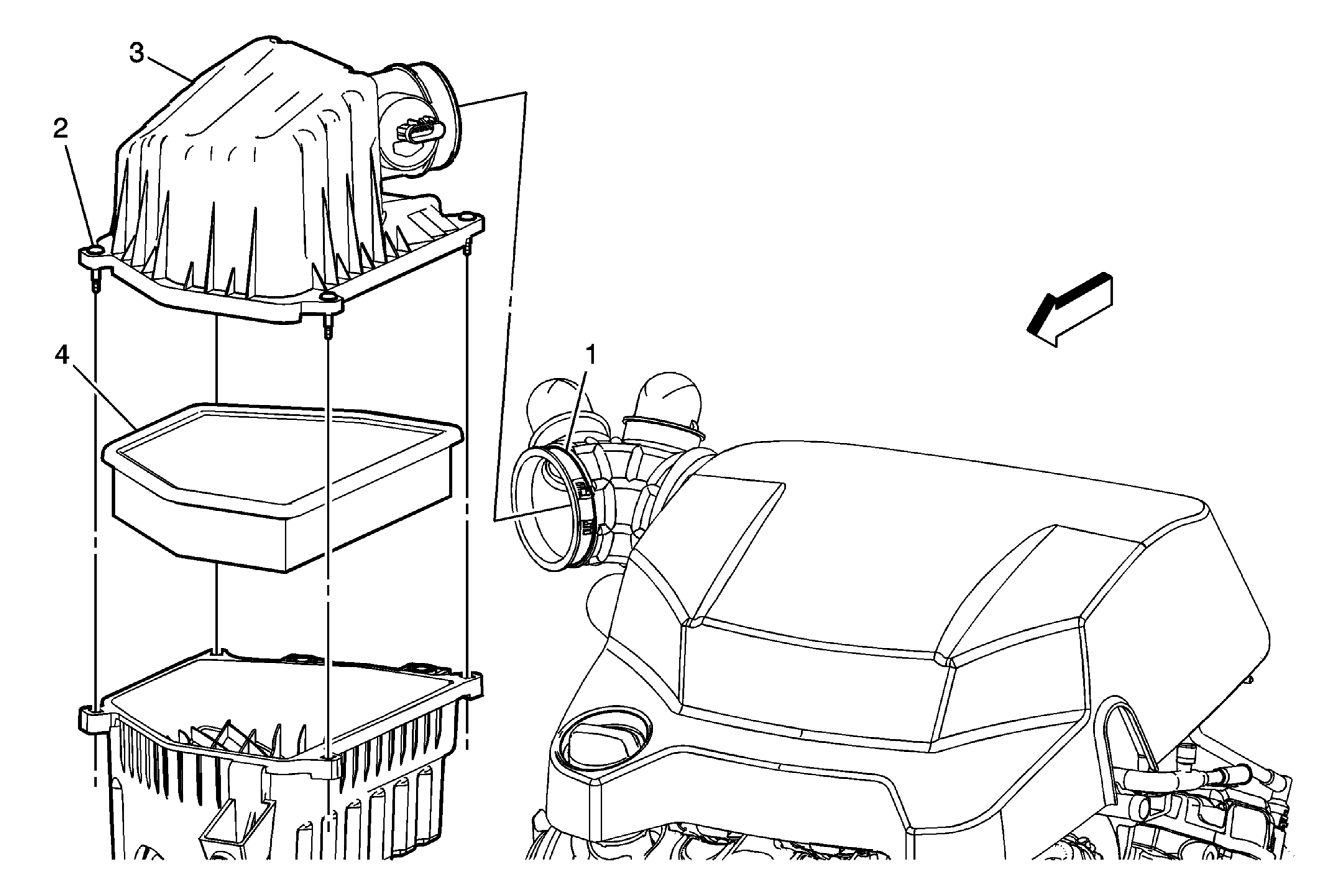

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Cleaner Outlet Duct Clamp CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Air Cleaner Assembly Upper Housing Screw (Qty: 4) Tighten: 3 N.m (27 lb in)
3	Air Cleaner Assembly Upper Housing Procedure: Disconnect the MAF/IAT Sensor Electrical Connector.
4	Air Cleaner Element
