Engine Controls Schematics

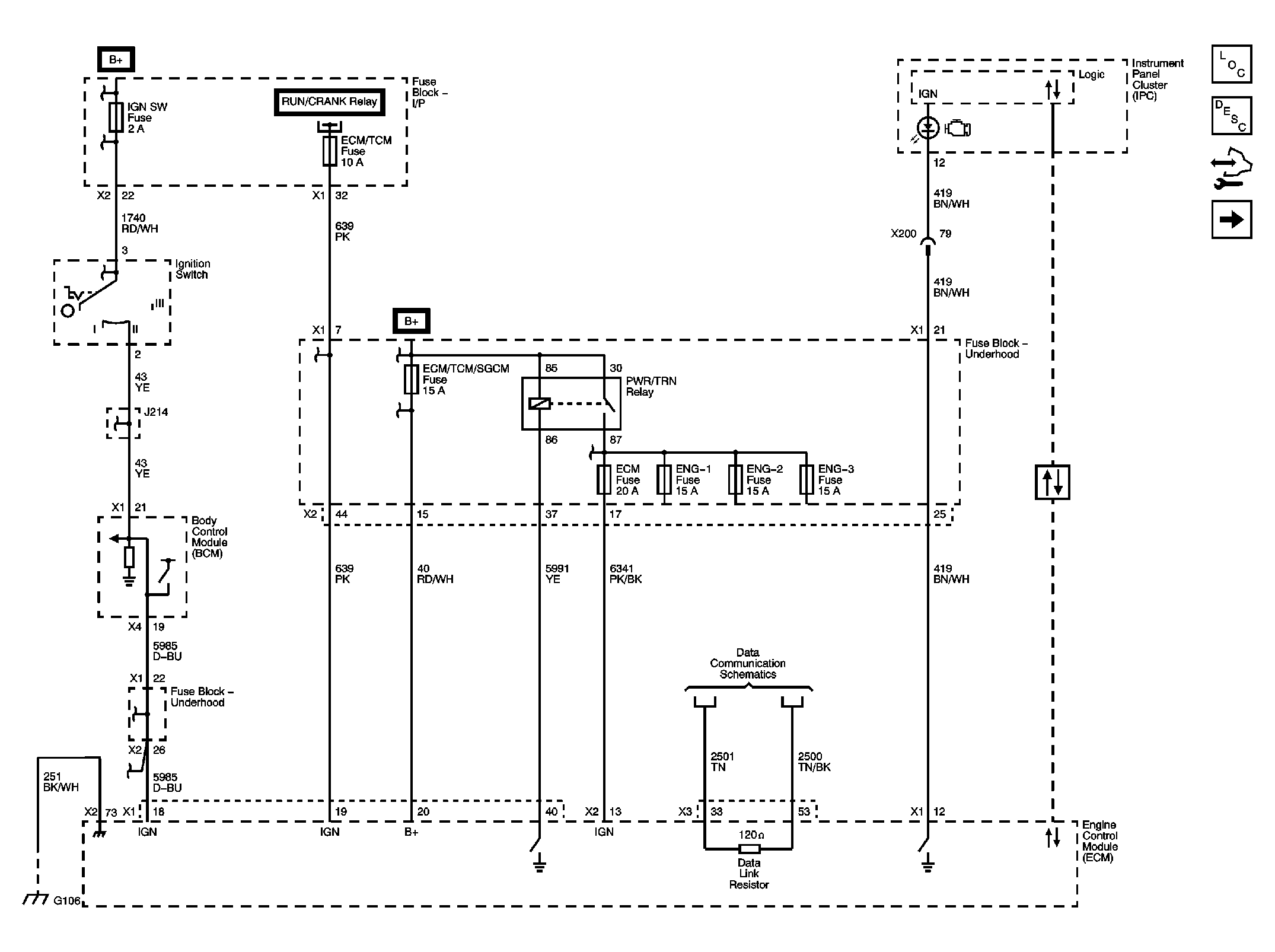

Fig 1: Module Power, Ground, Serial Data and MIL (LY7)

Courtesy of GENERAL MOTORS CORP.

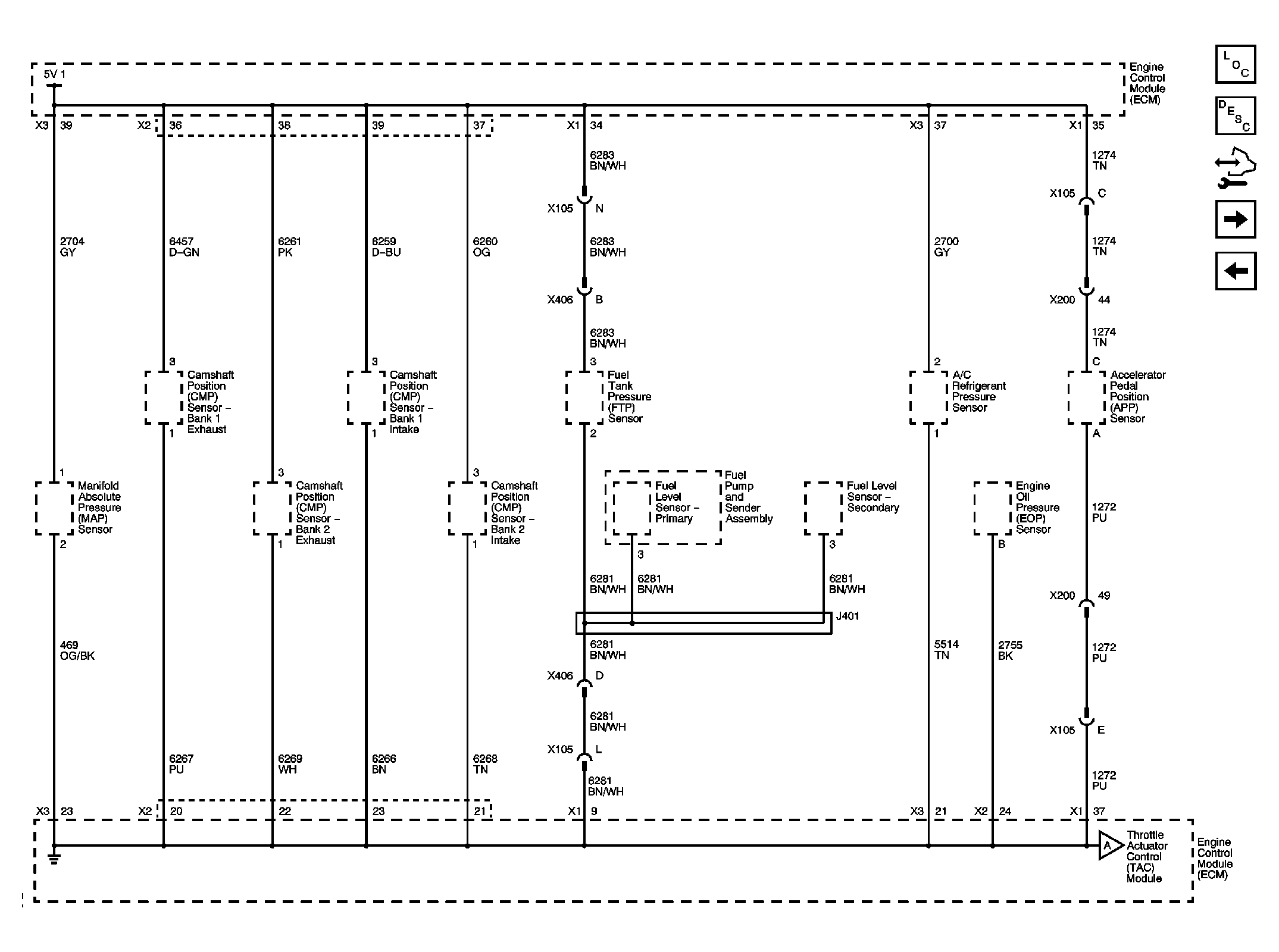

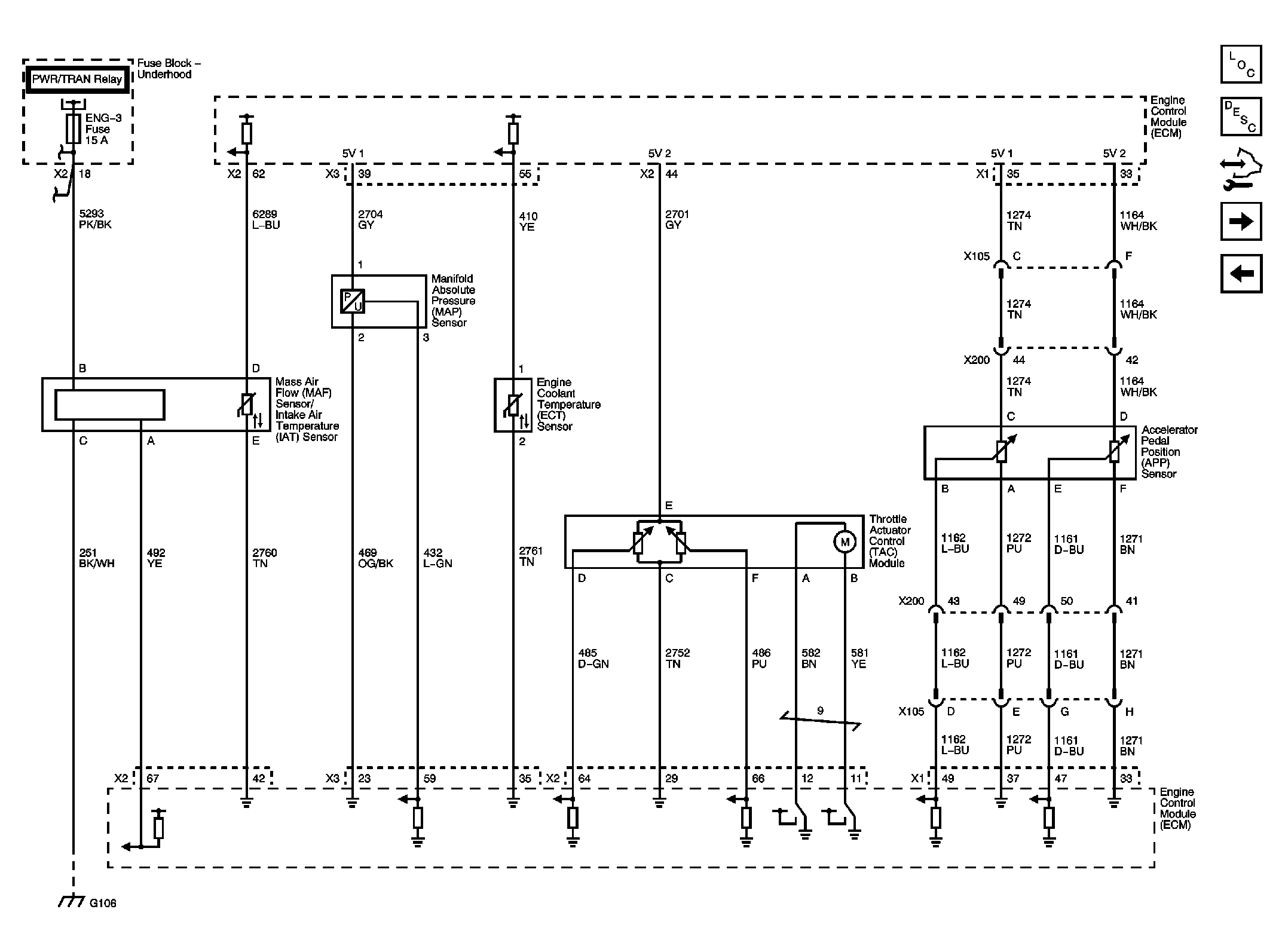

Fig 2: Engine Data Sensors - 5-Volt 1 and Low Reference (LY7)

Courtesy of GENERAL MOTORS CORP.

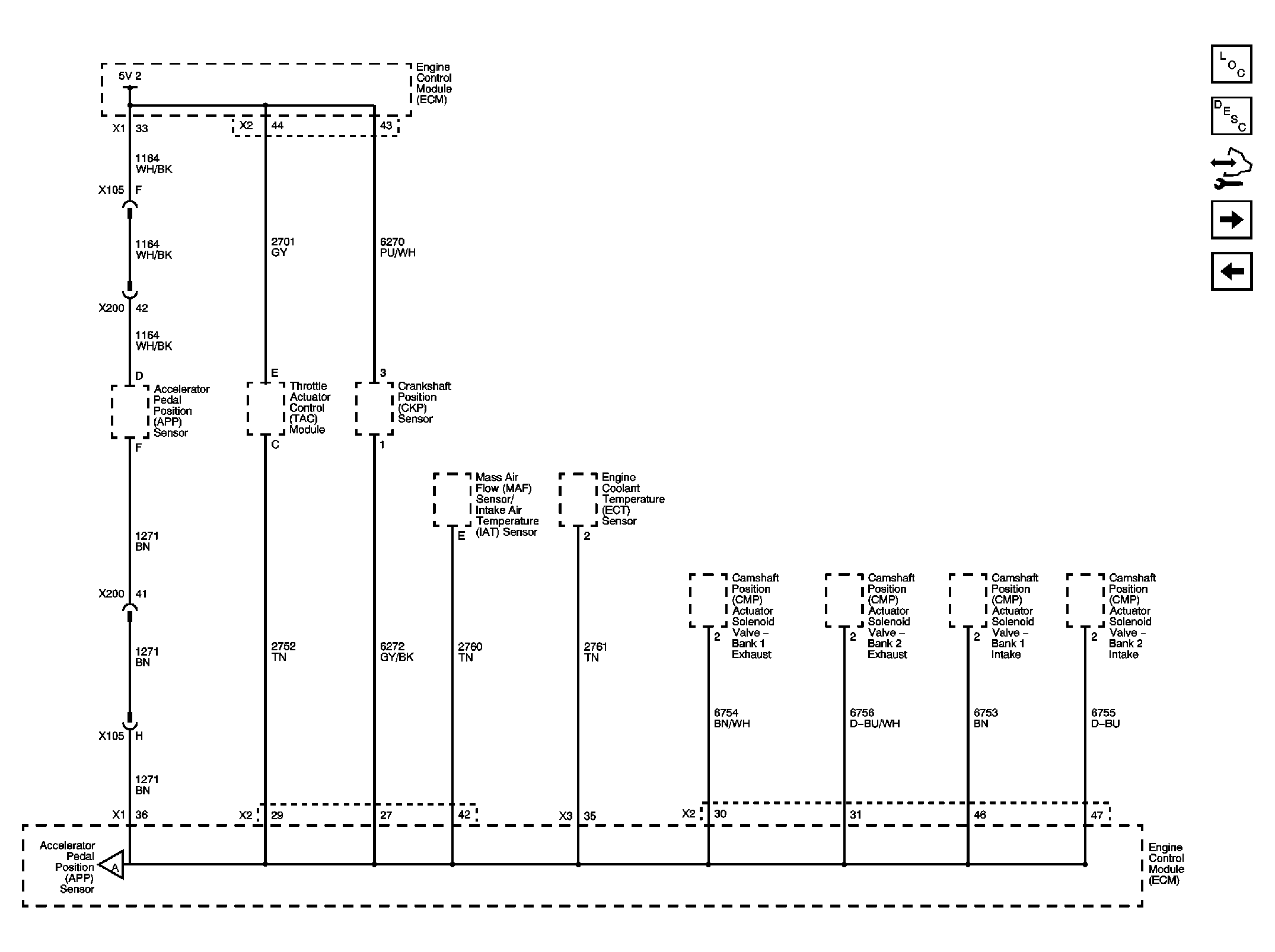

Fig 3: Engine Data Sensors - 5-Volt 2 and Low Reference (LY7)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Pressure, Temperature (LY7)

Courtesy of GENERAL MOTORS CORP.

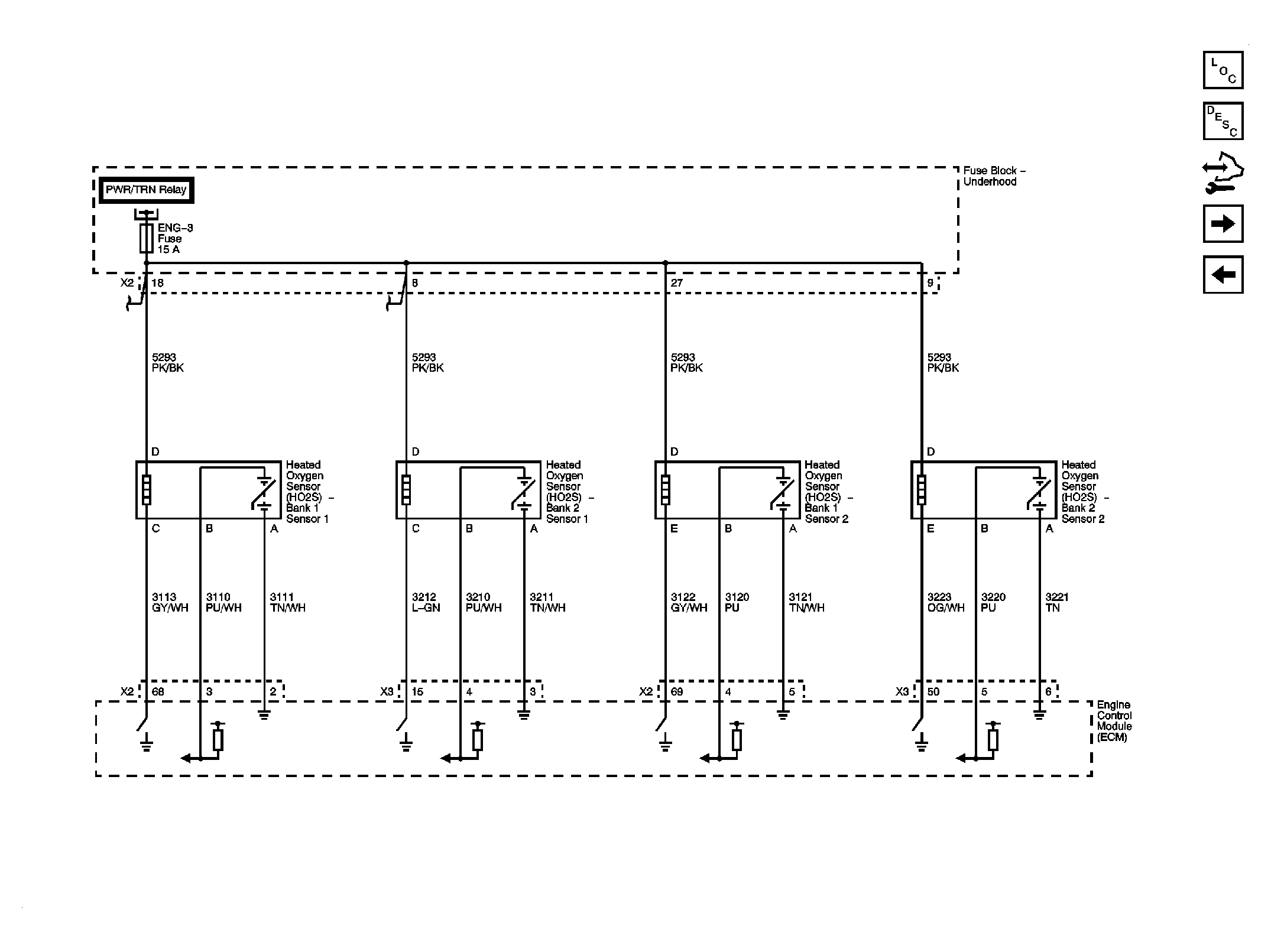

Fig 5: Engine Data Sensors - Heated Oxygen Sensors (HO2S) (LY7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Ignition System Coils Bank 1 (LY7)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Ignition Controls - Ignition System Coils Bank 2 (LY7)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls - Crankshaft Position (CKP) and Knock (KS) Sensors (LY7)

Courtesy of GENERAL MOTORS CORP.

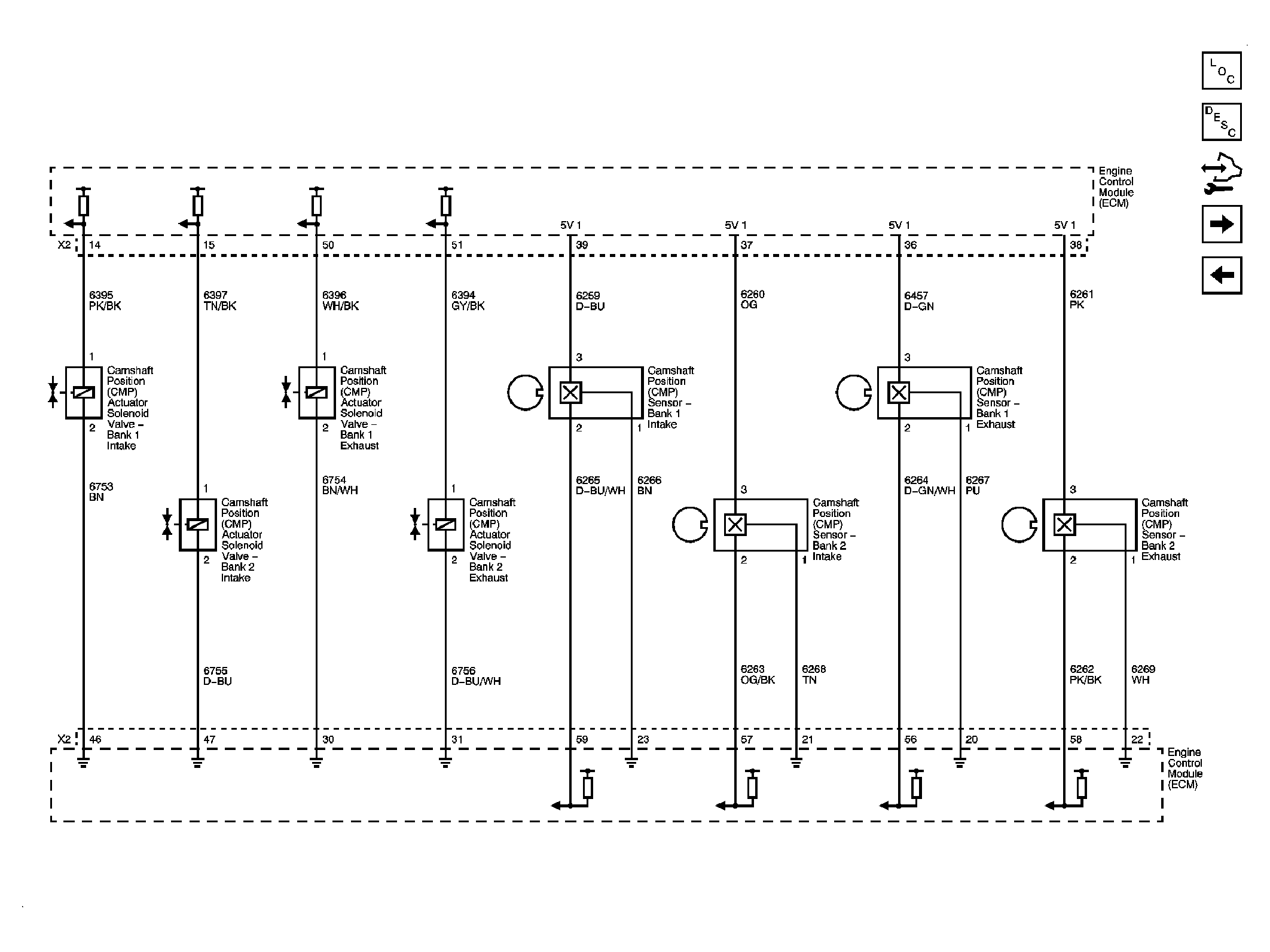

Fig 9: Ignition Controls - Camshaft Position (CMP) Sensors and Actuator Solenoids (LY7)

Courtesy of GENERAL MOTORS CORP.

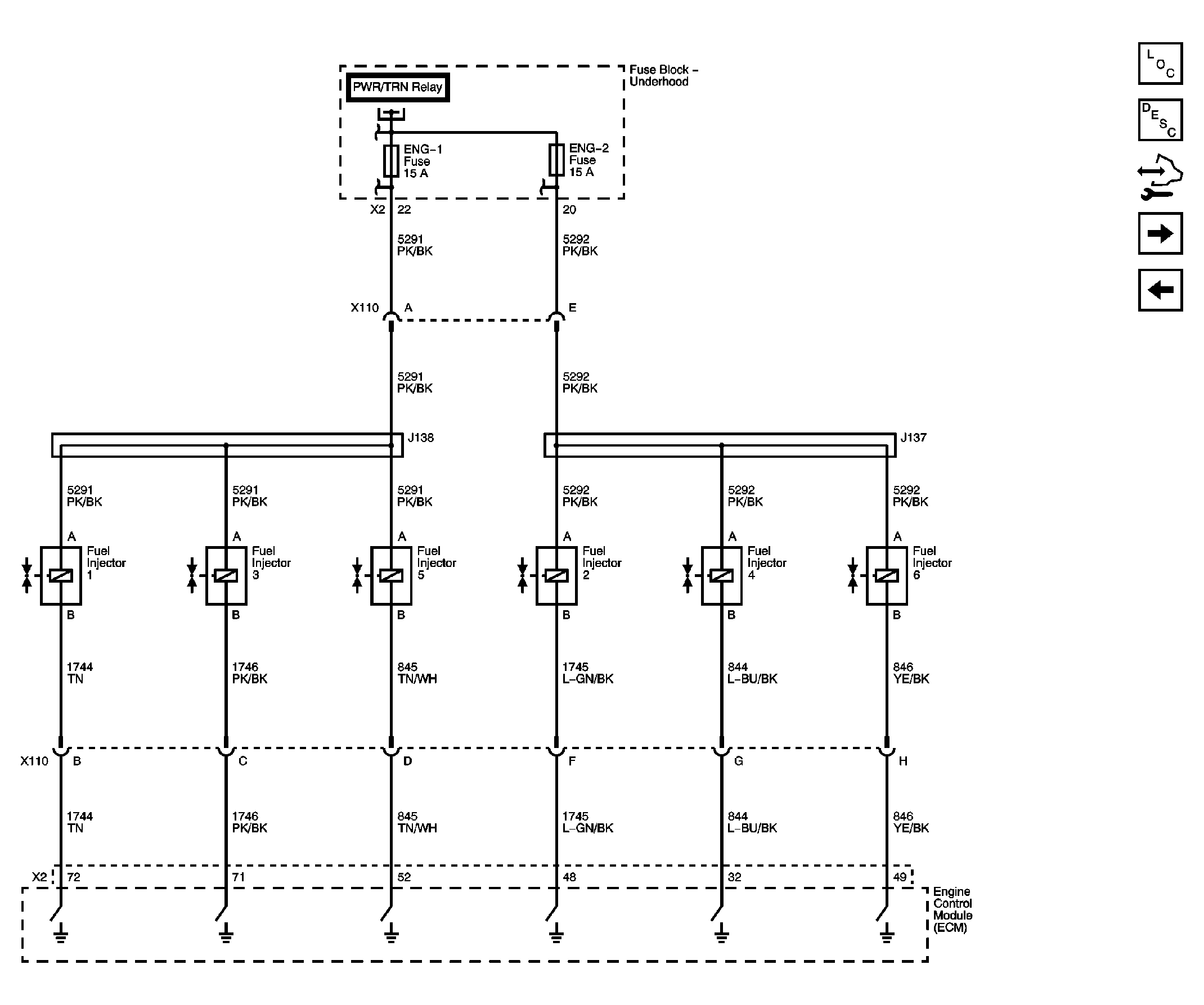

Fig 10: Fuel Controls - Fuel Injectors (LY7)

Courtesy of GENERAL MOTORS CORP.

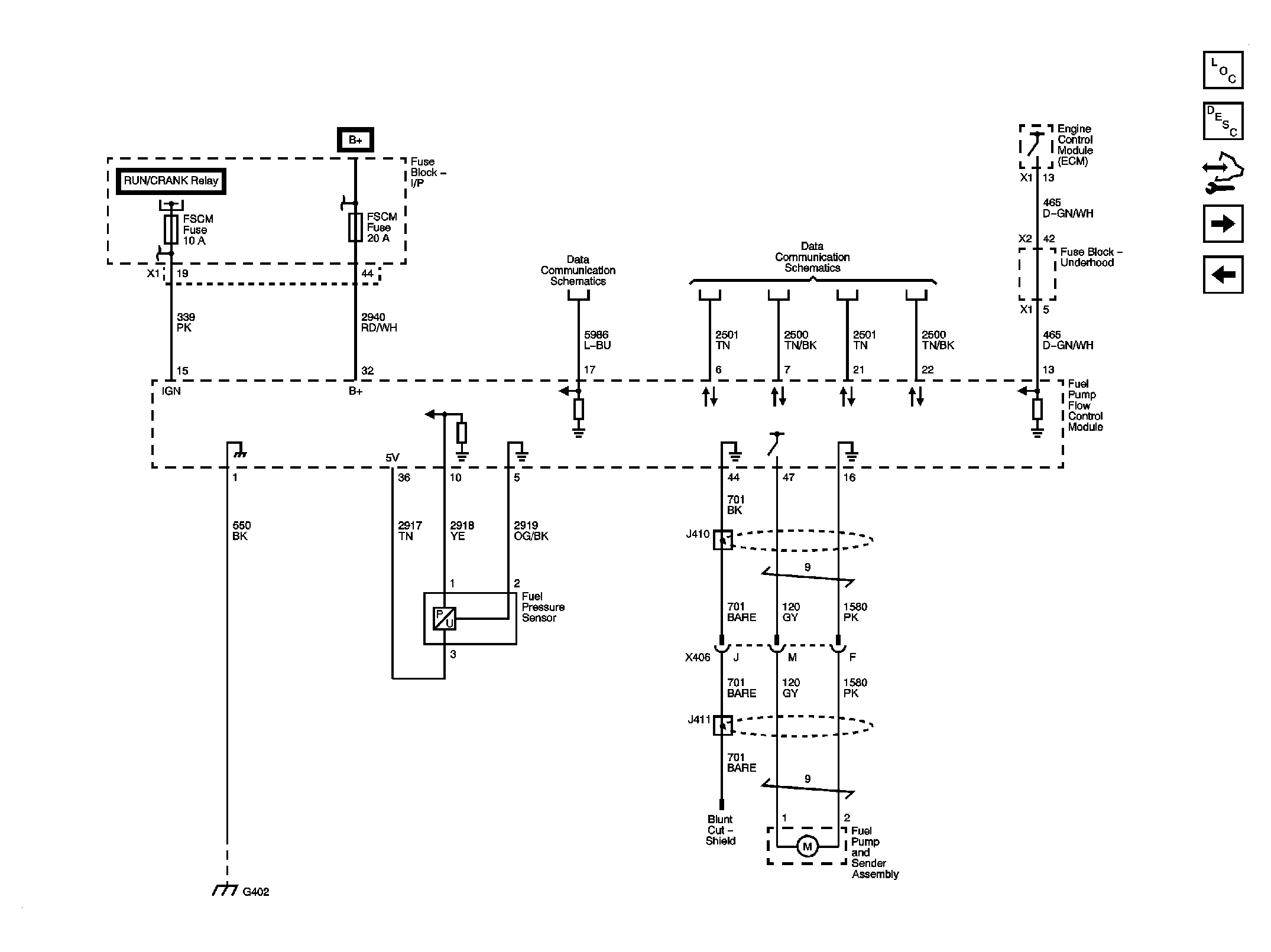

Fig 11: Fuel Controls - Fuel Pump Controls (LY7)

Courtesy of GENERAL MOTORS CORP.

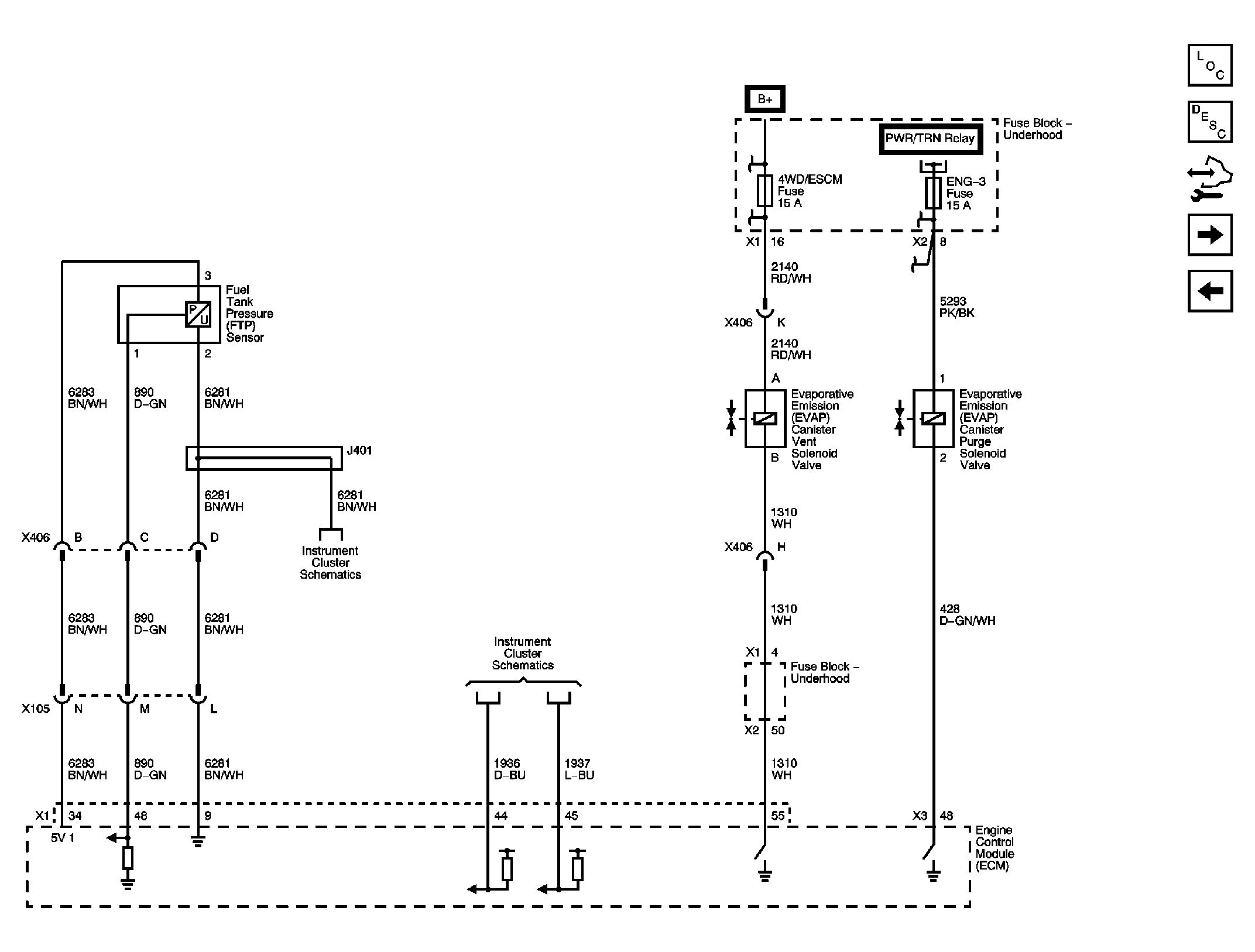

Fig 12: Fuel Controls - Evaporative Emissions (EVAP) Controls (LY7)

Courtesy of GENERAL MOTORS CORP.

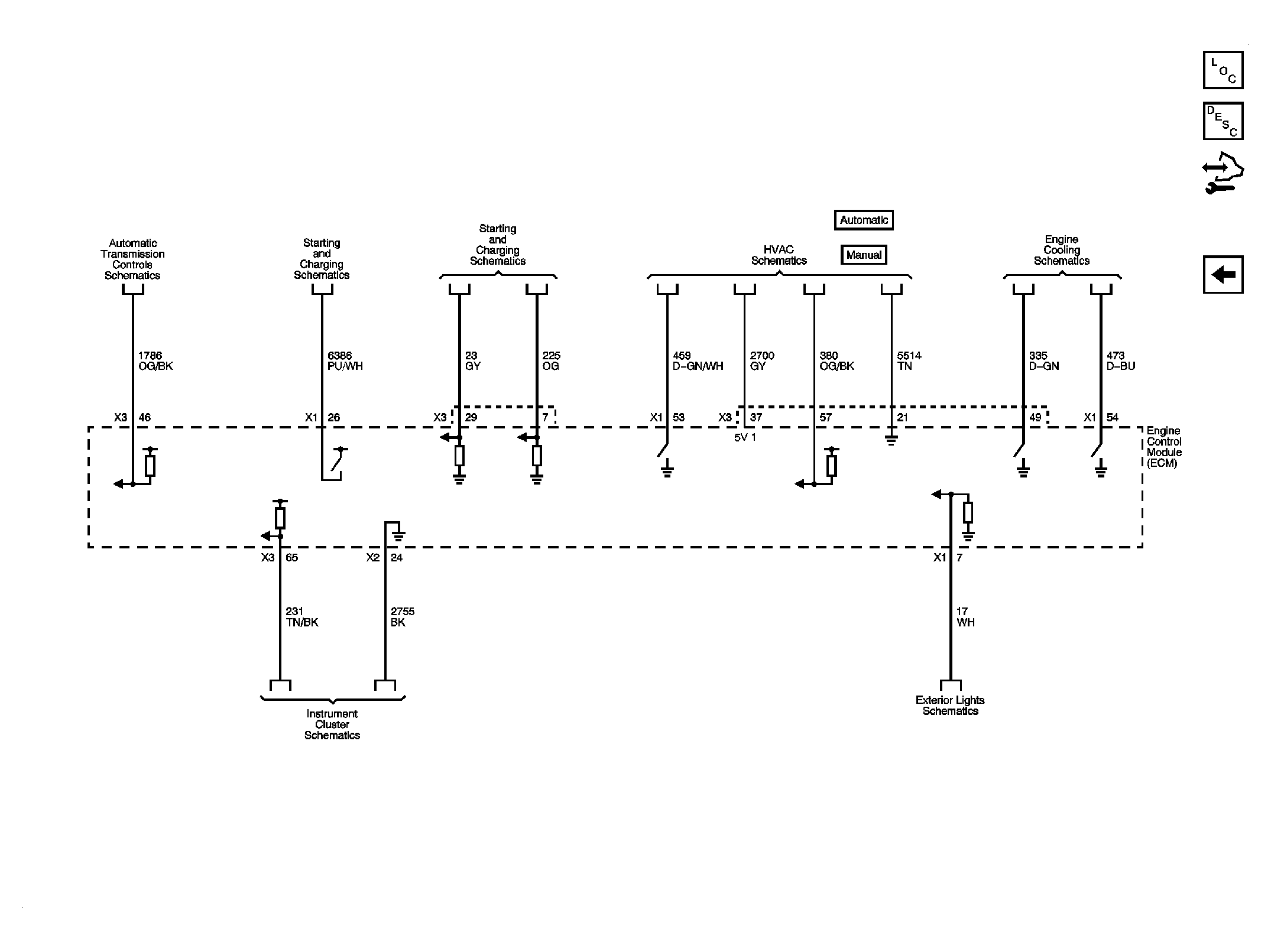

Fig 13: Controlled/Monitored Subsystem References (LY7)

Courtesy of GENERAL MOTORS CORP.
