Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Saturn Outlook, 2008 GMC Acadia, and 2008 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radio Antennas, Data Communication, Lighting, Power, and Vehicle Speed Signal

Courtesy of GENERAL MOTORS CORP.

Fig 2: Audio Amplifier Power, Ground, and All Audio Inputs - UQG, Front and Rear Audio Inputs - UQA/UQS

Courtesy of GENERAL MOTORS CORP.

Fig 3: Audio Amplifier Power, Ground, and All Audio Inputs - UQG+UK6, Front and Rear Audio Inputs - UQA/UQS+UK6

Courtesy of GENERAL MOTORS CORP.

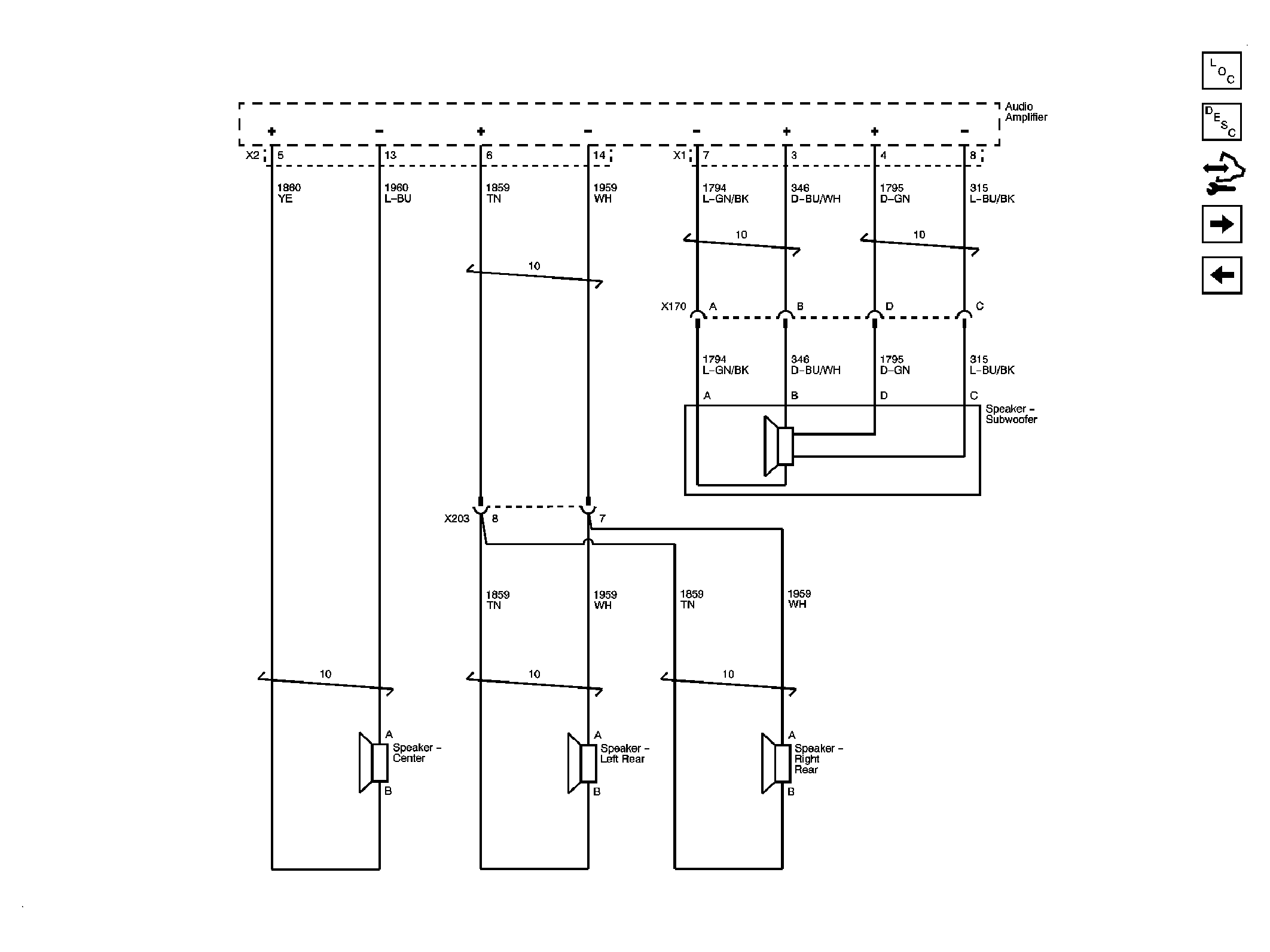

Fig 4: Audio Amplifier Center and Subwoofer Audio Inputs - UQS

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speakers - UQF

Courtesy of GENERAL MOTORS CORP.

Fig 6: Speakers - UQF+UK6

Courtesy of GENERAL MOTORS CORP.

Fig 7: Door and A-Pillar Speakers - UQA/UQG/UQS

Courtesy of GENERAL MOTORS CORP.

Fig 8: Except Door and A-Pillar Speakers - UQA/UQS

Courtesy of GENERAL MOTORS CORP.

Fig 9: Except Door Speakers - UQG

Courtesy of GENERAL MOTORS CORP.

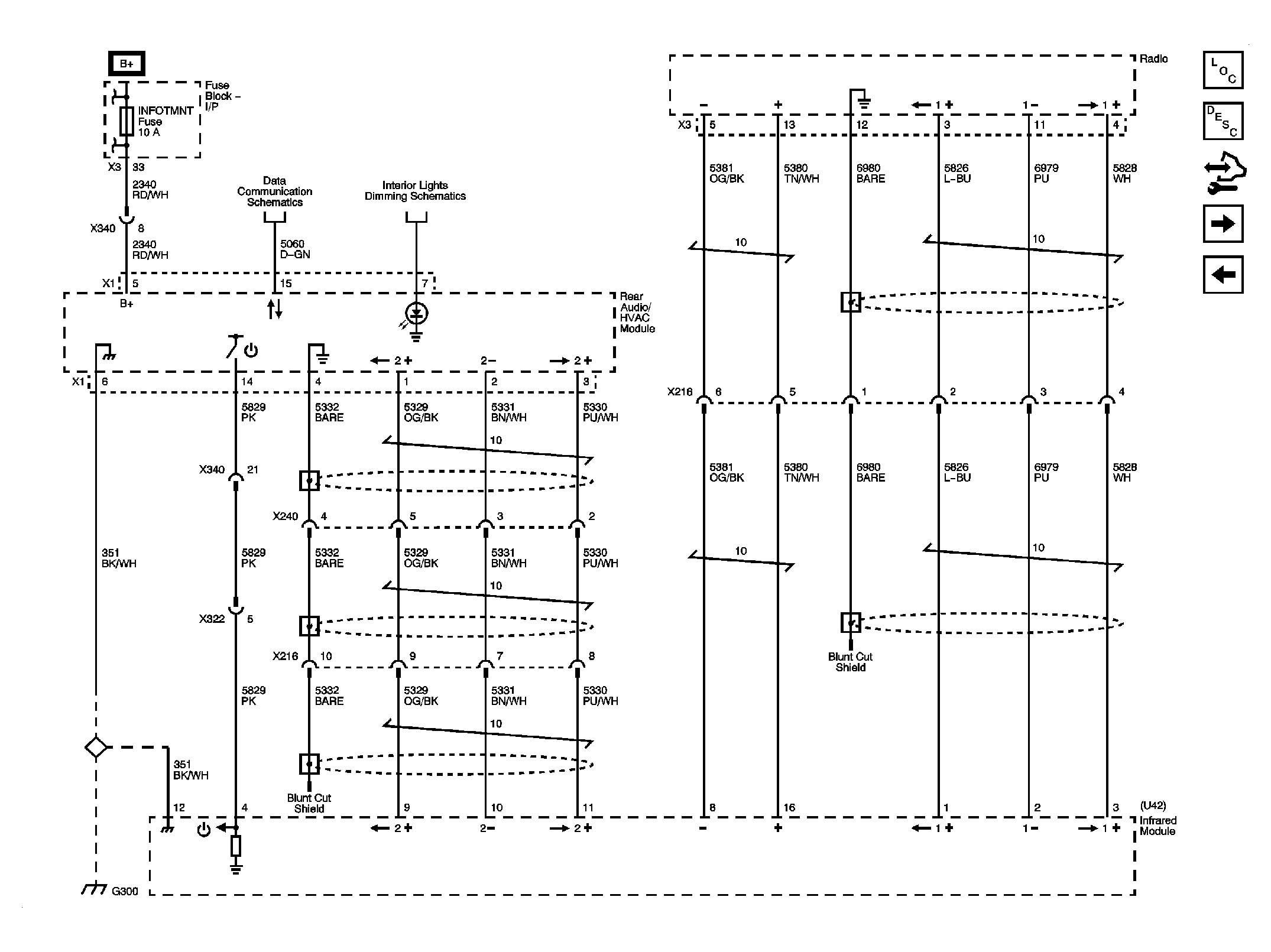

Fig 10: Rear Audio/HVAC Module Power, Ground, Lighting, Data Communication, and Infrared Module

Courtesy of GENERAL MOTORS CORP.

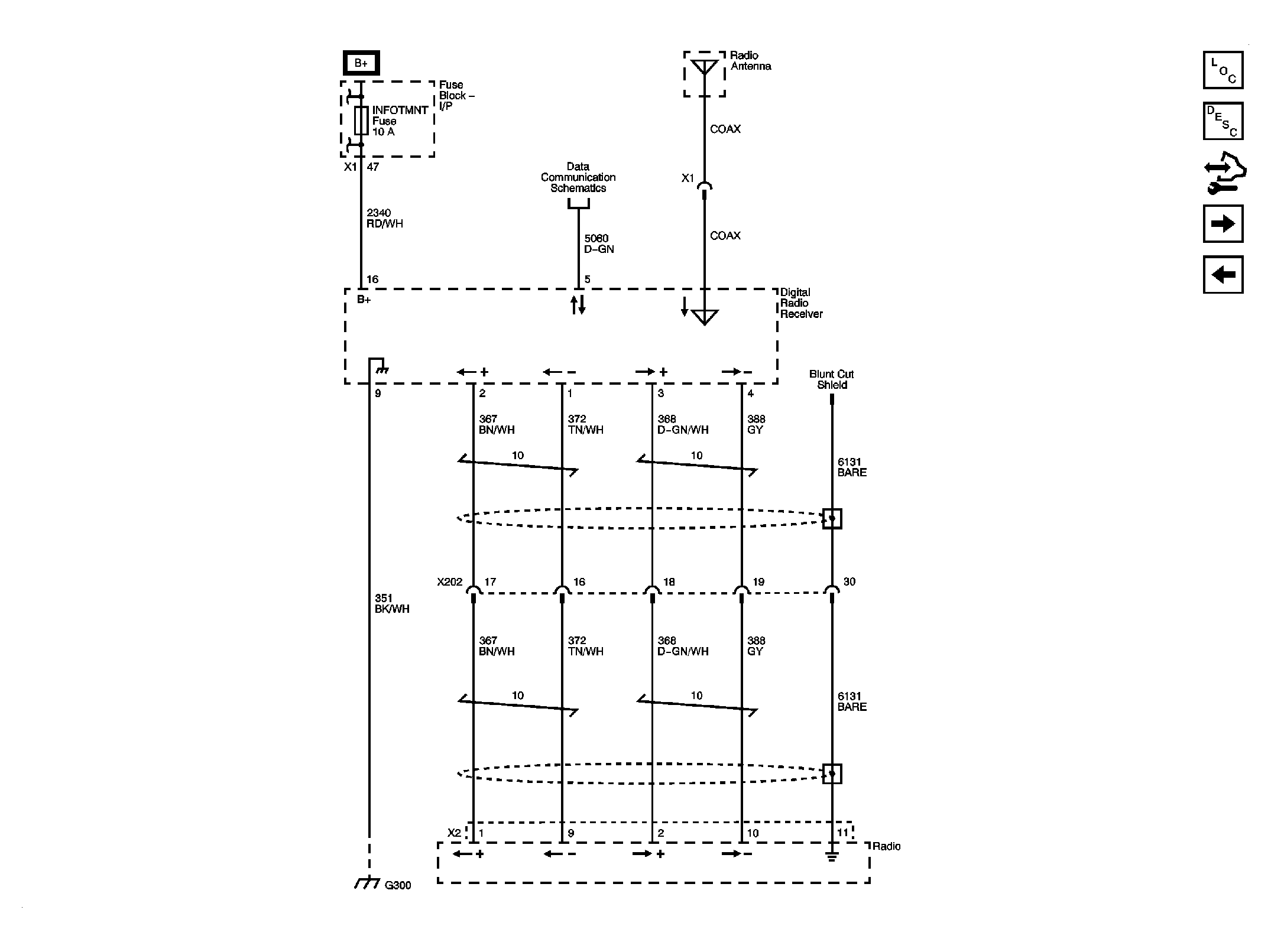

Fig 11: XM Radio - U2K

Courtesy of GENERAL MOTORS CORP.

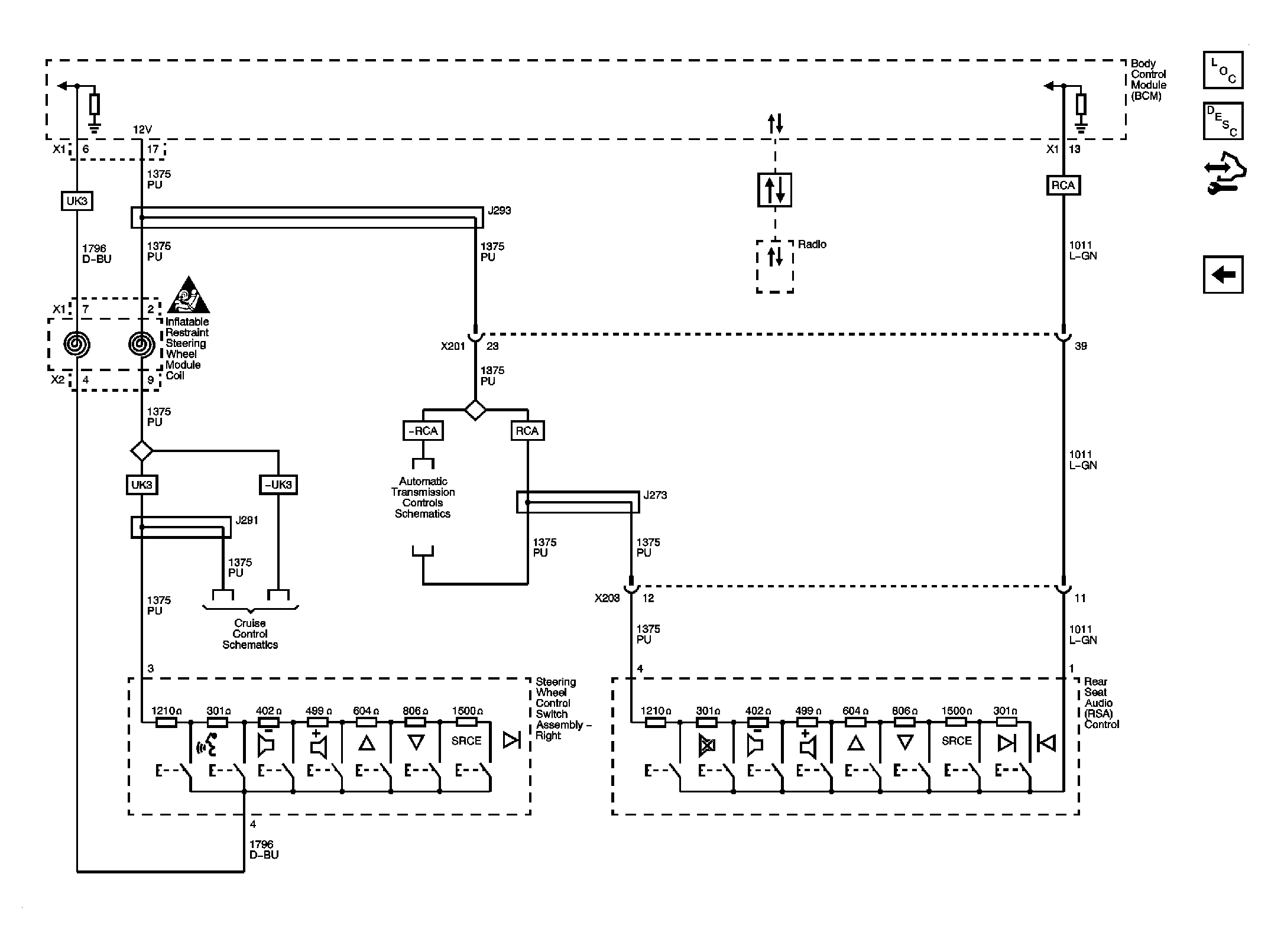

Fig 12: Secondary Controls

Courtesy of GENERAL MOTORS CORP.
