Remote Function Schematics
WARNING:
This page is about a different car, the 2008 Saturn Outlook, 2008 GMC Acadia, and 2008 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

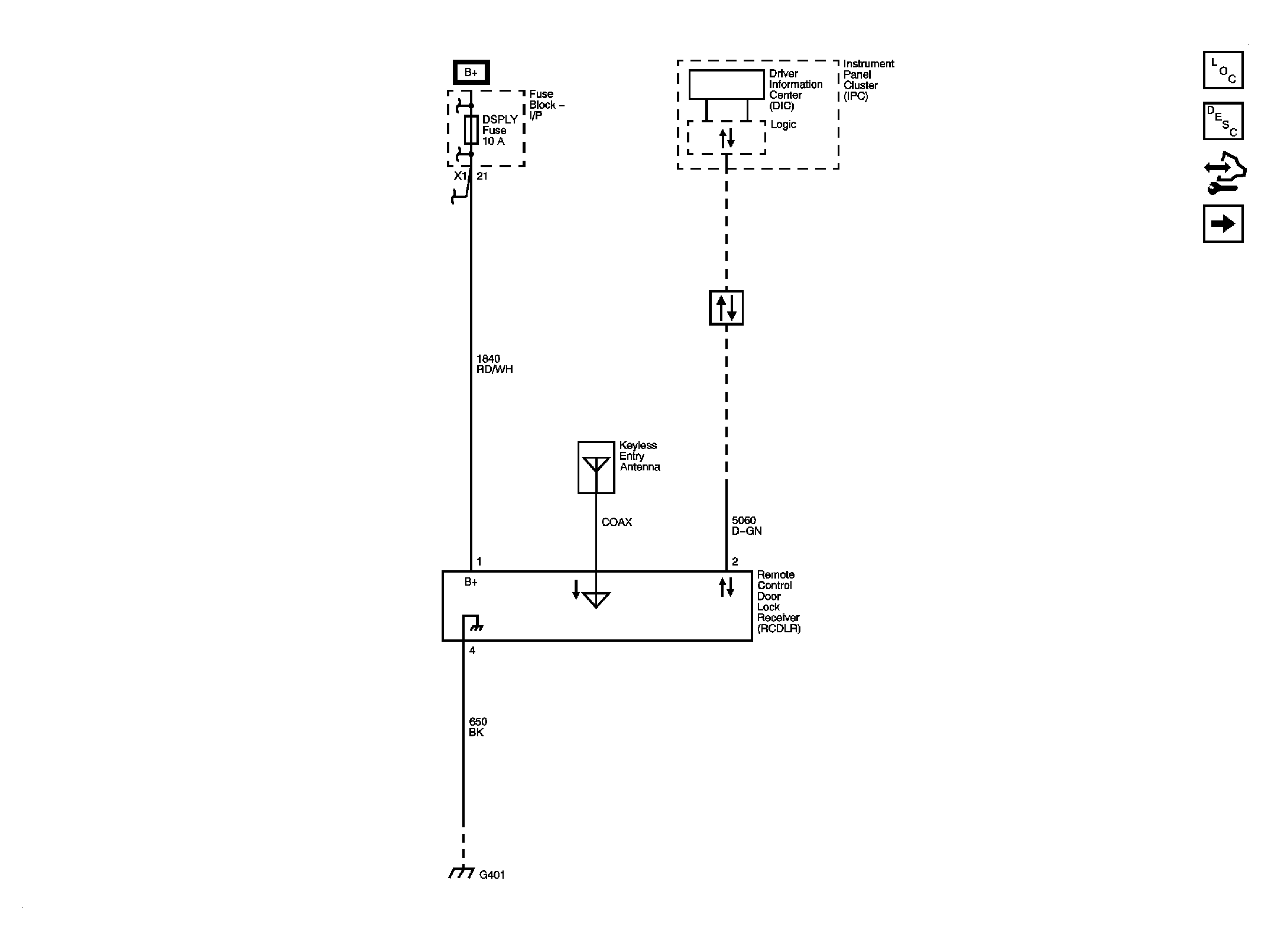

Fig 1: Keyless Entry - AP3/AP8
Courtesy of GENERAL MOTORS CORP.

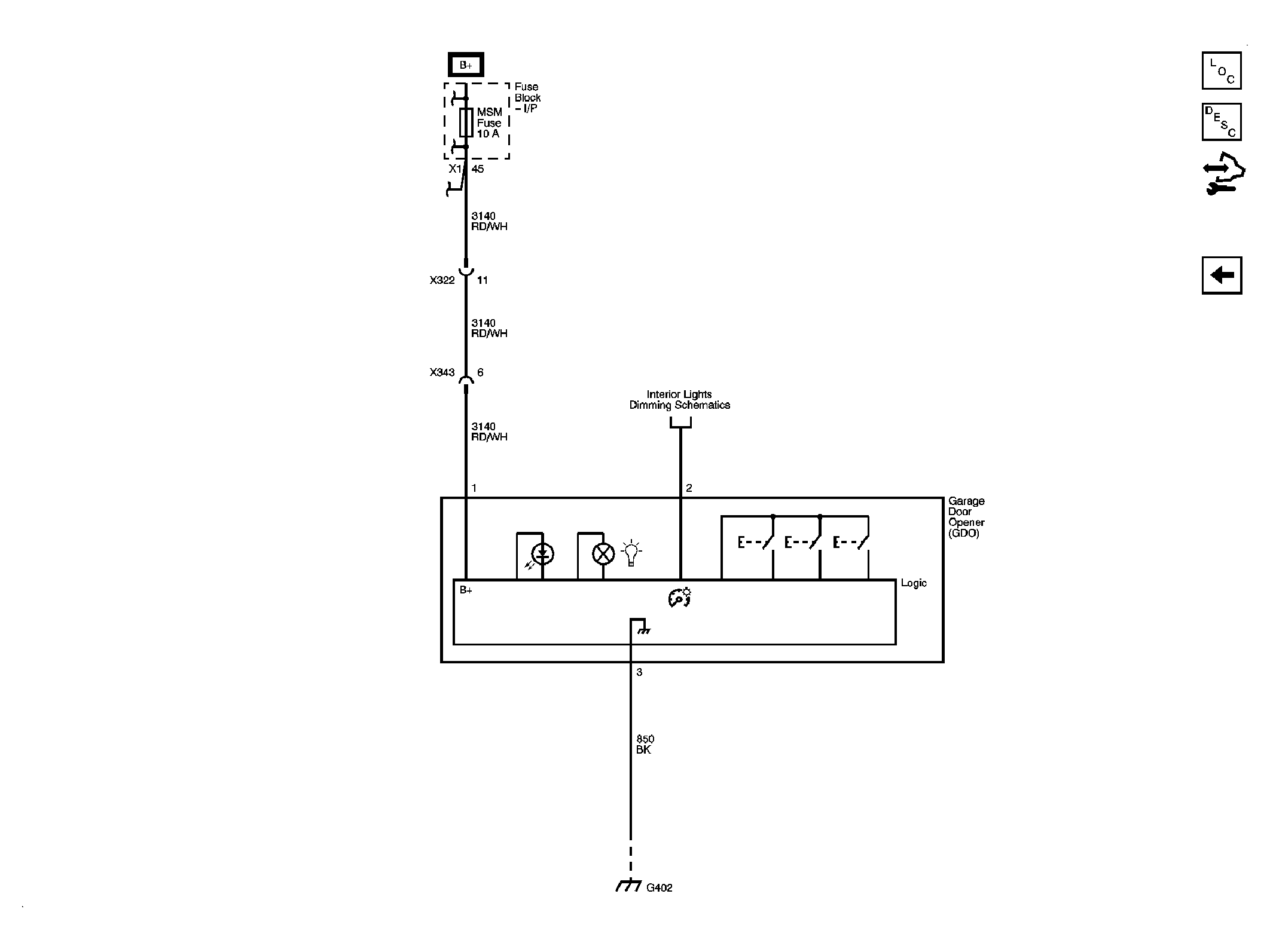

Fig 2: Garage Door Opener - UG1
Courtesy of GENERAL MOTORS CORP.
