Video System Schematics
WARNING:
This page is about a different car, the 2008 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

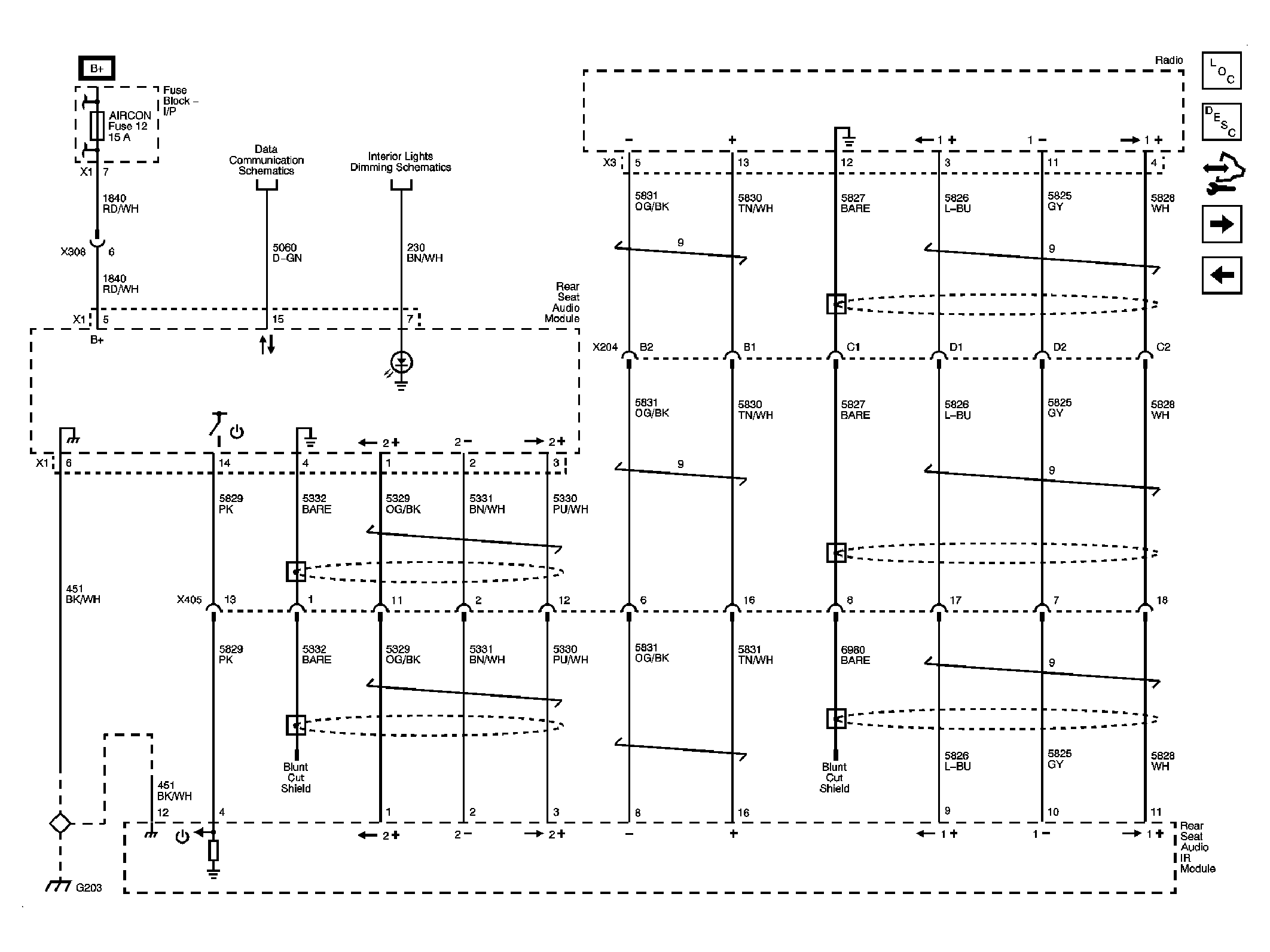

Fig 1: Rear Video/Audio Power, Grounds, Data Communications And Infrared Module - Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Seat Video Display - Schematic
Courtesy of GENERAL MOTORS CORP.
