Vehicle Yaw Sensor with Vehicle Lateral Accelerometer Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

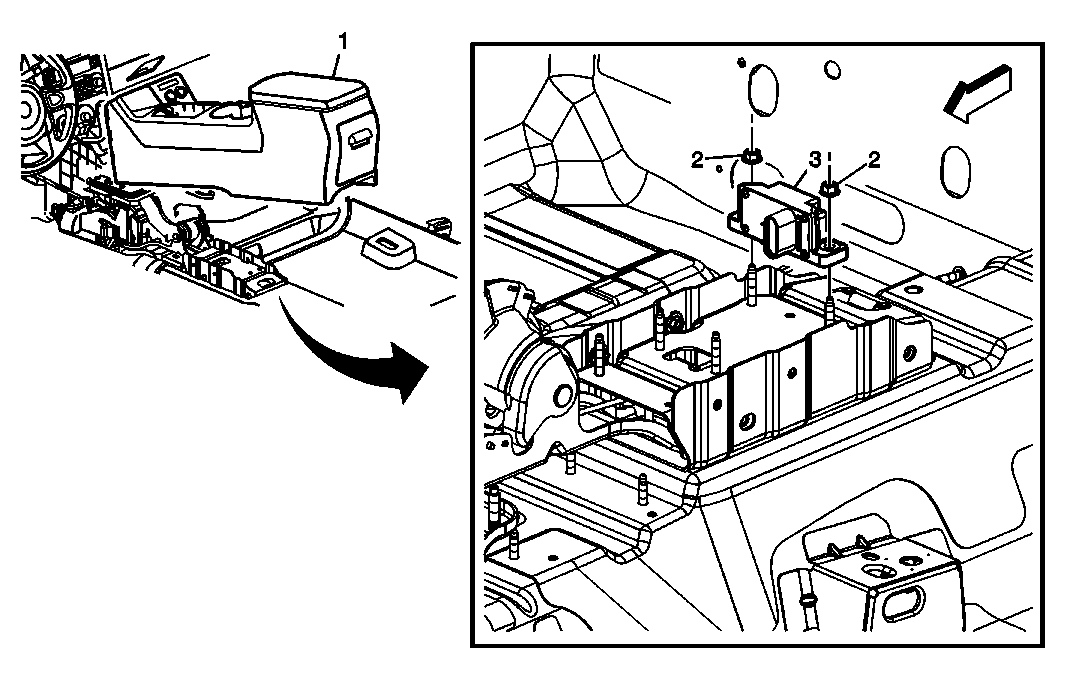

Fig 1: View Of Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Console Refer to Front Floor Console Replacement .
2	Vehicle Yaw Sensor Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
3	Vehicle Yaw Sensor Assembly Procedure Disconnect the electrical connector. On non-hybrid vehicles, after the installation is complete, reset the yaw rate sensor using the following procedure: Install a scan tool. Using the special functions menu on the scan tool, reset the yaw rate sensor.

Callout

Component Name

Front Floor Console
Refer to Front Floor Console Replacement .

Vehicle Yaw Sensor Nuts (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Vehicle Yaw Sensor Assembly

Procedure

Disconnect the electrical connector.
On non-hybrid vehicles, after the installation is complete, reset the yaw rate sensor using the following procedure:
- Install a scan tool.
- Using the special functions menu on the scan tool, reset the yaw rate sensor.
