Accessory and Liftgate Control Module Replacement

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

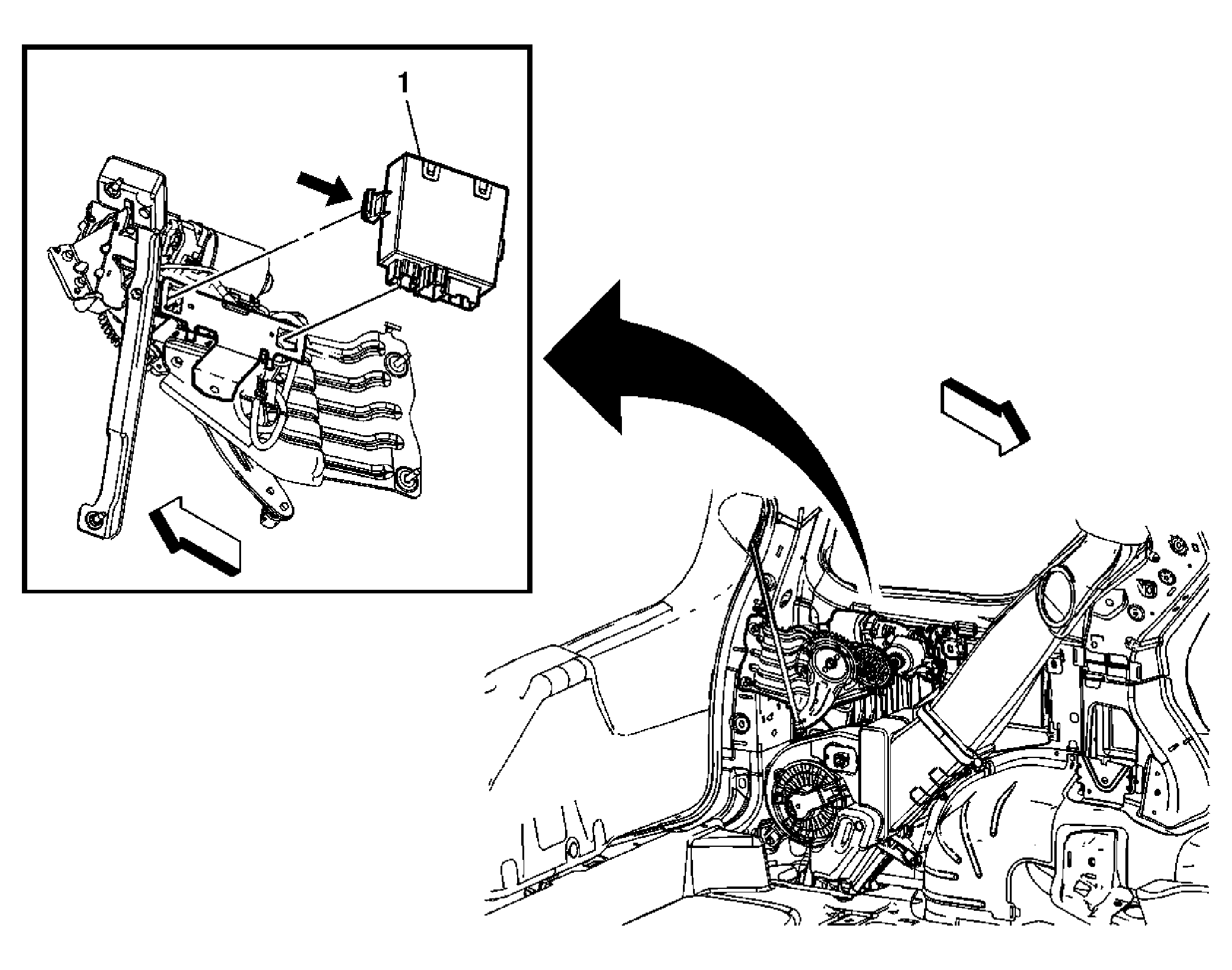

Fig 1: View Of Accessory and Liftgate Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the body side trim panel. Refer to Body Side Rear Trim Panel Replacement (w/o TB5) or Body Side Rear Trim Panel Replacement (w/TB5) .
1	Accessory and Liftgate Control Module Procedure Disconnect the electrical connectors Reprogram the accessory and liftgate control module if replaced. Refer to Control Module References Tip The liftgate control module is located behind the liftgate close actuator assembly Push in the tab to release the module from the liftgate actuator bracket

Callout

Component Name

Preliminary Procedure:
Remove the body side trim panel. Refer to Body Side Rear Trim Panel Replacement (w/o TB5) or Body Side Rear Trim Panel Replacement (w/TB5) .

Accessory and Liftgate Control Module

Procedure

Disconnect the electrical connectors
Reprogram the accessory and liftgate control module if replaced. Refer to Control Module References

Tip

The liftgate control module is located behind the liftgate close actuator assembly
Push in the tab to release the module from the liftgate actuator bracket
