Courtesy Lamp Switch - Console

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

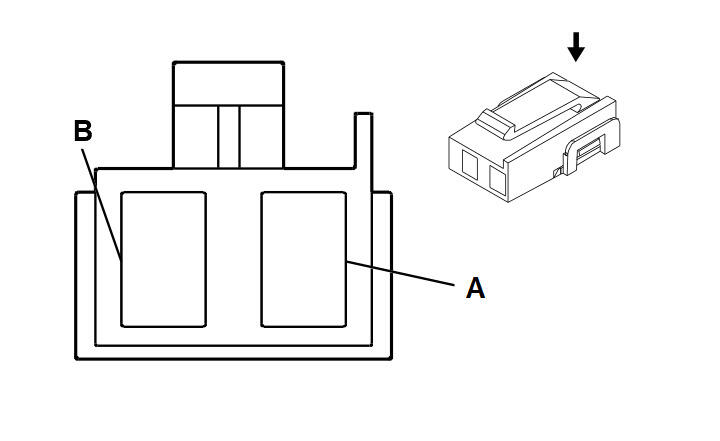

Fig 1: Courtesy Lamp Switch - Console Connector End View

Courtesy of GENERAL MOTORS CORP.

Courtesy Lamp Switch - Console Connector Parts Information

Connector Part Information

OEM: 12015197
Service: 12102626
Description: 2-Way F Metri-Pack 280 Series (BU)

Terminal Part Information

Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Courtesy Lamp Switch - Console Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	PU	635	Console Lamp Supply Voltage
B	BK	1550	Ground
