Hazard Switch

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

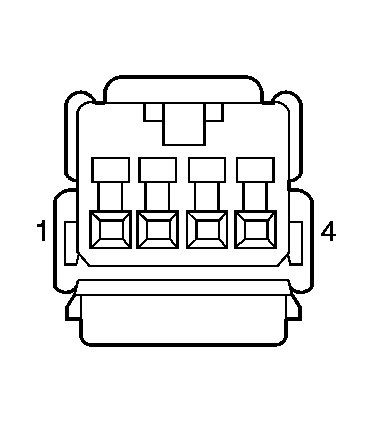

Fig 1: Hazard Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Hazard Switch Connector Parts Information

Connector Part Information

OEM: 15364004
Service: 88953314
Description: 4-Way F (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Hazard Switch Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	TN	2144	Hazard Switch Signal
2	BK	1450	Ground
3	GY/BK	1458	Instrument Panel Lamp Supply Voltage
4	BN	27	Hazard Flasher Signal
