Turn Signal Multifunction Switch Replacement

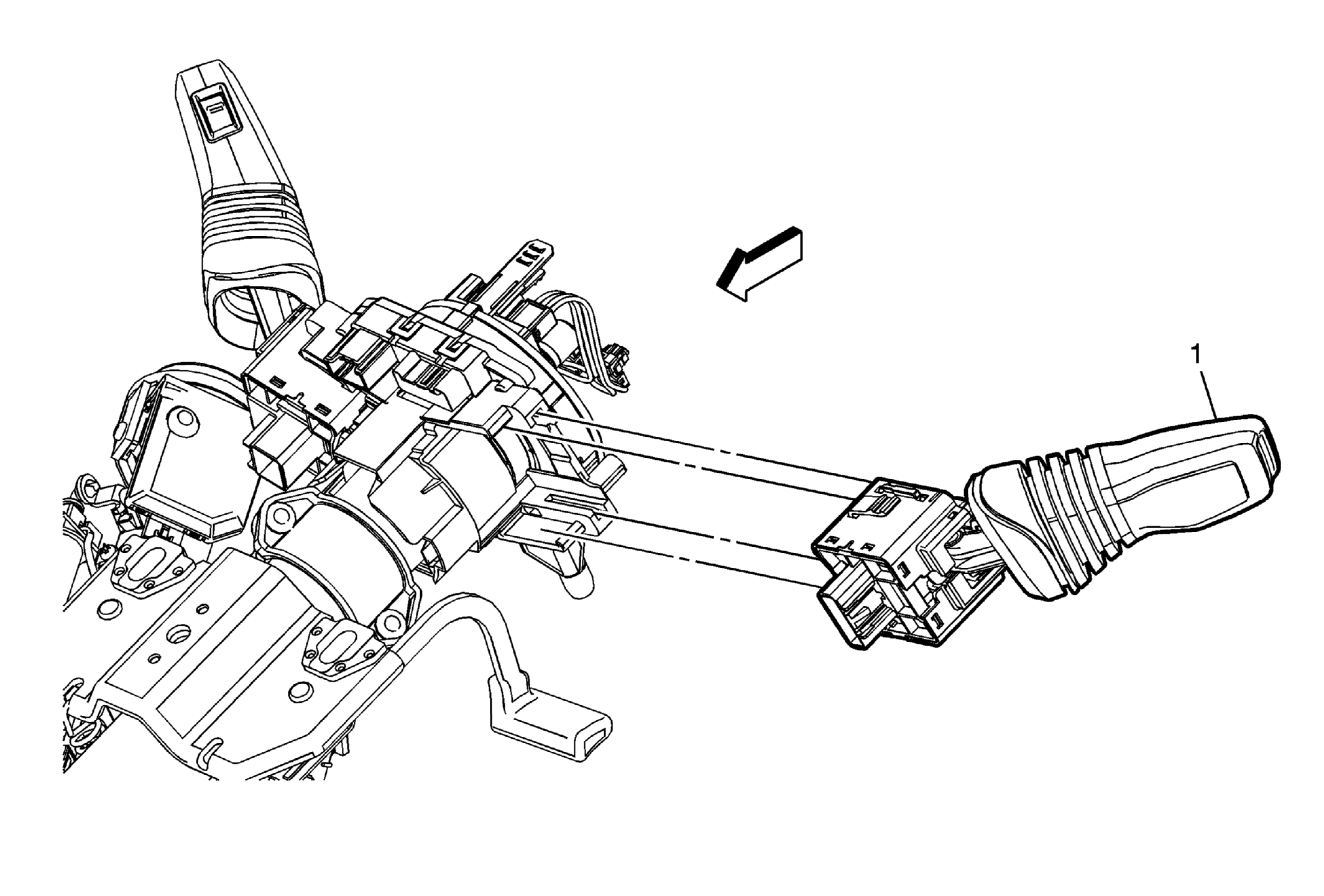

Fig 1: Turn Signal Multifunction Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors as needed. Depress the locking tabs and pull on the turn signal multifunction switch to remove it.

Callout

Component Name

Preliminary Procedure:
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

Turn Signal Multifunction Switch

Procedure

Disconnect any electrical connectors as needed.
Depress the locking tabs and pull on the turn signal multifunction switch to remove it.
