Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

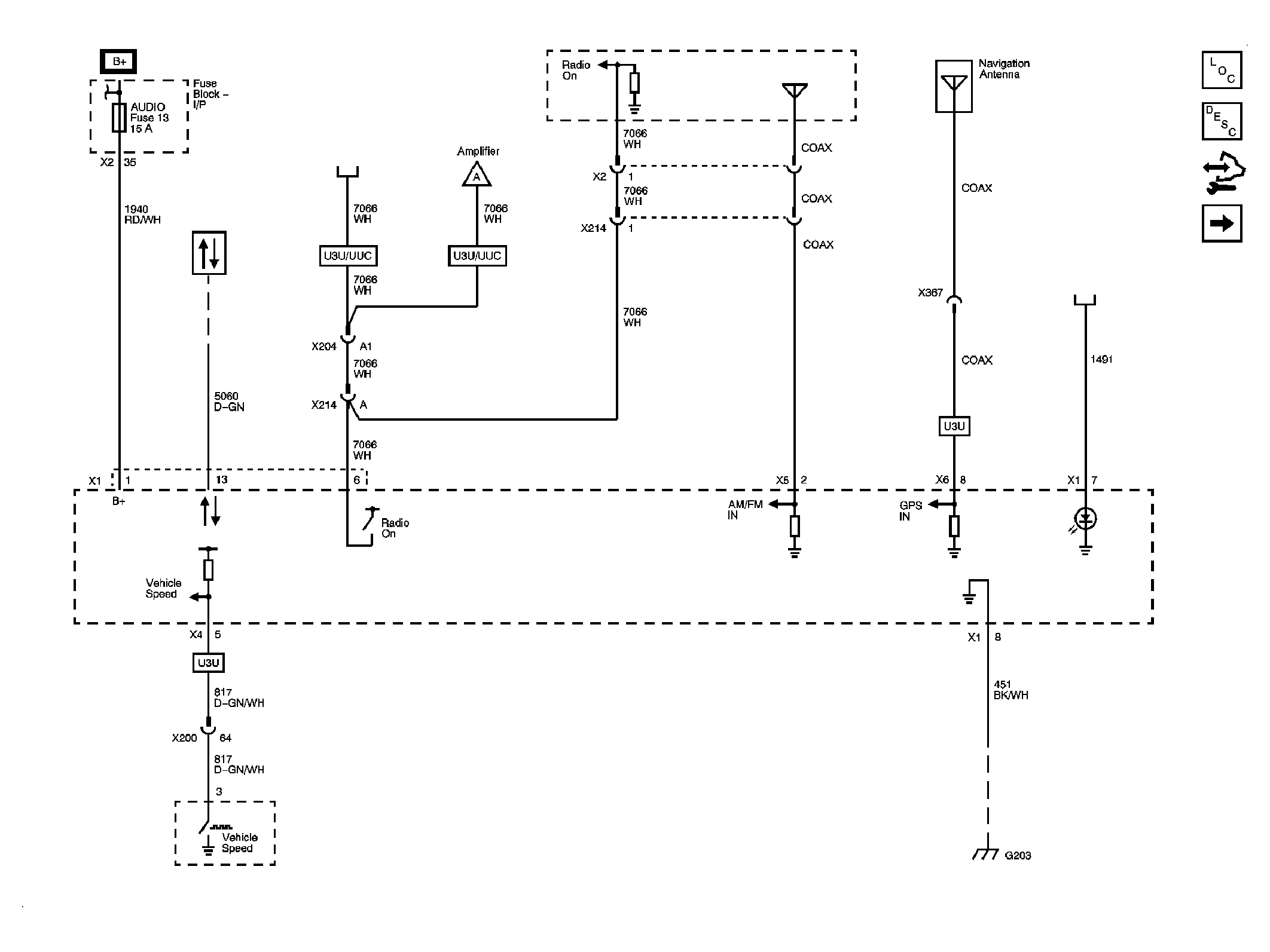

Fig 1: Radio - Schematic

Courtesy of GENERAL MOTORS CORP.

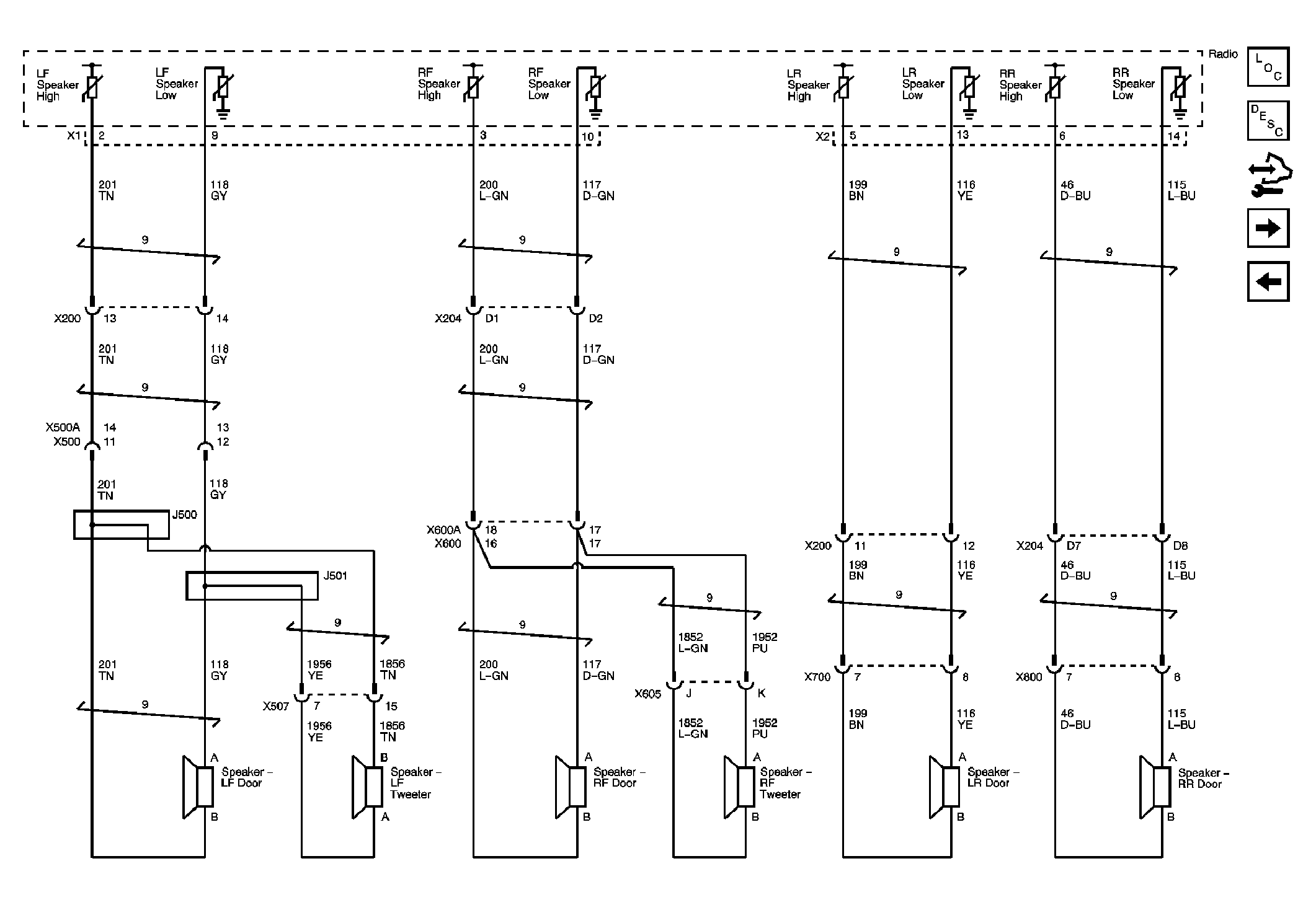

Fig 2: Speakers (UW6) - Schematic

Courtesy of GENERAL MOTORS CORP.

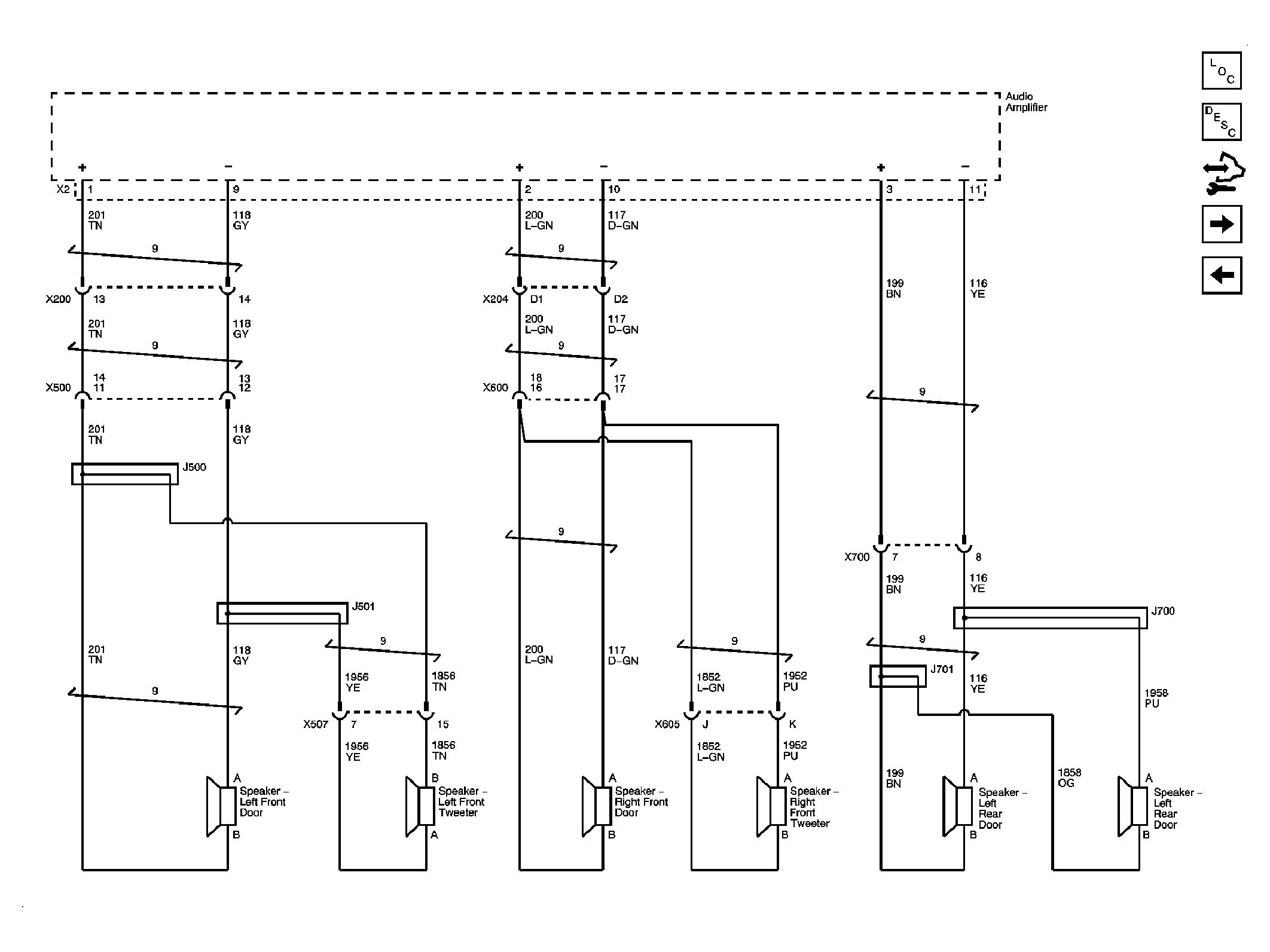

Fig 3: Speakers (U61) - Schematic

Courtesy of GENERAL MOTORS CORP.

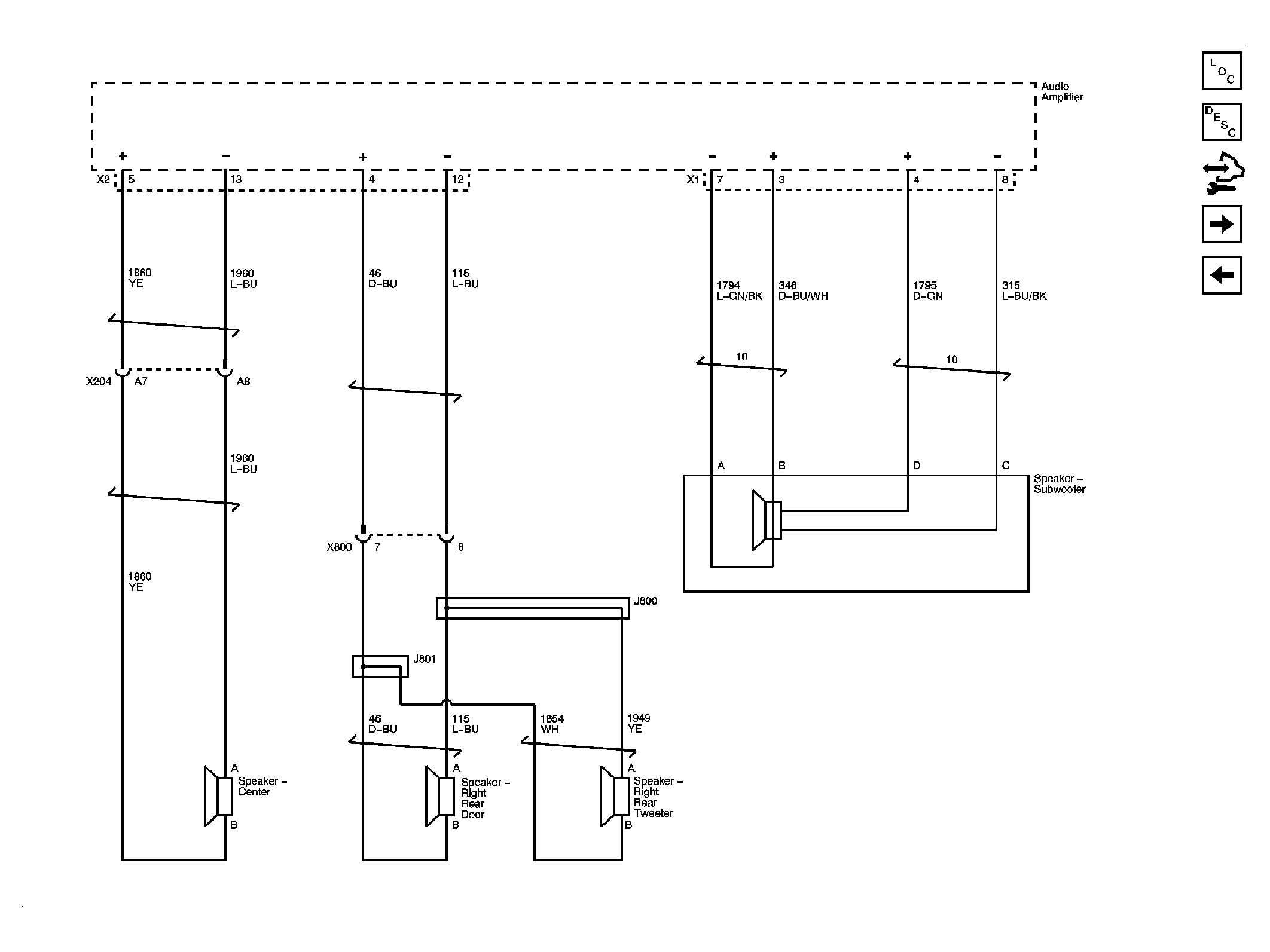

Fig 4: Speakers (U61) 2 Of 2 - Schematic

Courtesy of GENERAL MOTORS CORP.

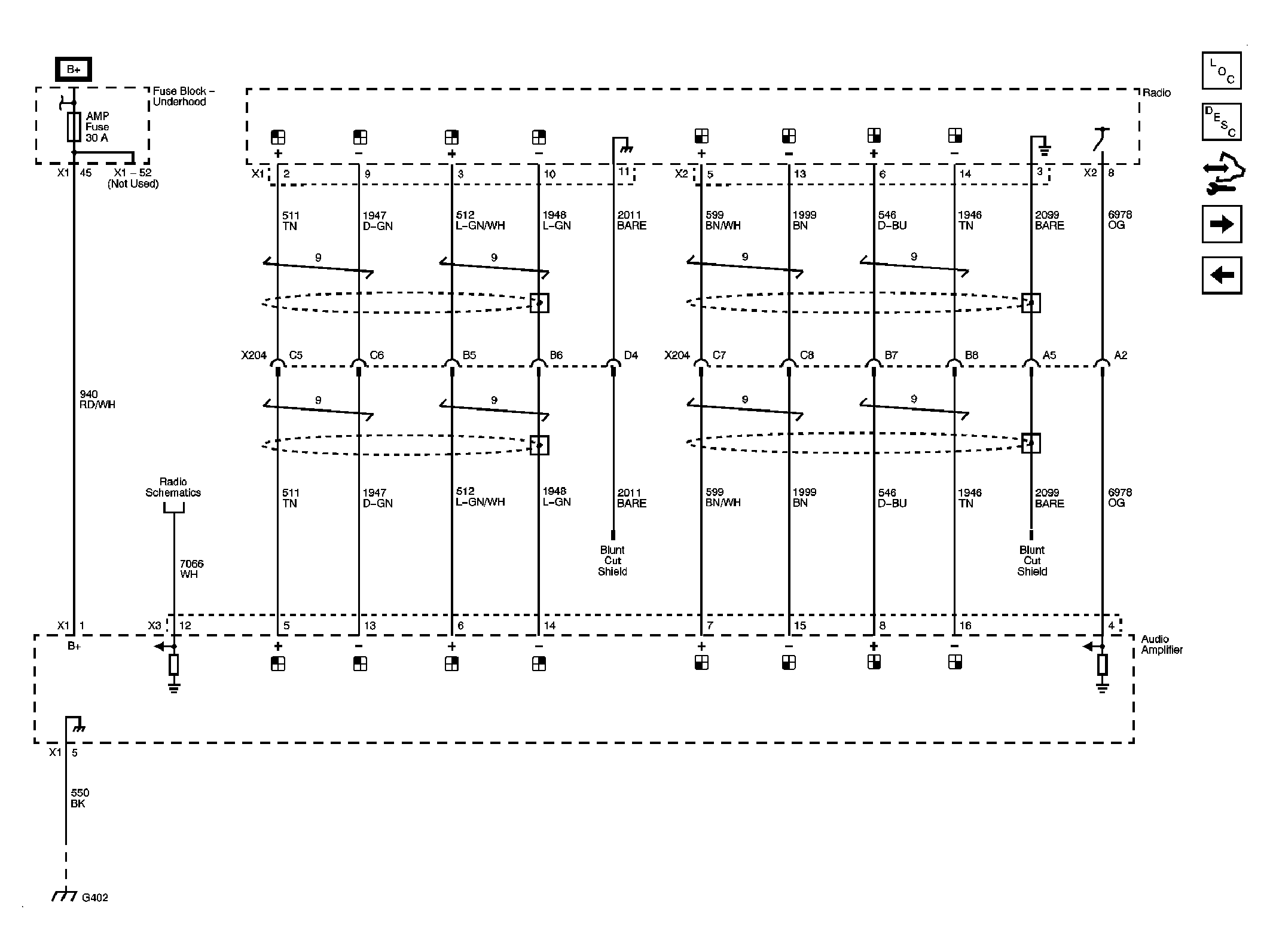

Fig 5: Audio Amplifier - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Digital Radio - Schematic

Courtesy of GENERAL MOTORS CORP.

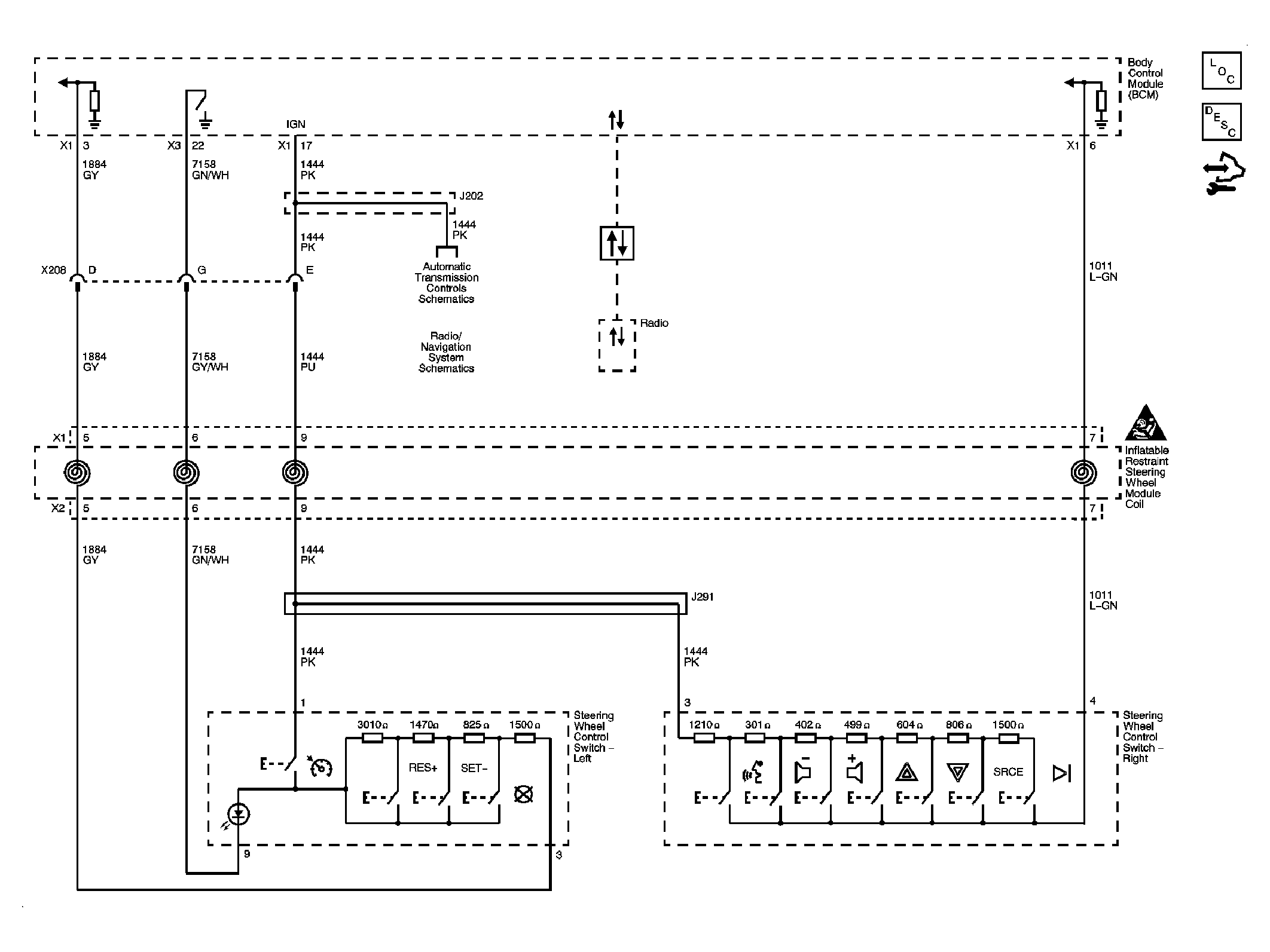

Fig 7: Steering Wheel Controls - Schematic

Courtesy of GENERAL MOTORS CORP.
