Engine Exhaust Assembly: Components

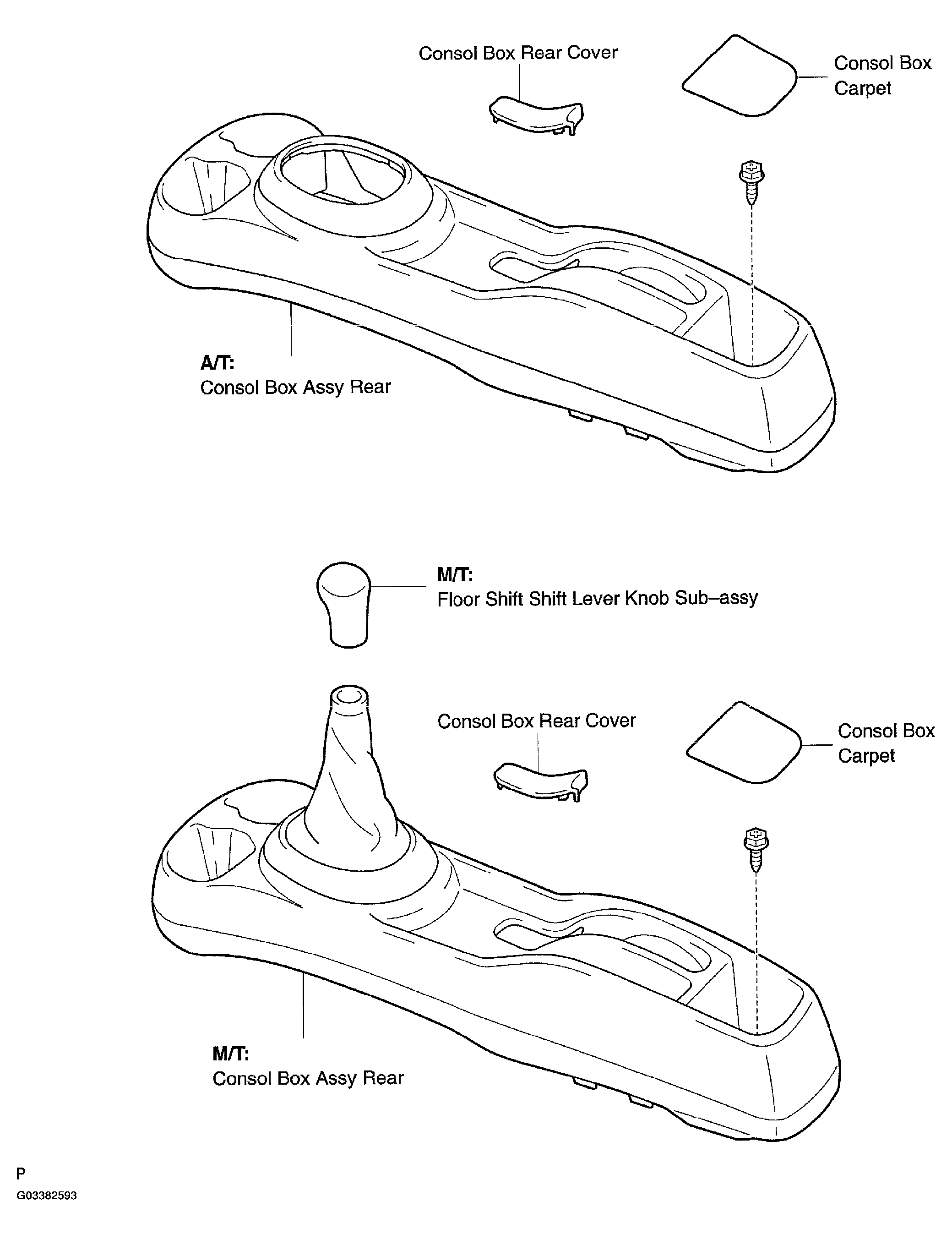

Fig 1: Identifying Console Box Assembly Components
G03382593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

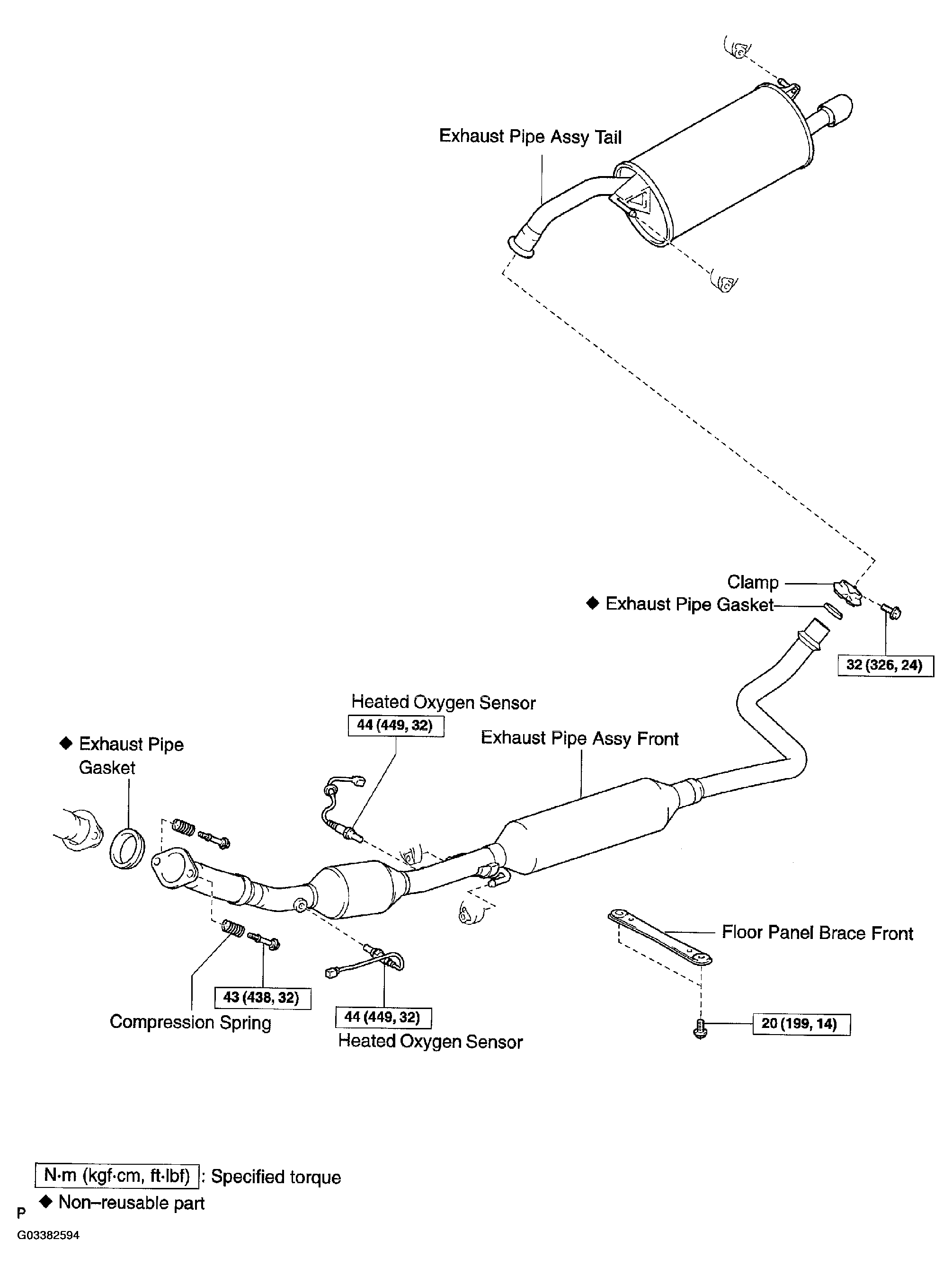

Fig 2: Identifying Exhaust System Assembly
G03382594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
