Instrument Panel/Meter: Components

WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

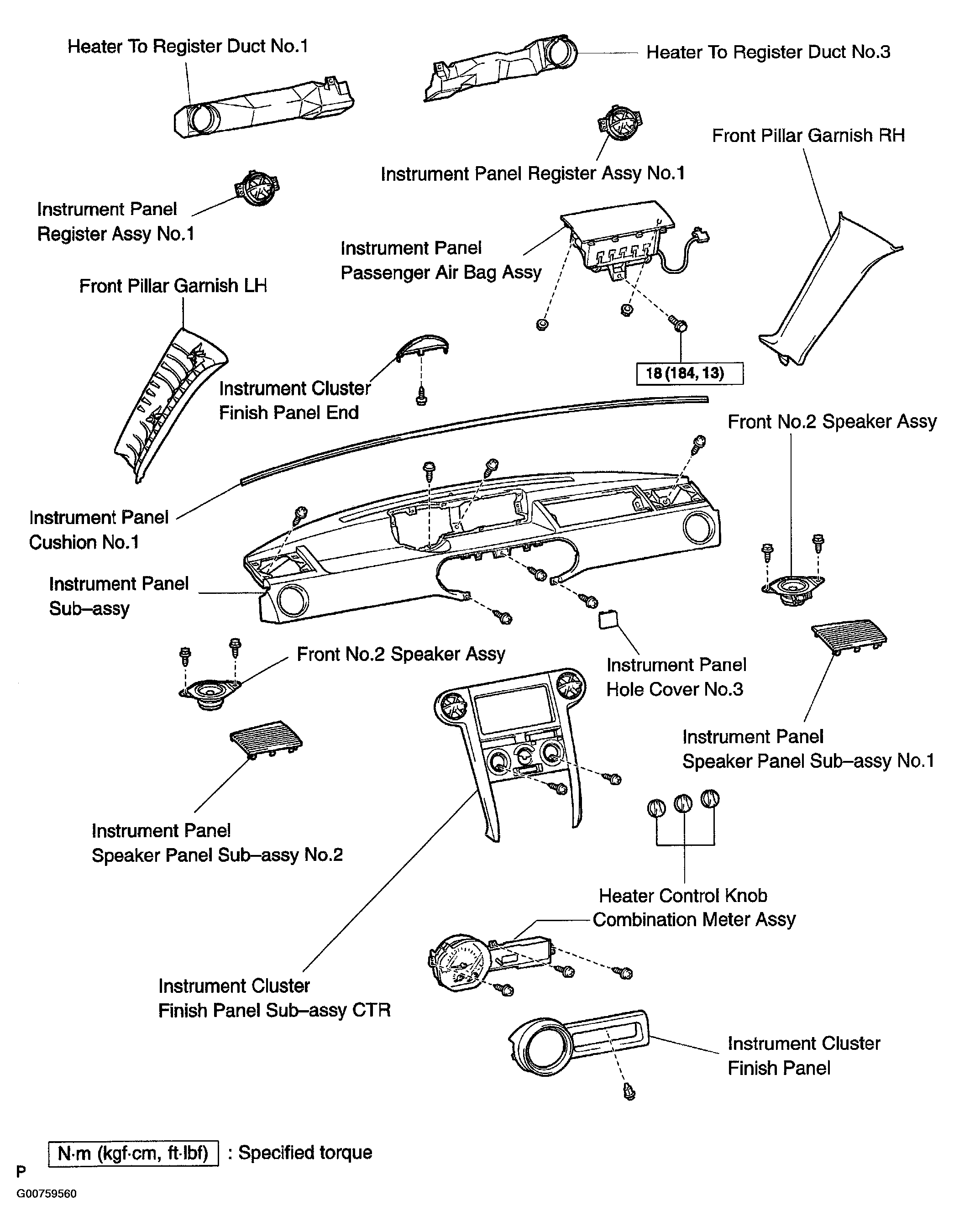

Fig 1: Removing/Installing Instrument Panel/Meter (1 Of 4)
G00759560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

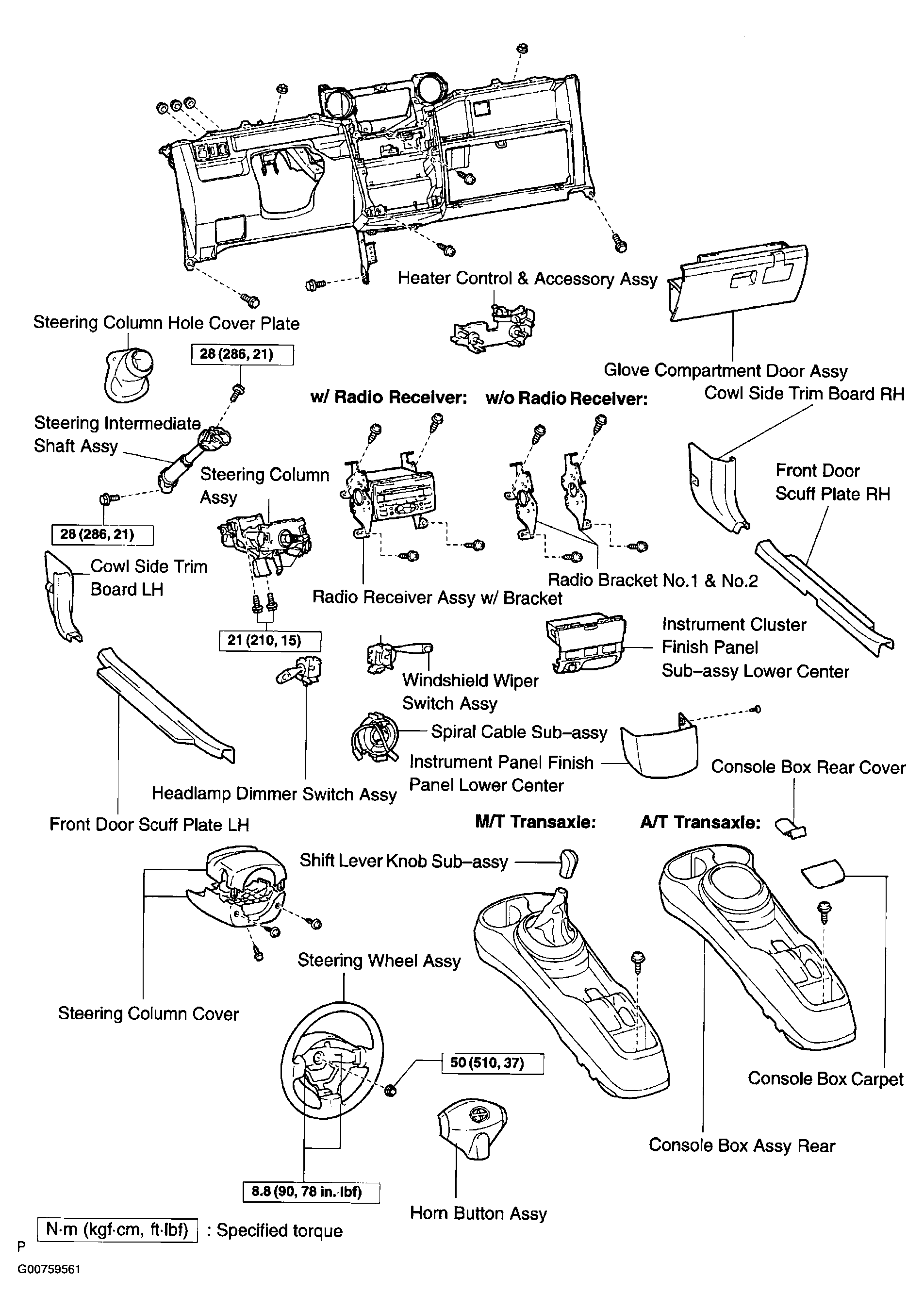

Fig 2: Removing/Installing Instrument Panel/Meter (2 Of 4)
G00759561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

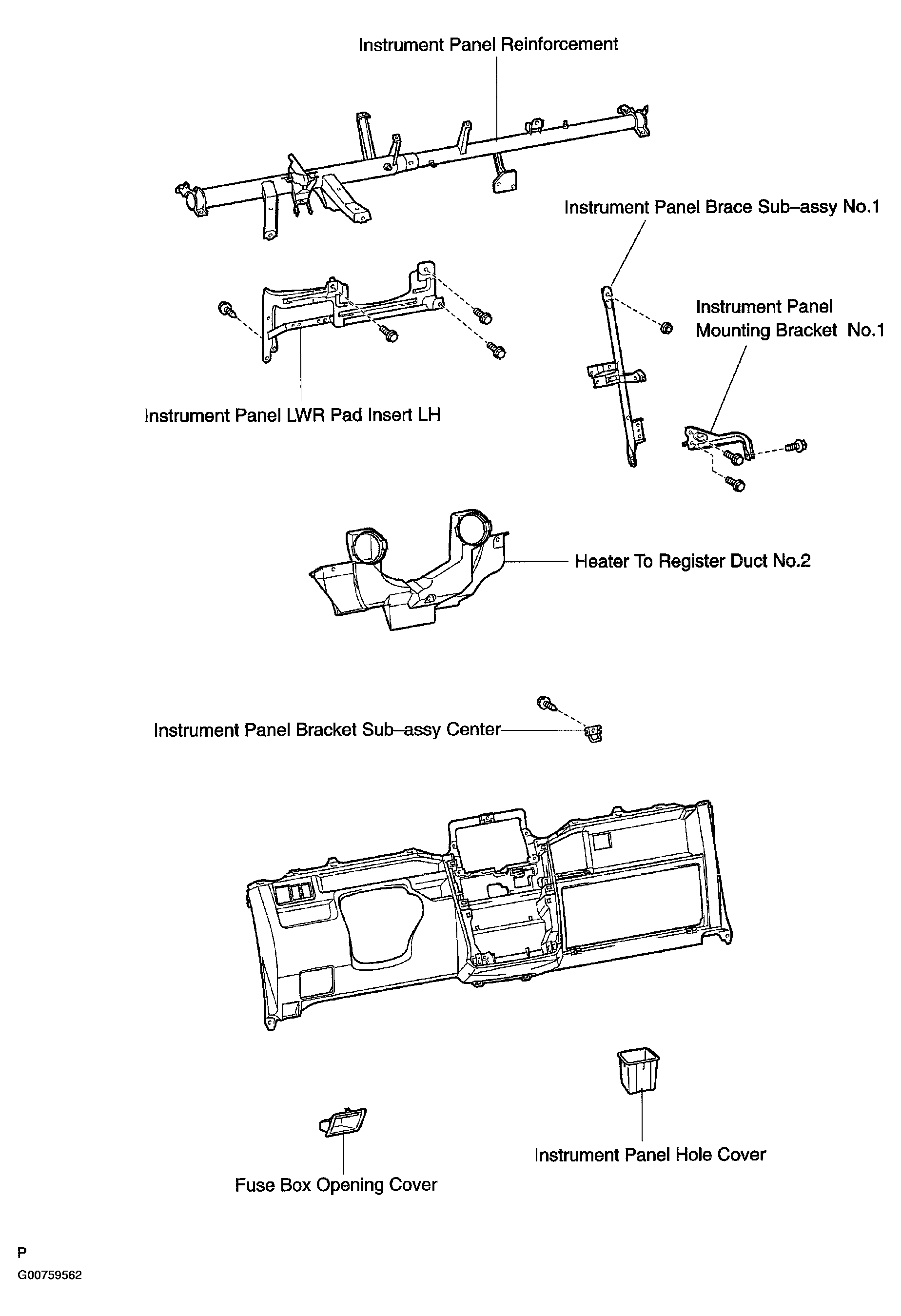

Fig 3: Removing/Installing Instrument Panel/Meter (3 Of 4)
G00759562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

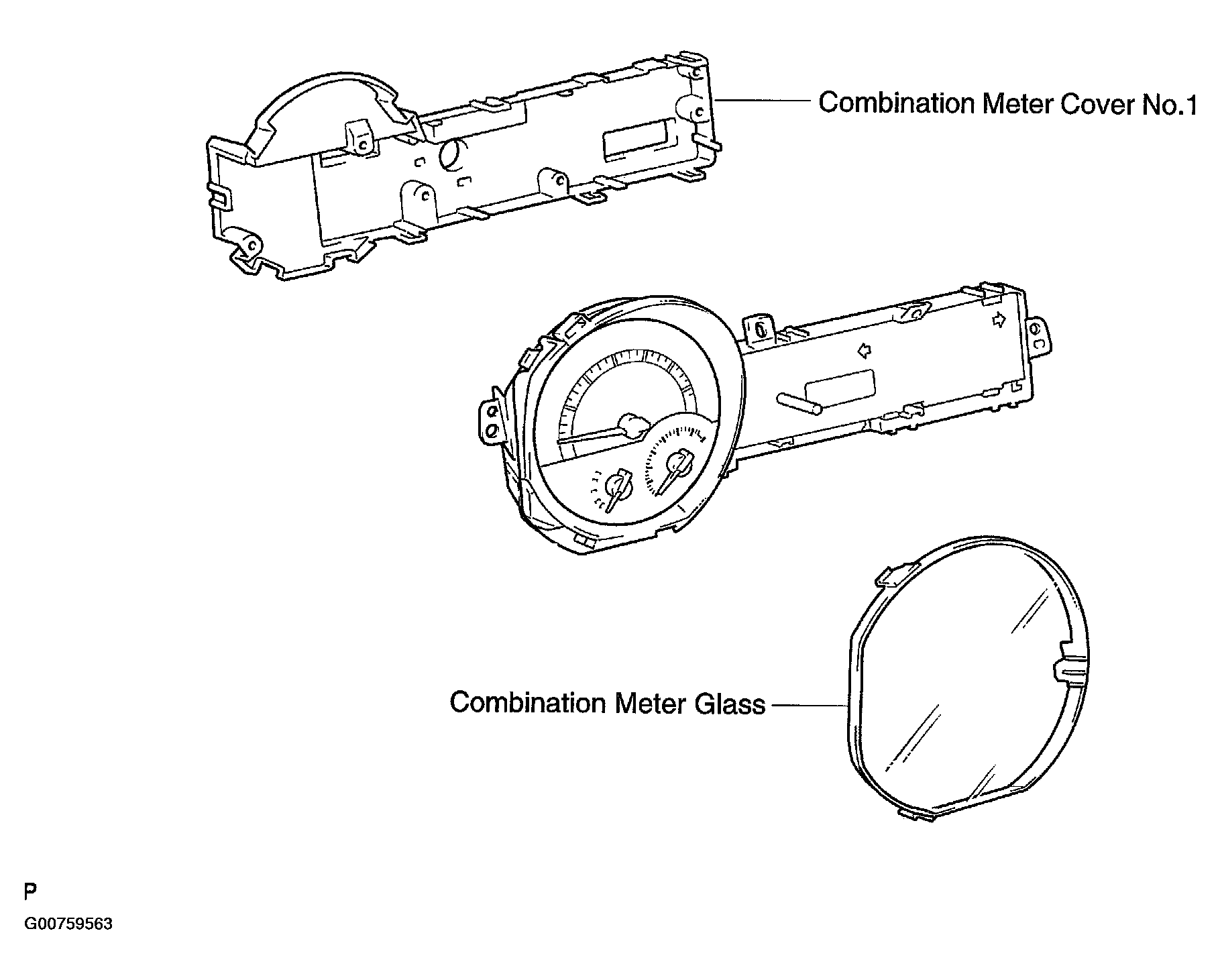

Fig 4: Removing/Installing Instrument Panel/Meter (4 Of 4)
G00759563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
