Front Seat: Components

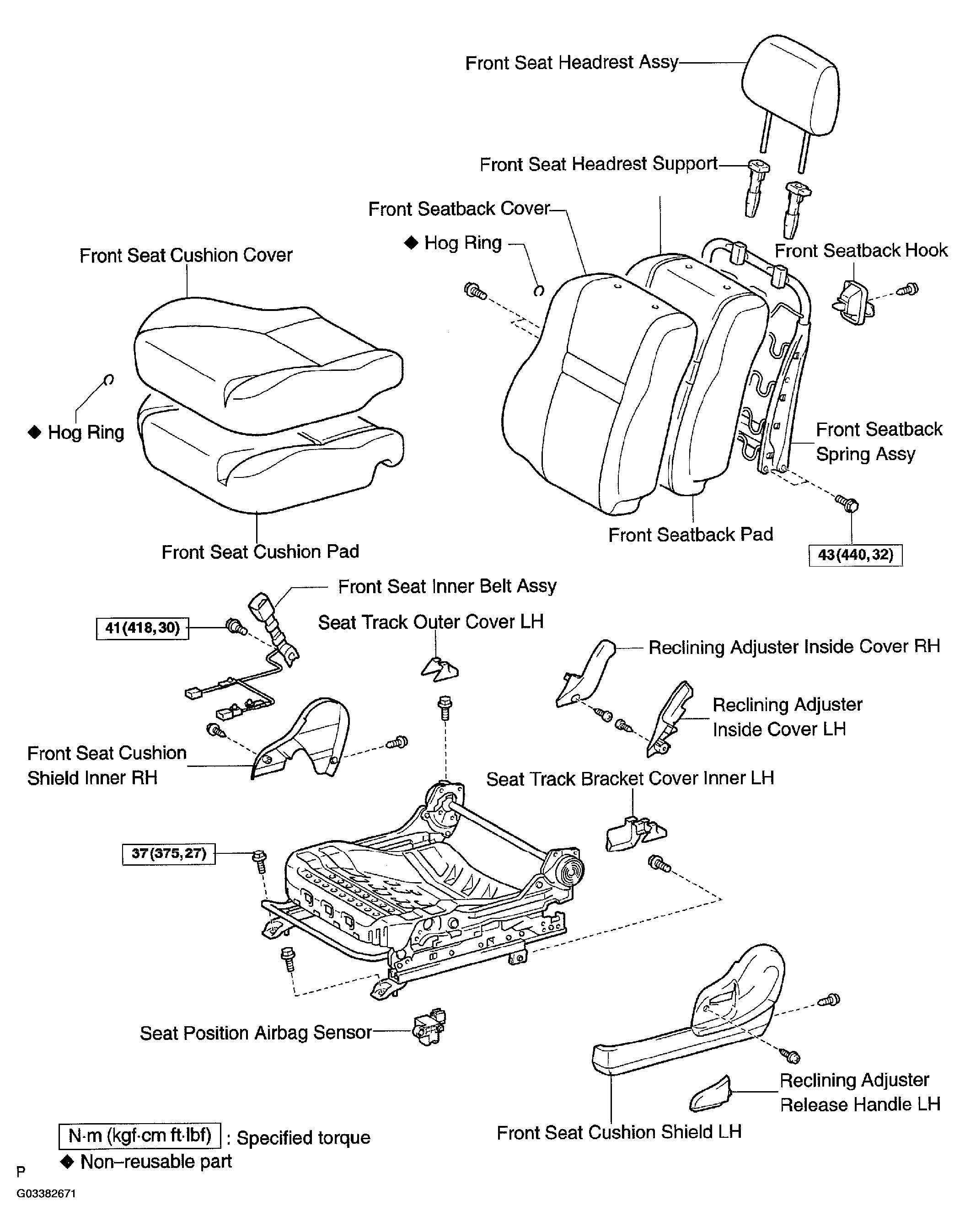

Fig 1: Exploded View Of Front Seat Components

G03382671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
