Cylinder Block ASSY: Components

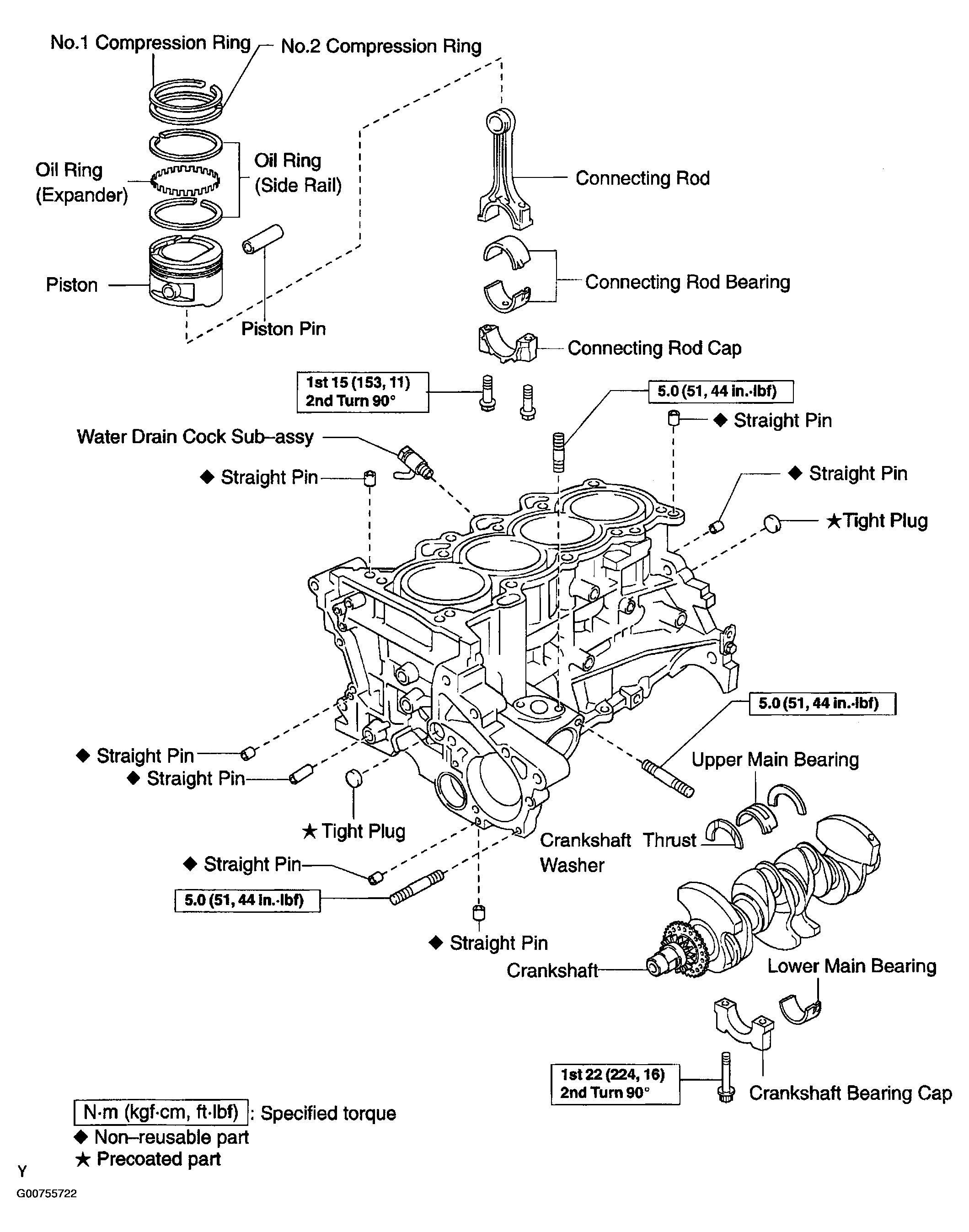

Fig 1: Locating Components Of Cylinder Block Assembly
G00755722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
