TERMINALS AND REFERENCE VALUE FOR DISPLAY UNIT

Terminal (Wire color)		Item	Signal input/output	Condition		Reference value
(+)	(-)	Item	Signal input/output	Ignition switch	Operation	Reference value

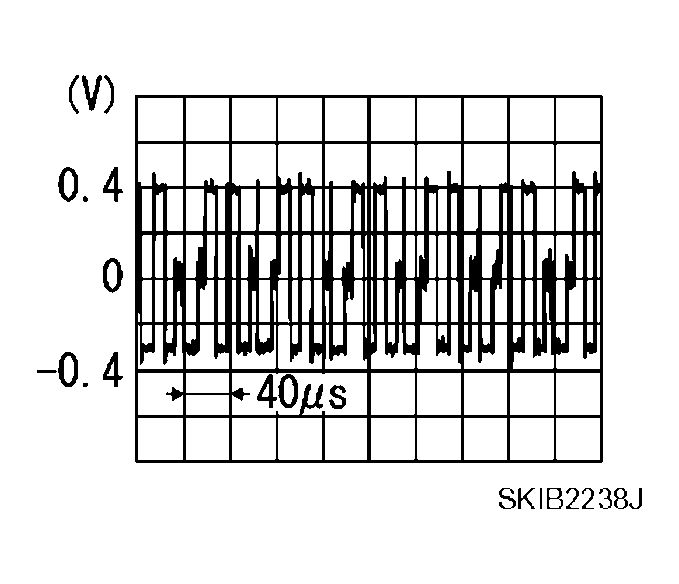

1 (B)	4 (G)	RGB signal (R: red)	Input	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.

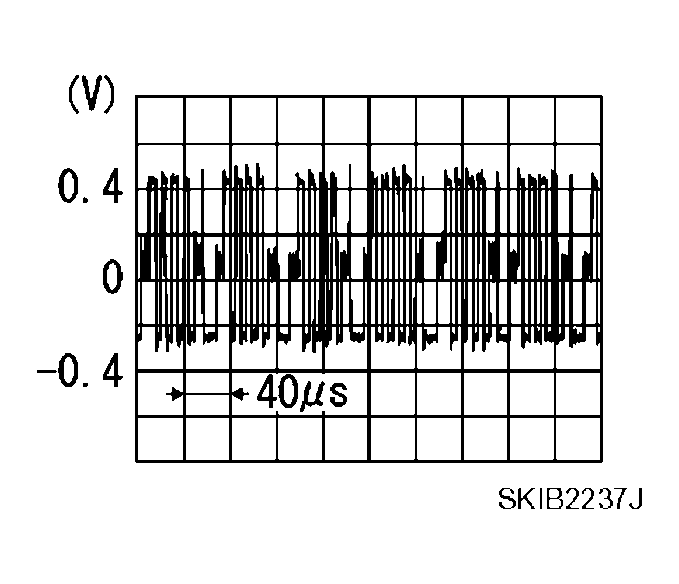

2 (W)	4 (G)	RGB signal (G: green)	Input	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
3 (R)	4 (G)	RGB signal (B: blue)	Input	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
4 (G)	Ground	RGB Ground	-	ON	-	Approx. 0 V
7 (P)	Ground	RGB synchronizing signal	Input	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
8 (L)	Ground	RGB area (YS) signal	Input	ON	When inputting RGB image.	Approx. 5 V
12	-	Shield	-	-	-	-
13 (B)	Ground	Communication signal (-)	Input/Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
14 (W)	Ground	Communication signal (+)	Input/Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
15	-	Shield	-	-	-	-
16 (G)	Ground	Communication signal (-)	Input/Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
19 (LG)	Ground	ACC power supply	Input	ACC	-	Battery voltage
20 (R)	Ground	Communication signal (+)	Input/Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
21 (Y)	Ground	Battery power supply	Input	OFF	-	Battery voltage
22 (B)	Ground	Ground	-	ON	-	Approx. 0 V
23 (Y)	Ground	Battery power supply	Input	OFF	-	Battery voltage
24 (B)	Ground	Ground	-	ON	-	Approx. 0 V
