TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT

Terminal (Wire color)		Item	Signal Input/output	Condition		Reference value
+	-	Item	Signal Input/output	Ignition switch	Operation	Reference value
1 (B)	Ground	Ground	-	ON	-	Approx. 0 V
2 (Y)	Ground	Battery power supply	Input	OFF	-	Battery voltage
5 (LG)	Ground	ACC power supply	Input	ACC	-	Battery voltage

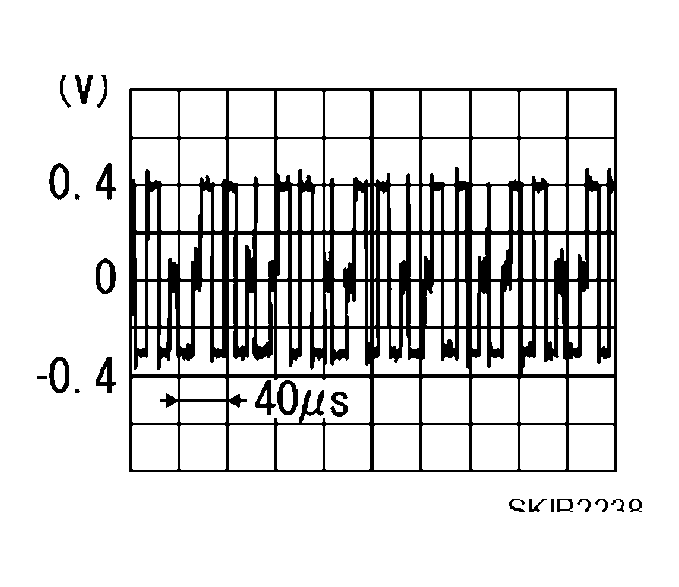

12 (L/W)	14 (W/B)	Voice guidance signal	Output	ON	When inputting voice guidance.	Courtesy of NISSAN MOTOR CO., U.S.A.
13	-	Shield	-	-	-	-
21 (B)	Ground	Ground	-	ON	-	Approx. 0 V
22 (R/W)	Ground	Limit switch signal	Input	ON	Display unit is opened.	Approx. 5 V
22 (R/W)	Ground	Limit switch signal	Input	ON	Except for above	Approx. 0 V

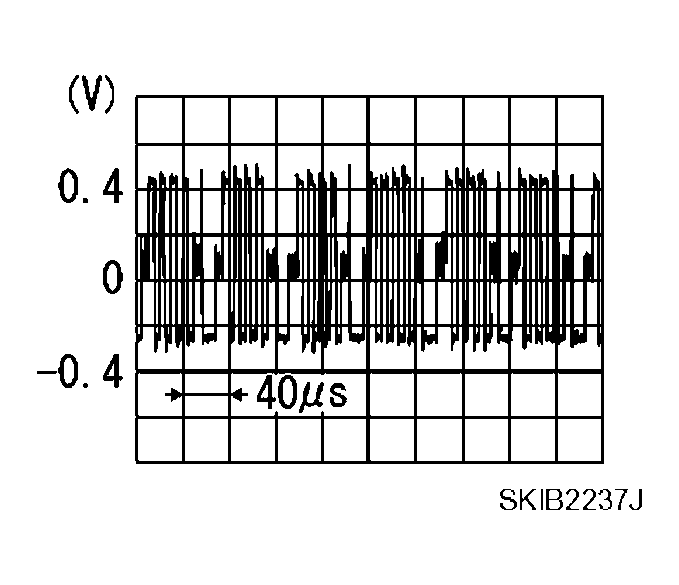

24 (R/B)	Ground	Voice guidance ON signal	Output	ON	Press the "VOICE" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
44 (B)	47 (G)	RGB signal (R: red)	Output	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
45 (W)	47 (G)	RGB signal (G: green)	Output	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
46 (R)	47 (G)	RGB signal (B: blue)	Output	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
47 (G)	Ground	RGB ground	-	ON	-	Approx.0 V
48 (P)	Ground	RGB synchronizing signal	Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
49	-	Shield	-	-	-	-
50 (L)	Ground	RGB area (YS) signal	Output	ON	When inputting RGB image.	Approx. 5 V
61 (R/L)	Ground	Illumination signal	Input	OFF	Lighting switch position 1st or 2nd	Approx. 12 V
61 (R/L)	Ground	Illumination signal	Input	OFF	Lighting switch position OFF	Approx. 0 V
63 (Y/G)	Ground	Ignition signal	Input	ON	-	Battery voltage
65 (OR)	Ground	Reverse signal	Input	ON	Select lever in R position.	Approx. 12 V
65 (OR)	Ground	Reverse signal	Input	ON	Other than selector lever in R position.	Approx. 0 V
66 (W/G)	Ground	Vehicle speed signal (2-pulse)	Input	ON	When vehicle speed is approx. 40 km/h (25 MPH).	Courtesy of NISSAN MOTOR CO., U.S.A.
68	-	Shield	-	-	-	-
69 (W)	Ground	Communication signal (+)	Input/Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
70 (B)	Ground	Communication signal (-)	Input/Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
71 (PU)	Ground	Communication signal (+)	Input/Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
72 (LG)	Ground	Communication signal (-)	Input/Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
73	Ground	GPS signal	Input	ON	Connector is not connected.	Approx. 5 V
74	-	Shield	-	-	-	-
