Power Door Lock Control System: Inspection

WARNING: This page is about a different car, the 2004 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FRONT DOOR LOCK ACTUATOR ASSY LH
1. Apply battery voltage to the actuator terminals and check operation of the door lock motor.
  Standard

  Fig 1: Front LH Door Lock Motor Operation Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

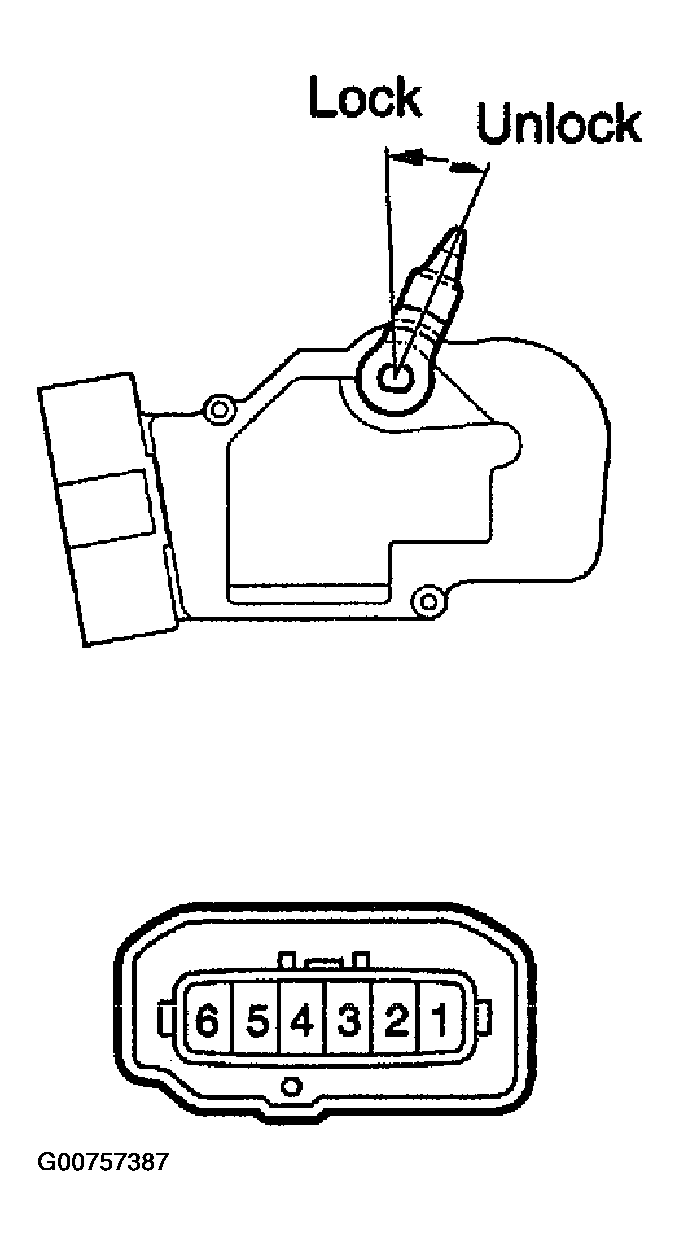

  Fig 2: Identifying Front LH Door Lock Motor Lock And Unlock Position And Connector View
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance of the door lock and unlock switch.
  Standard

  Fig 3: Front LH Door Lock And Unlock Switch Resistance Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

  Fig 4: Identifying Front LH Position Switch Lock And Unlock Position And Connector View
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the resistance of the position switch.
  Standard:

  Fig 5: Front LH Position Switch Resistance Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.
INSPECT FRONT DOOR LOCK ACTUATOR ASSY RH
1. Apply battery voltage to the actuator terminals and check operation of the door lock motor.
  Standard:

  Fig 6: Front RH Door Lock Motor Operation Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

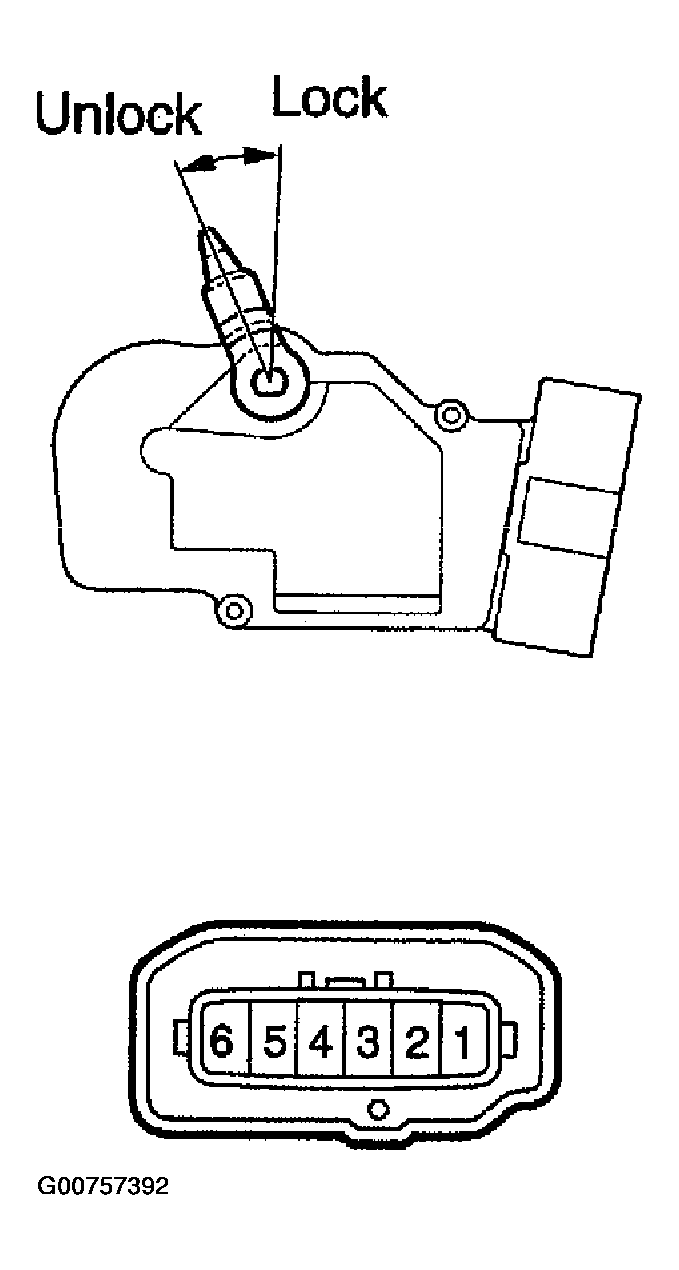

  Fig 7: Identifying Front RH Door Lock Motor Lock And Unlock Position And Connector View
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance of the door lock and unlock switch.
  Standard:

  Fig 8: Front RH Door Lock And Unlock Switch Resistance Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.
Fig 9: Identifying Front RH Door Lock And Unlock Switch Operation And Connector View
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR DOOR LOCK ACTUATOR ASSY LH
1. Apply battery voltage to the actuator terminals and check operation of the door lock motor.
  Standard:

  Fig 10: Rear LH Door Lock Motor Operation Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

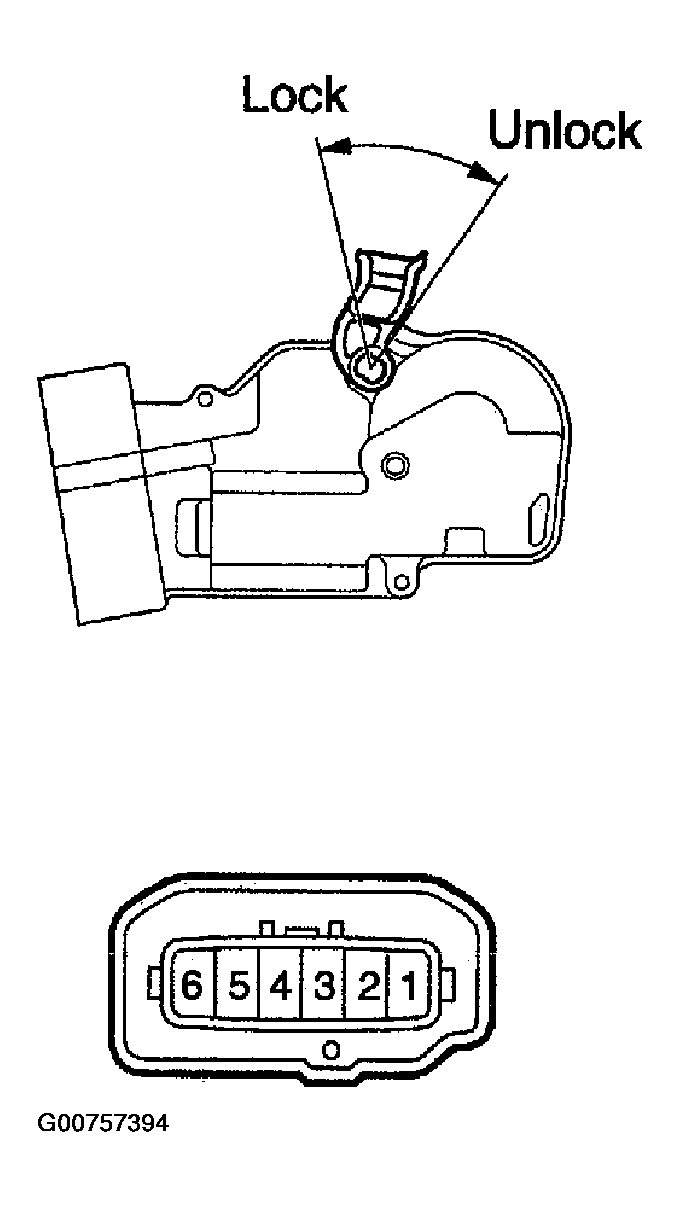

Fig 11: Identifying Rear LH Door Lock Motor Operation And Connector View
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR DOOR LOCK ACTUATOR ASSY RH
1. Apply battery voltage to the actuator terminals and check operation of the door lock motor.
  Standard:

  Fig 12: Rear RH Door Lock Motor Operation Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

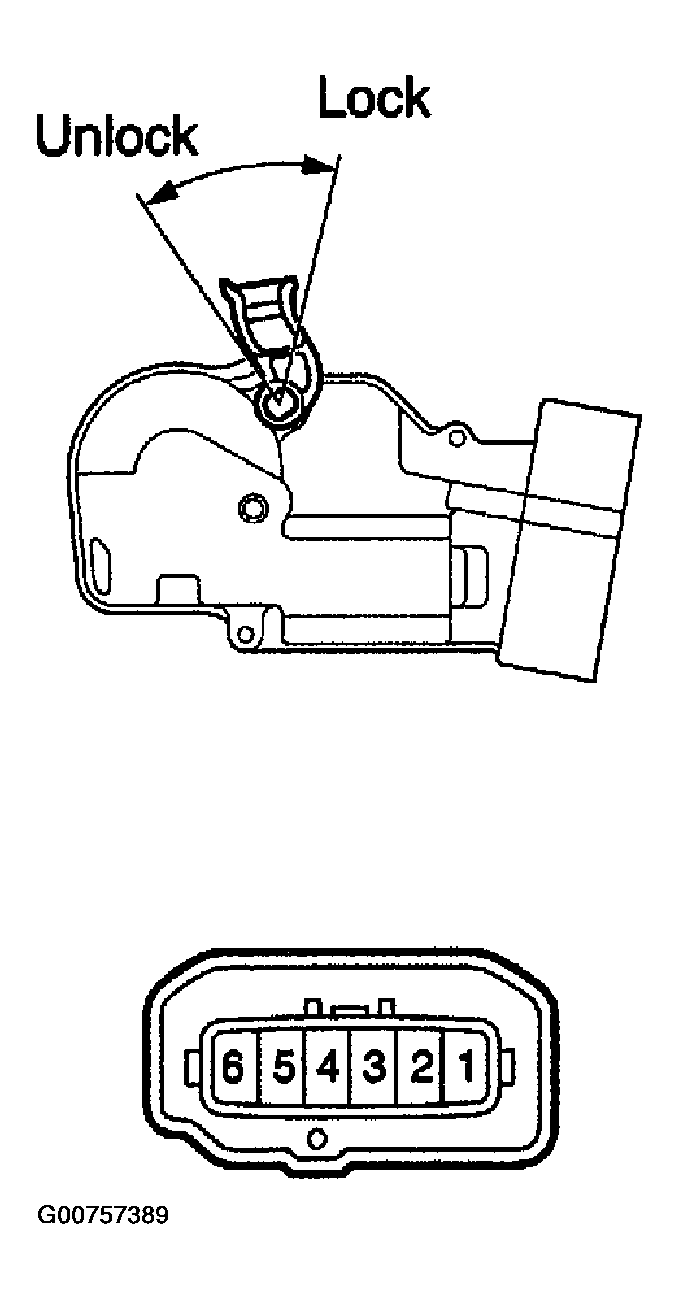

Fig 13: Identifying Rear RH Door Lock Motor Operation And Connector View
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BACK DOOR LOCK ASSY
1. Check operation of the door lock.
  1. Using a screwdriver, move the latch to the full-latch position.
  2. Apply battery voltage to the door lock terminals and check operation of the latch.
  Standard:

  Fig 14: Back Door Lock Latch Operation Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy
2. Check the back door courtesy switch resistance.
  Standard:

  Fig 15: Back Door Courtesy Switch Resistance Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

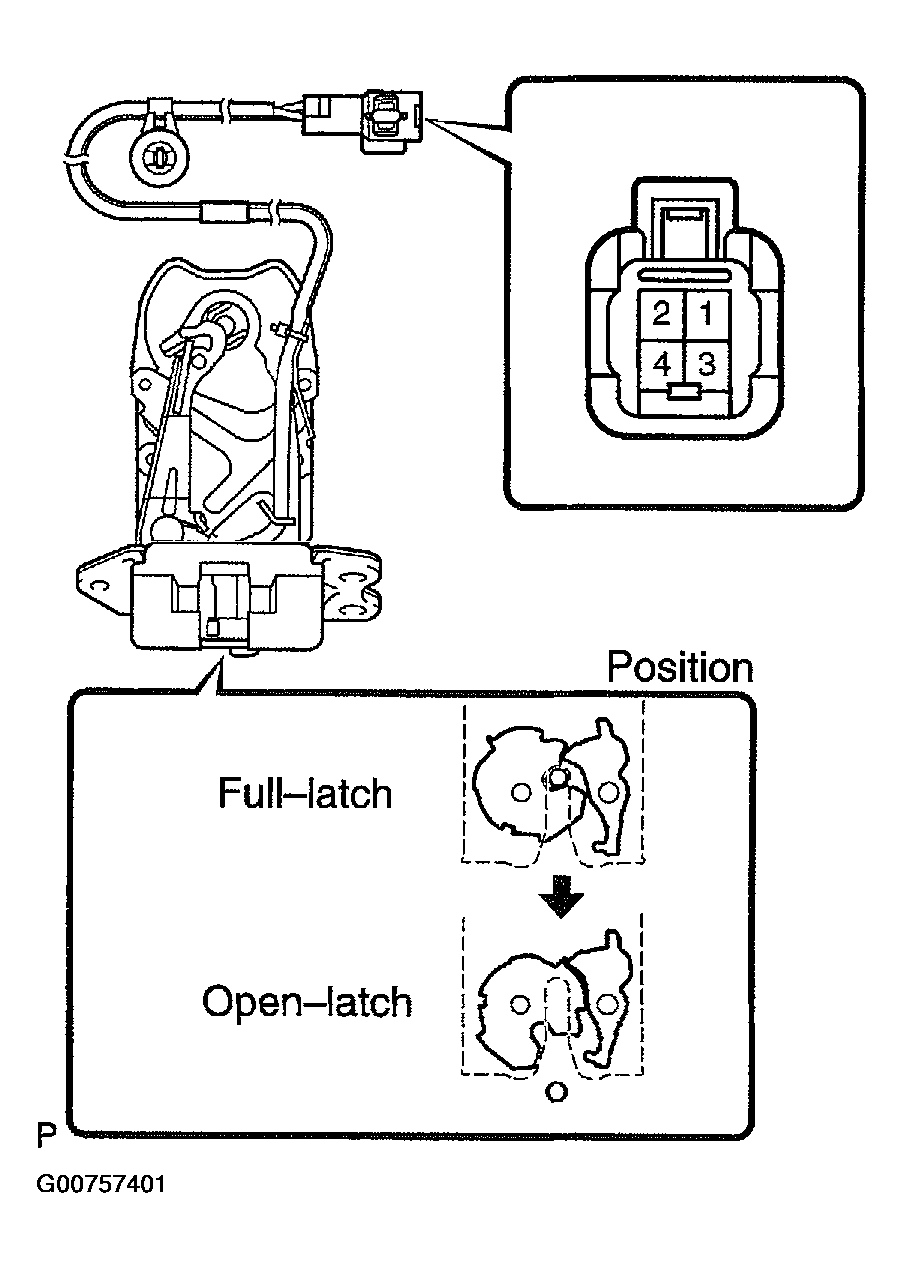

Fig 16: Identifying Back Door Lock Latch Position (Full-Latch And Open-Latch) And Connector View
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY.
1. Check the resistance of the door control switch.
  Standard:

  Fig 17: Door Control Switch Resistance Specified Table - Power Window Regulator Master Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.

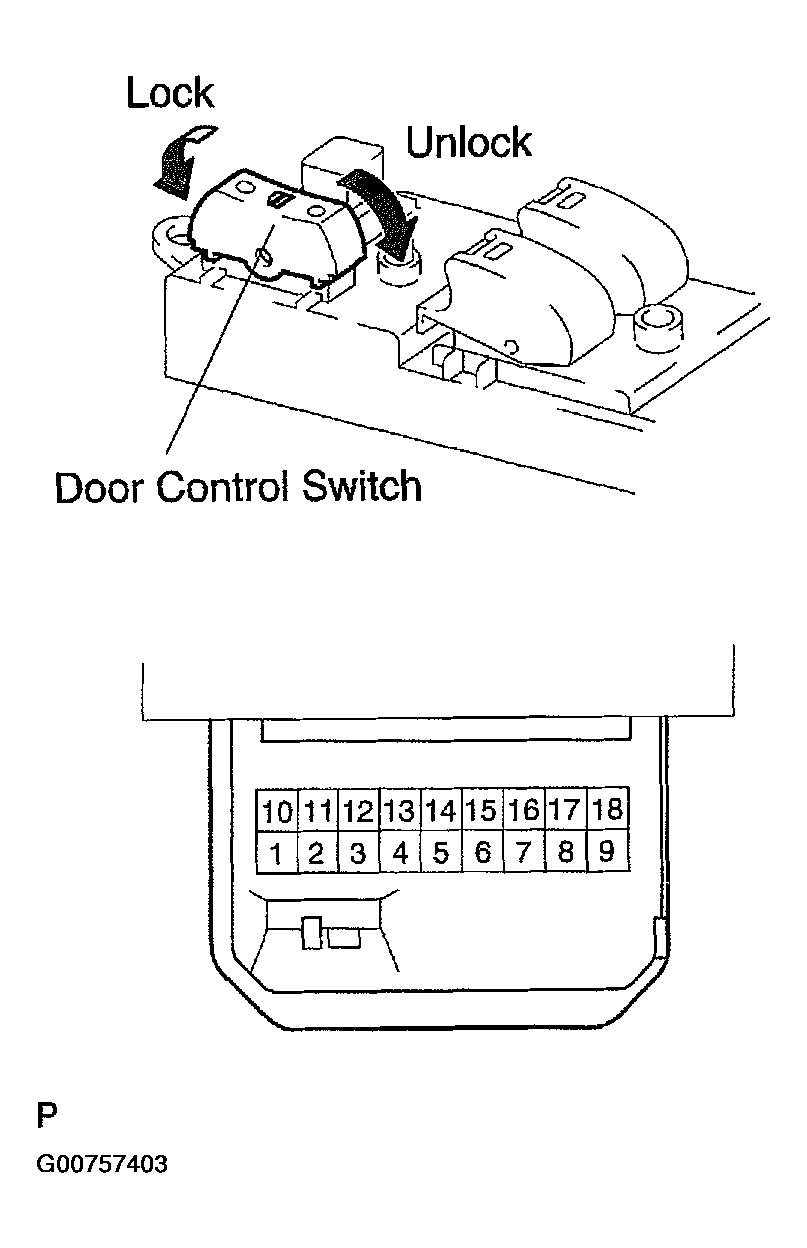

Fig 18: Identifying Door Control Switch Operation And Connector View - Power Window Regulator Master Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DOOR CONTROL SWITCH ASSY
1. Check the resistance of the door control switch.
  Standard:

  Fig 19: Door Control Switch Resistance Specified Table - Door Control Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.

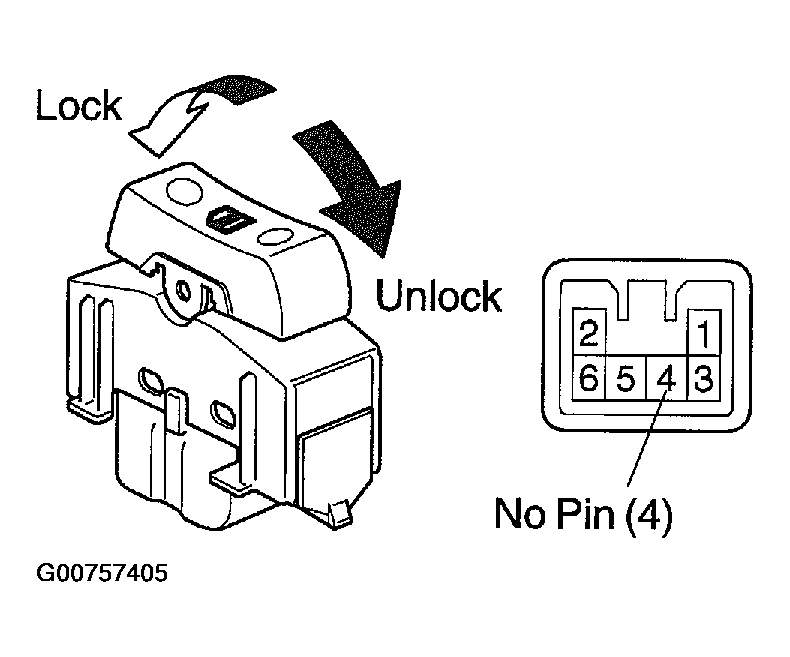

Fig 20: Identifying Door Lock Switch Operation And Connector View - Door Control Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BACK DOOR OPENER SWITCH ASSY
1. Check the resistance of the switch.
  Standard:

  Fig 21: Back Door Opener Switch Resistance Specified Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch assy.
Fig 22: Identifying Back Door Opener Operation And Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
