Shift Lock Control Switch (ATM): Inspection

INSPECT SHIFT LOCK CONTROL SWITCH
1. Disconnect the connector of the shift lock control switch.
2. Measure the resistance according to the value(s) in the table below.

  Fig 1: Identifying Shift Lock Control Switch Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Resistance Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

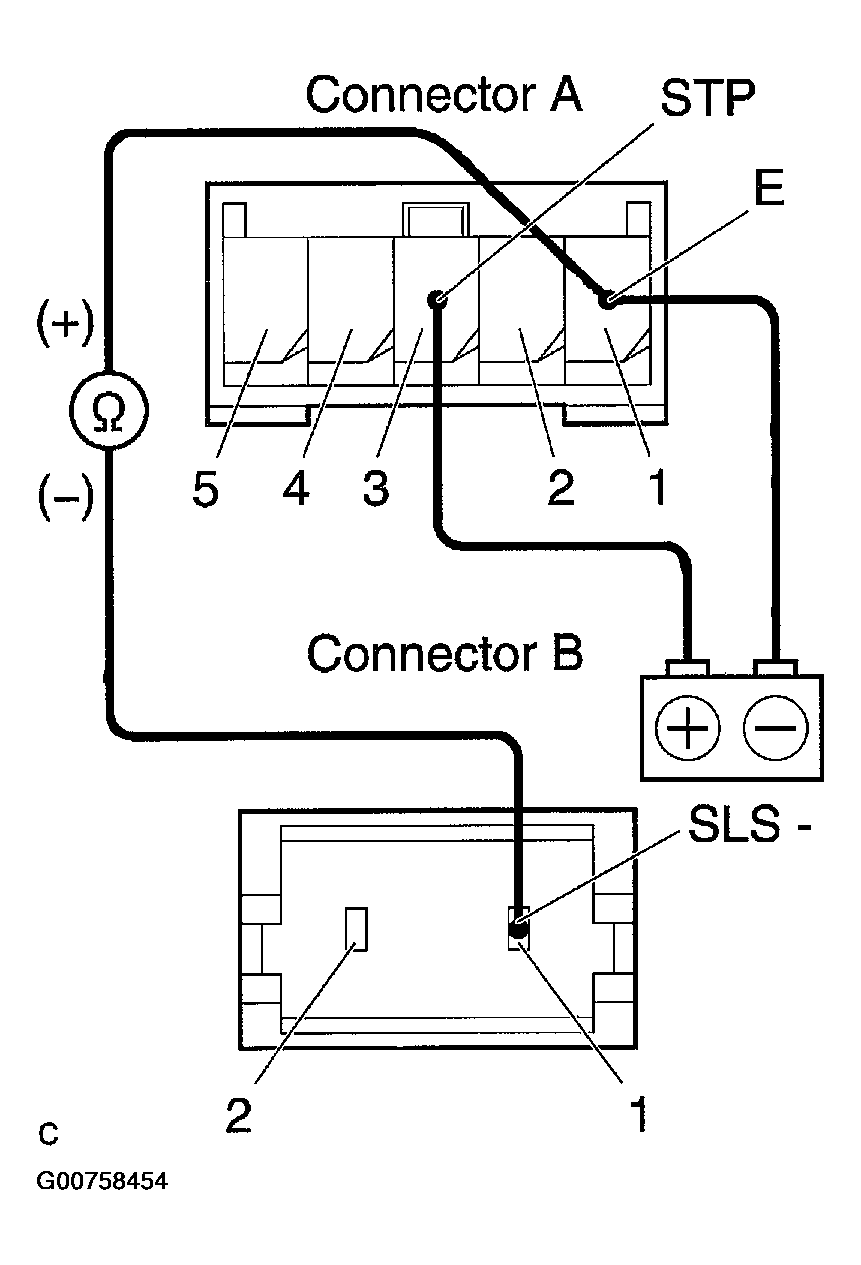

3. Connect terminal STP to the battery positive (+) terminal and terminal E to the battery negative (-) terminal, and apply about 12 V between terminals STP and E.

  Fig 3: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Measure the resistance according to the value(s) in the table below.
Fig 4: Resistance Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
