Front Seat: Replacement

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.

CAUTION:

Wear safety gloves because the cutting surface of the seatback frame and seat adjuster may injure your hand.
Work must be started more than 90 seconds after the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.
(The SRS is equipped with a back-up power source. If work is started within 90 seconds from disconnecting the negative (-) terminal cable of the battery, the SRS may deploy.)

REMOVE SEAT TRACK BRACKET COVER INNER LH
1. Using a screwdriver, disengage the 2 claws and remove the seat track cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 1: Disengaging Claws & Removing Seat Track Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT TRACK OUTER COVER LH
1. Using a screwdriver, disengage the 4 claws and remove the seat track cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Disengaging Claws & Removing Seat Track Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT ASSY LH
1. Remove the 4 bolts.
2. Disconnect the connectors.
3. Remove the seat.

  Fig 3: Identifying Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT HEADREST ASSY
REMOVE FRONT SEAT INNER BELT ASSY LH
1. Disconnect the wire harness of the inner belt from the seat adjuster.
2. Remove the bolt and inner belt.
REMOVE FRONT SEAT CUSHION SHIELD INNER LH
1. Remove the clip and screw.
2. Disengage the claw and remove the seat cushion shield.

  Fig 4: Removing Clip & Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
1. Using a screwdriver, remove the reclining release handle.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Removing Reclining Release Handle Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

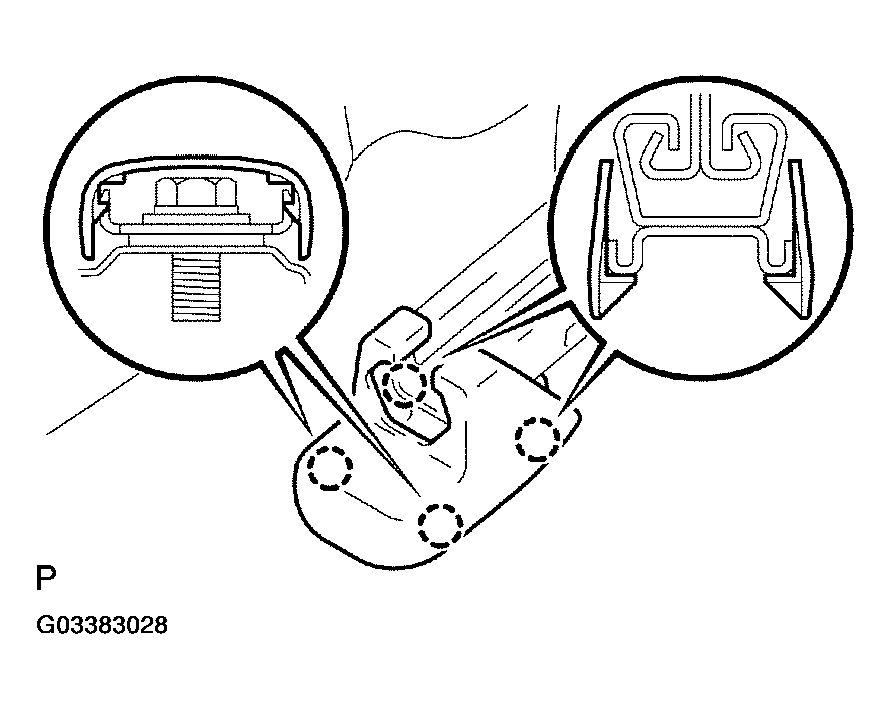

REMOVE FRONT SEAT CUSHION SHIELD LH
1. Remove the 2 screws.
2. Disengage the 2 claws and remove the seat cushion shield.

  Fig 6: Disengaging Claws & Removing Seat Cushion Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Seat hook:
REMOVE FRONT SEAT BACK HOOK
1. Remove the screw and seatback hook.

  Fig 7: Removing Screw & Seatback Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK ASSY LH
1. Remove the hog rings.

  Fig 8: Removing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Lift up the seatback cover and remove the hog rings.

  Fig 9: Lifting Up Seatback Cover & Removing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the clamps.
4. Remove the 4 bolts and seatback.

  Fig 10: Removing Bolts & Seatback
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

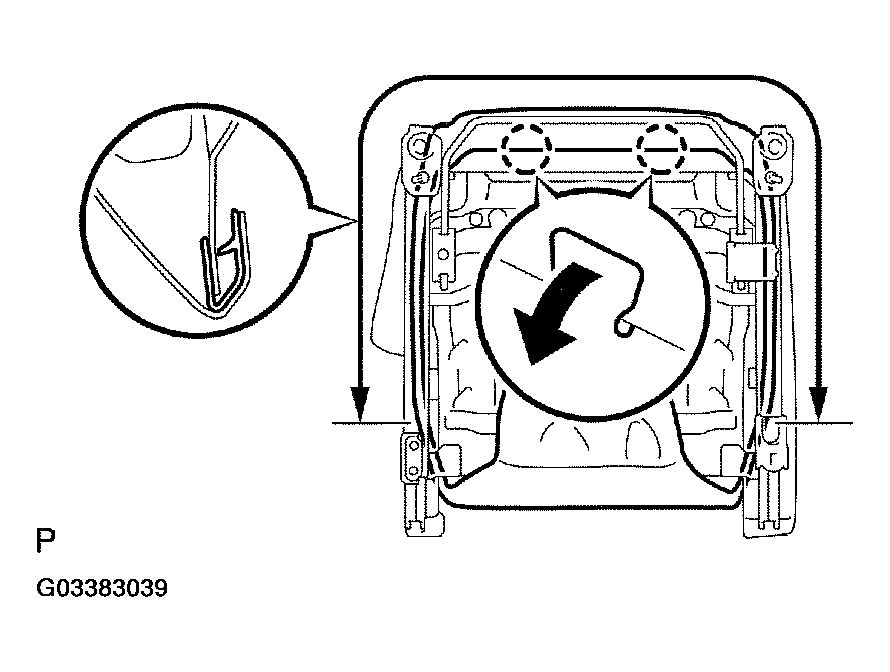

REMOVE FRONT SEAT HEADREST SUPPORT
1. Lift up the seatback cover to the top, then disengage the 4 claws and remove the 2 headrest supports.

  Fig 11: Disengaging Claws & Removing Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK SPRING ASSY
1. w/ Side airbag:
  Using a screwdriver, pry out the hanger.

  NOTE: Take care not to damage the airbag.
2. Remove the hog rings and seatback spring.

  Fig 12: Prying Out Hanger Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK COVER LH
1. Remove the hog rings and remove the seatback cover.
REMOVE FRONT SEAT CUSHION COVER LH
1. Remove the hog rings.
2. Disengage the claw of the front part of the seat adjuster.
3. Disengage the hook and remove the seat cushion cover (with pad).
4. Remove the hog rings and seat cushion cover.

  Fig 13: Removing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

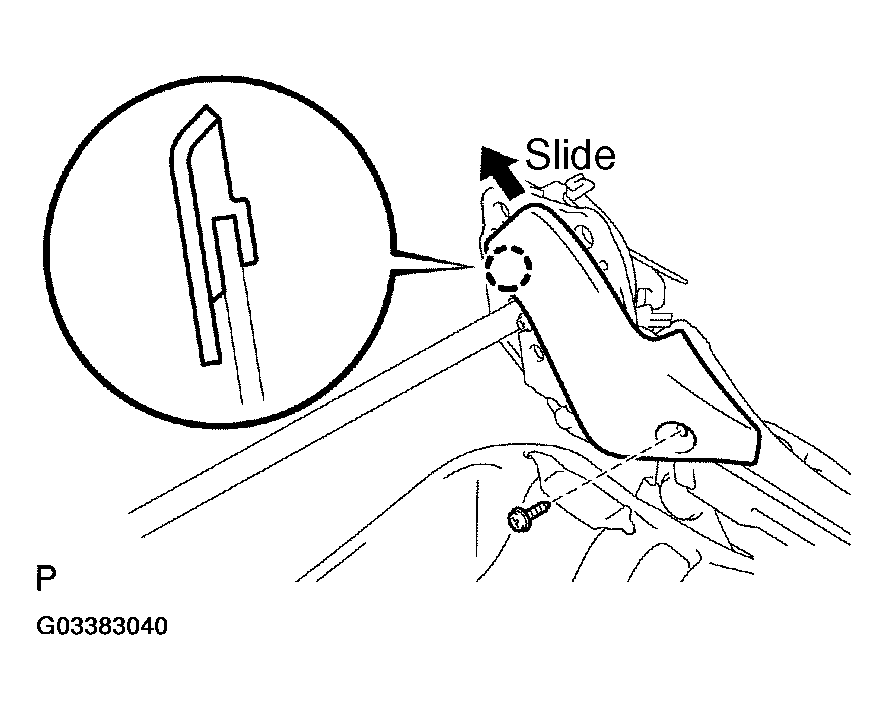

REMOVE RECLINING ADJUSTER INSIDE COVER LH
1. Remove the screw and adjuster inside cover.
REMOVE RECLINING ADJUSTER INSIDE COVER LH
1. Remove the screw and adjuster inside cover.
REMOVE SEAT POSITION AIR BAG SENSOR (See REMOVAL & INSTALLATION )

Fig 14: Removing Screw & Adjusting Inside Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION COVER LH
1. Install the seat cushion cover to the seat cushion pad with new hog rings.
2. Install the seat cushion cover (with pad) to the seat adjuster.
  NOTE: Do not damage or contaminate the seat cushion cover.

  HINT:

  When installing the hog rings, take care to prevent wrinkles as much as possible.

  Fig 15: Installing Seat Cushion Cover To Seat Cushion Pad With New Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEATBACK COVER LH
1. Install the seatback cover to the seatback pad with new hog rings.
2. Install the seatback cover (with pad) to the front seatback frame.
  NOTE: Do not damage or contaminate the seat cushion cover.

  HINT:

  When installing the hog rings, take care to prevent wrinkles as much as possible.

  Fig 16: Installing Seatback Cover To Front Seatback Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 headrest supports.
INSTALL FRONT SEATBACK ASSY LH
1. Install the seatback with the 4 bolts.
  Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
2. Install new hog rings to the backside of the seatback.
3. Install the headrest.
INSTALL FRONT SEAT INNER BELT ASSY LH
Torque: 41 N.m (418 kgf.cm, 30 ft.lbf)

Fig 17: Installing Seatback With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT ASSY LH
1. Put the seat on the cabin.
2. Connect the connectors.
3. Install the 4 bolts.
  Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
4. Install the inner and outer seat track covers.

  Fig 18: Putting Seat On Cabin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
