Only Wireless Control Function Is Inoperative: Wiring Diagram

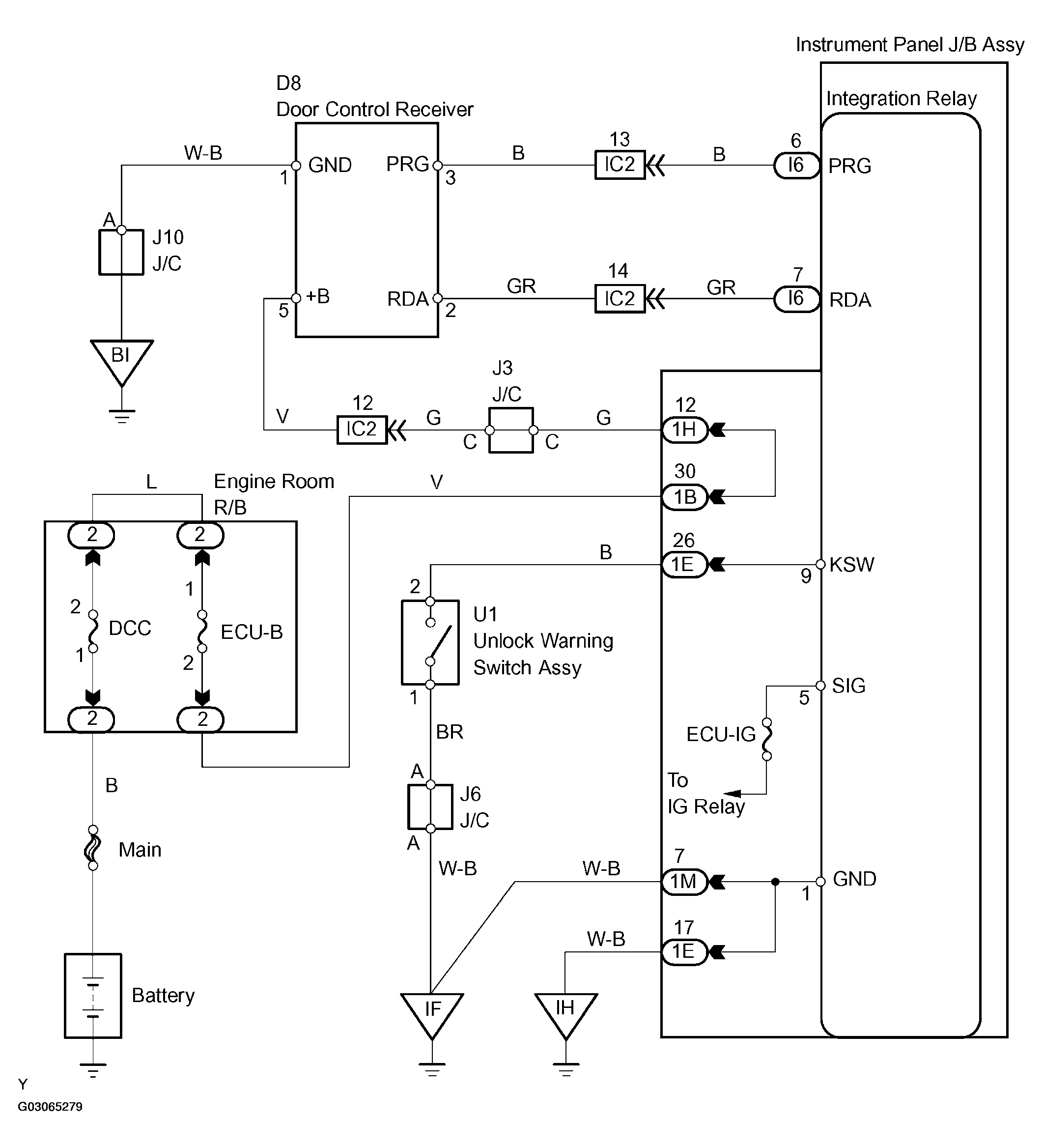

Fig 1: Identifying Wireless Control Function Wiring Diagram
G03065279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
