Torque Specifications

2AZ-FE:

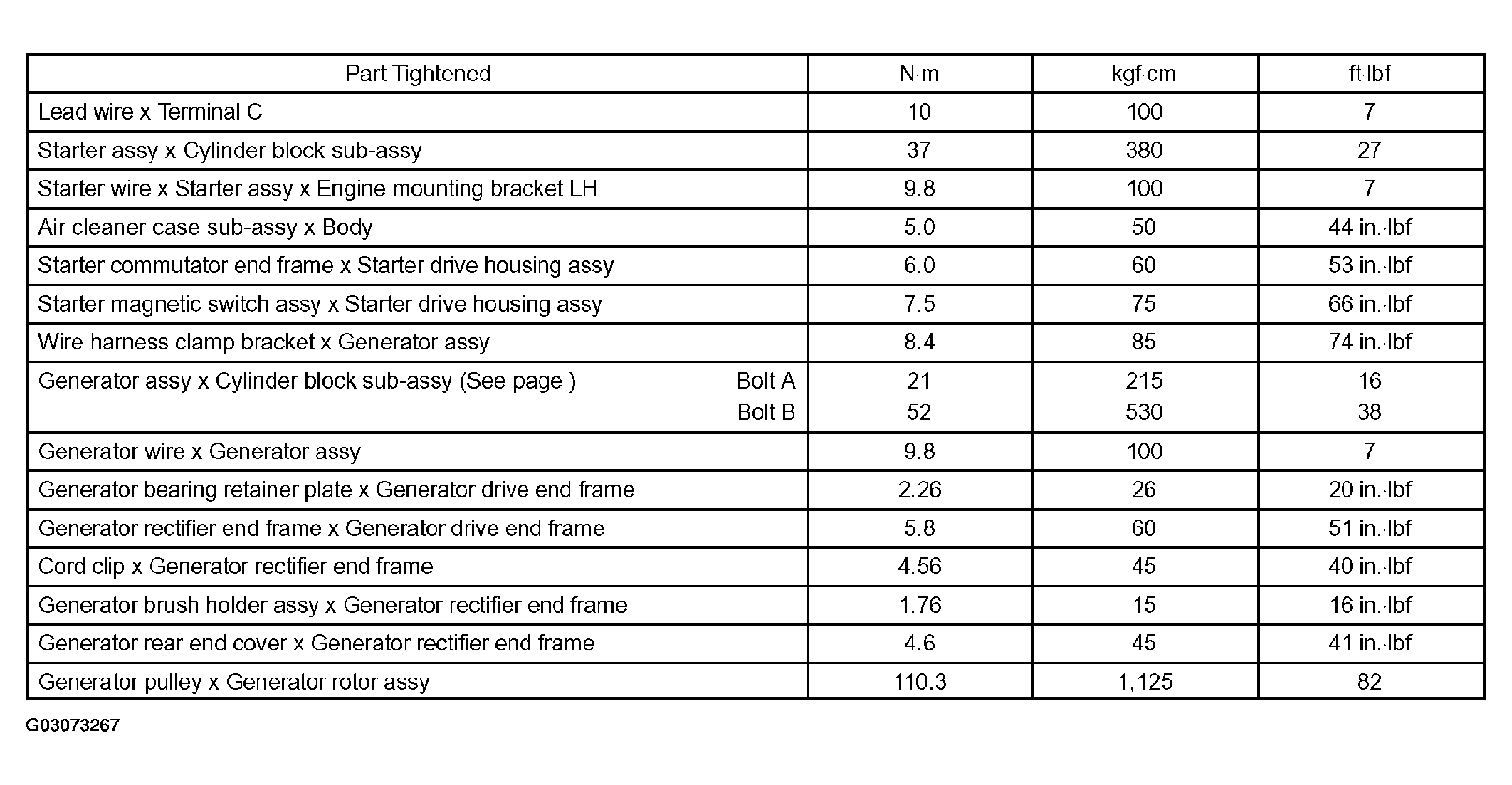

Fig 1: Starting System Torque Specifications (2AZ-FE) Chart
G03073267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
