Torque Specifications

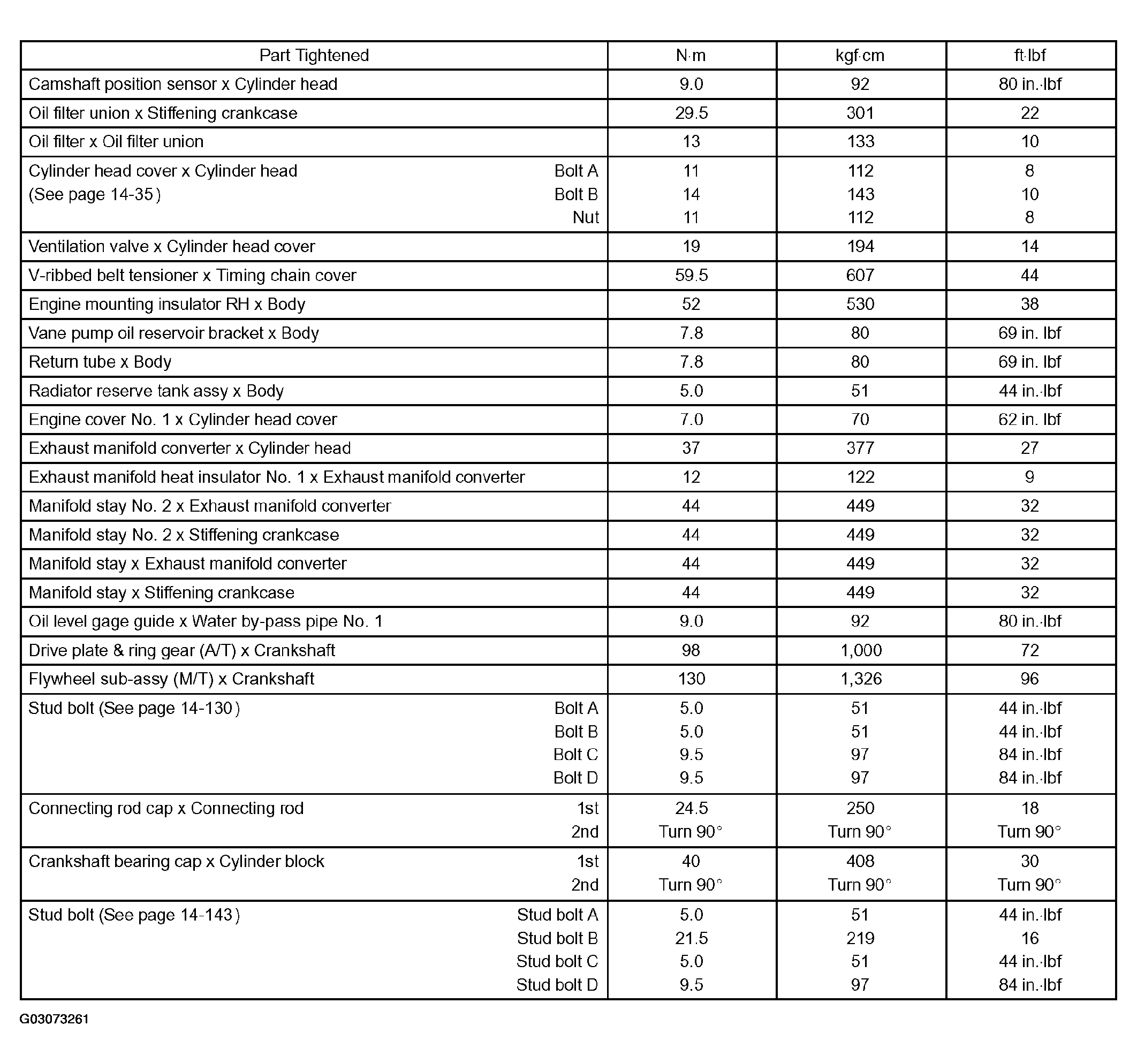

Fig 1: Engine Mechanical Torque Specifications Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Mechanical Torque Specifications Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
