Power Steering System - Service Specifications
>>
Power Steering System
>>
Torque Specifications
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Torque Specifications

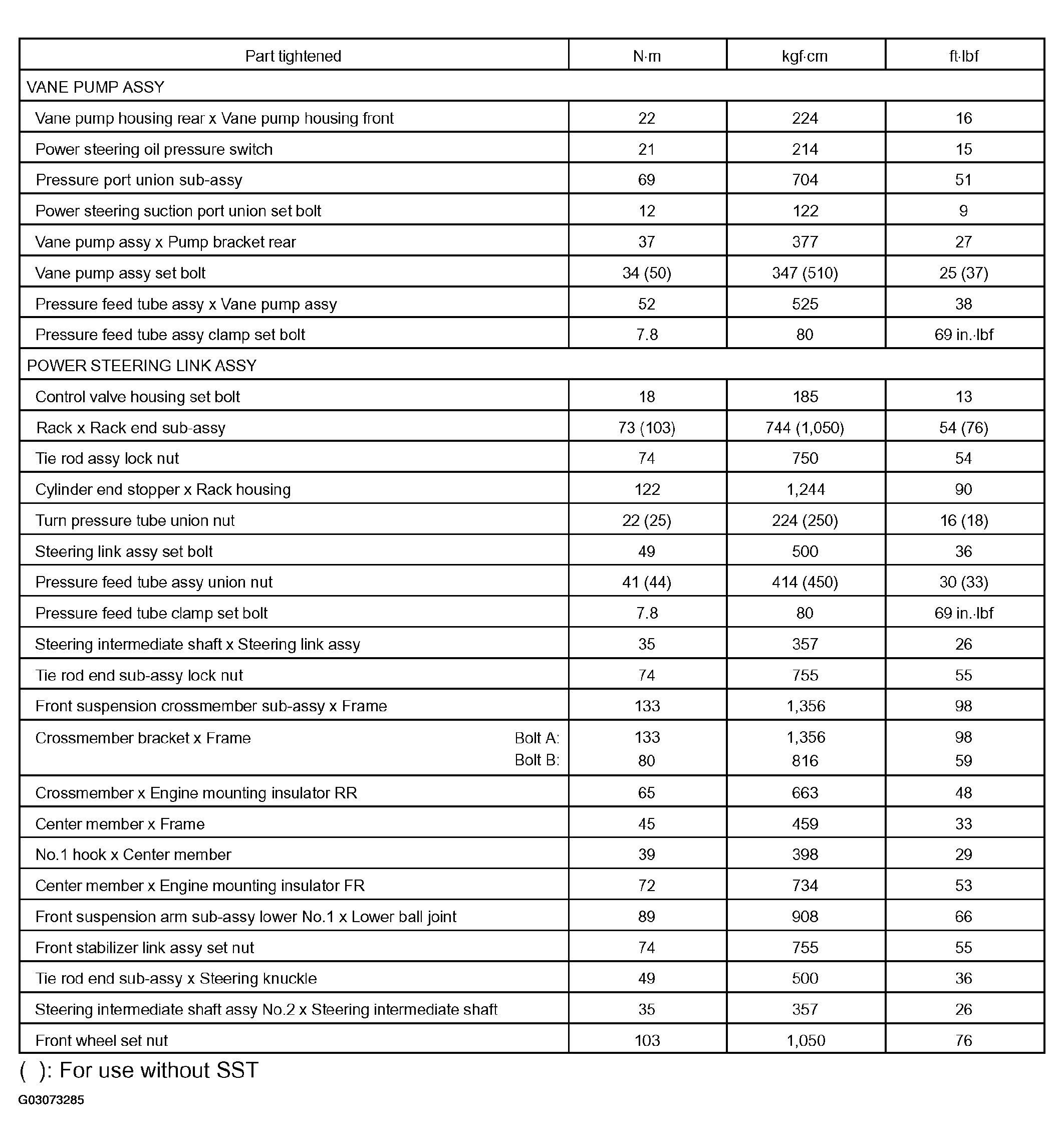

Fig 1: Power Steering Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
