Abs With EBD System: Location

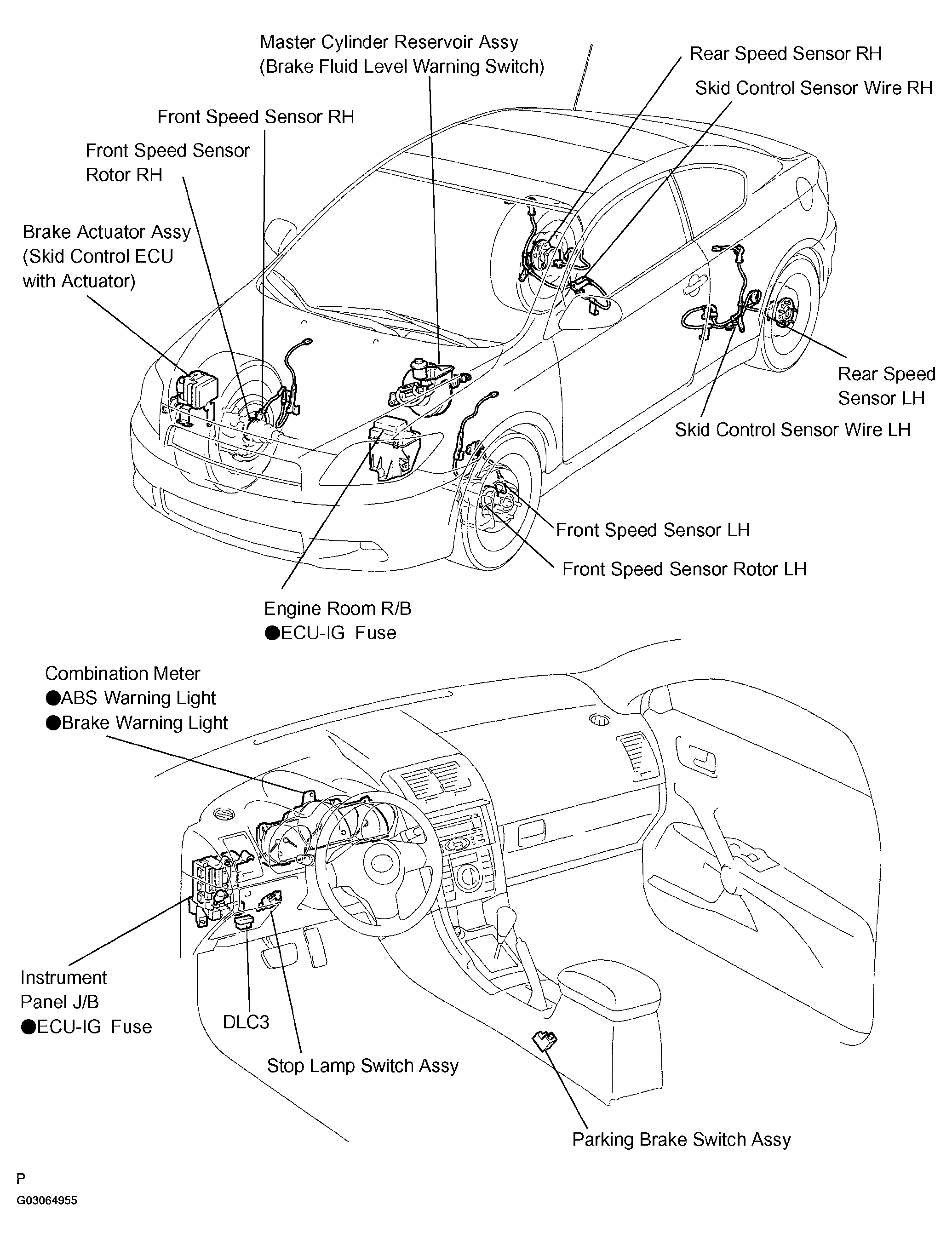

Fig 1: Locating ABS With EBD System Components
G03064955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
