Torque Specifications

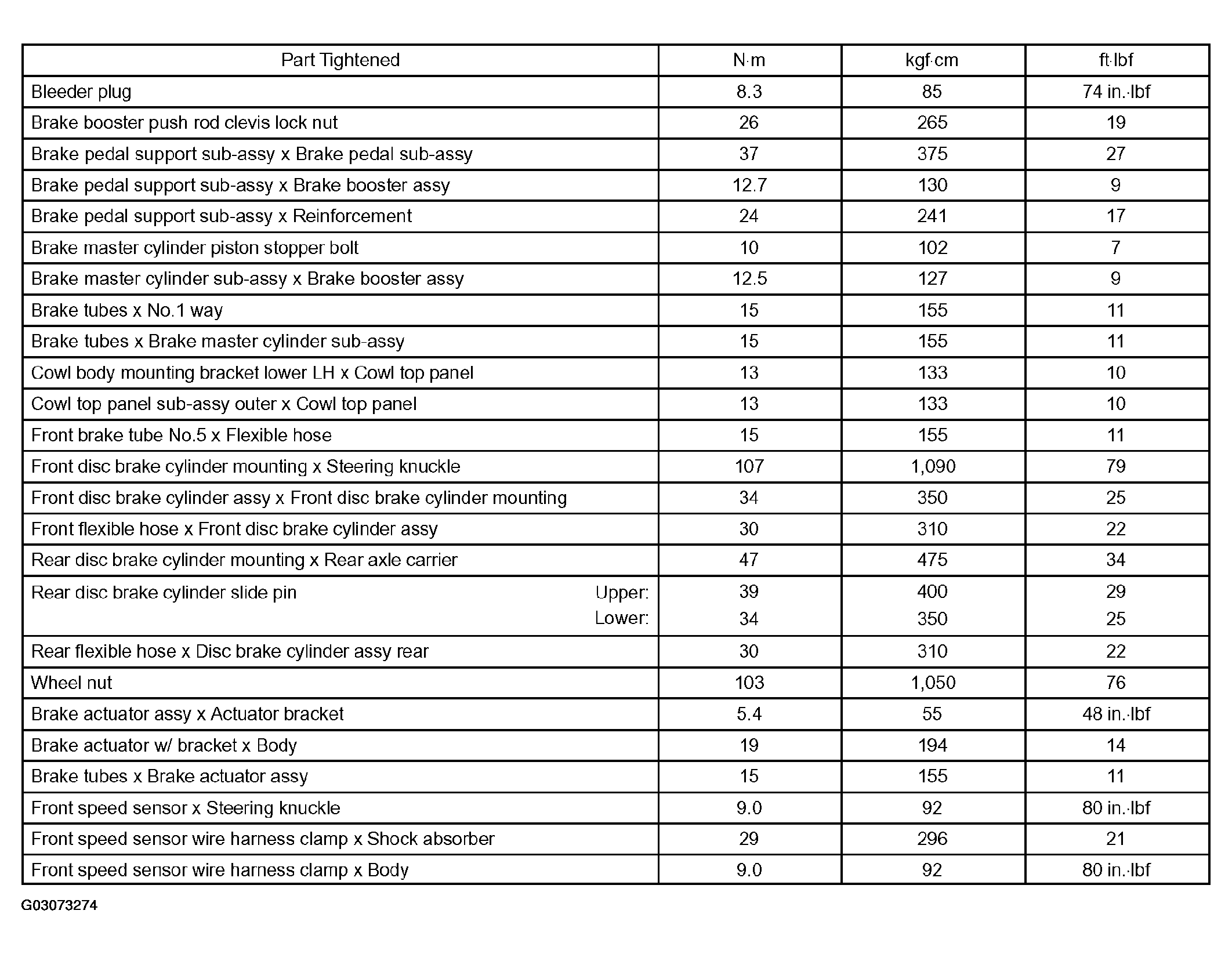

Fig 1: Brake Components Torque Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
