Steering Column ASSY: Components

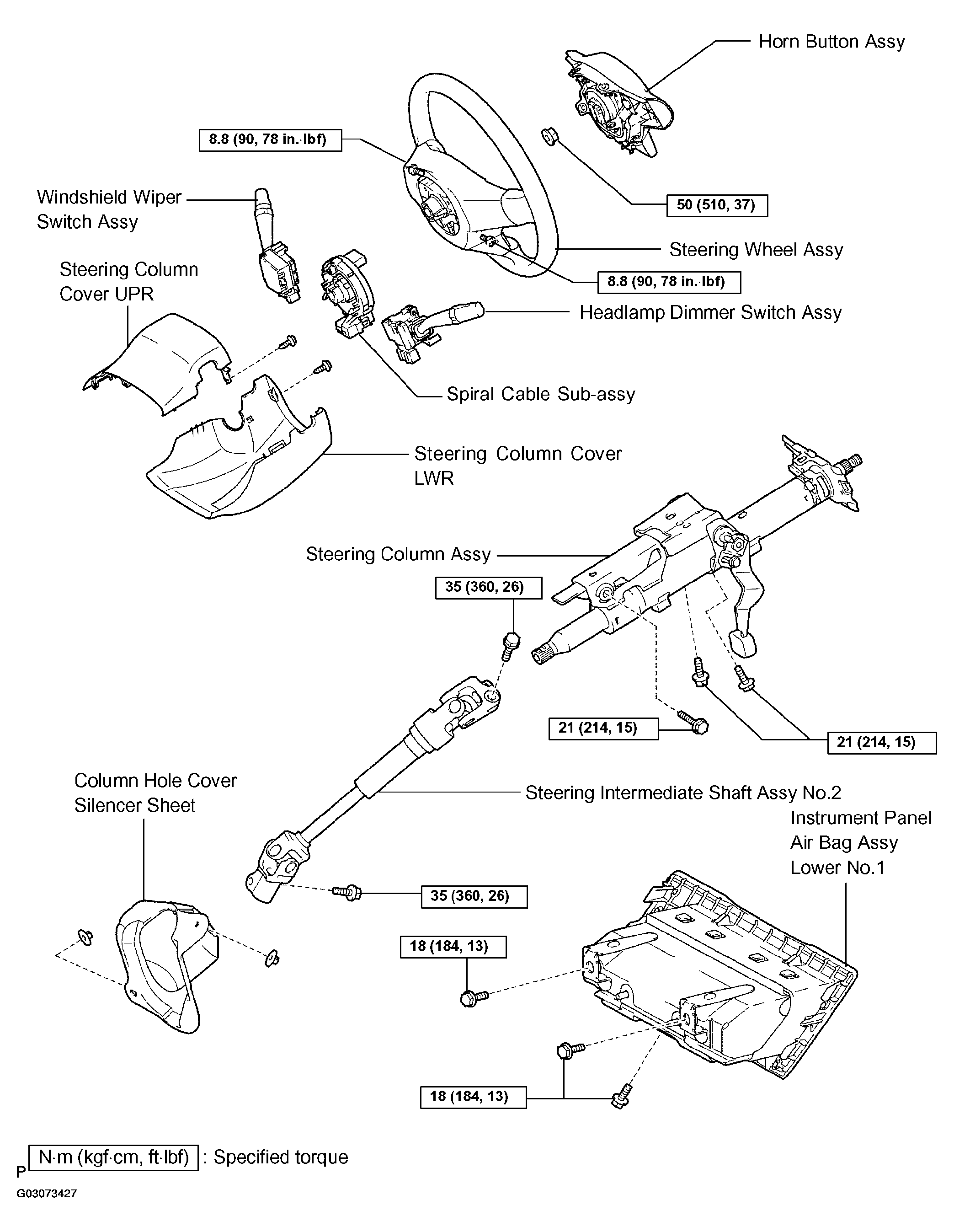

Fig 1: Identifying Steering Column Assy Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

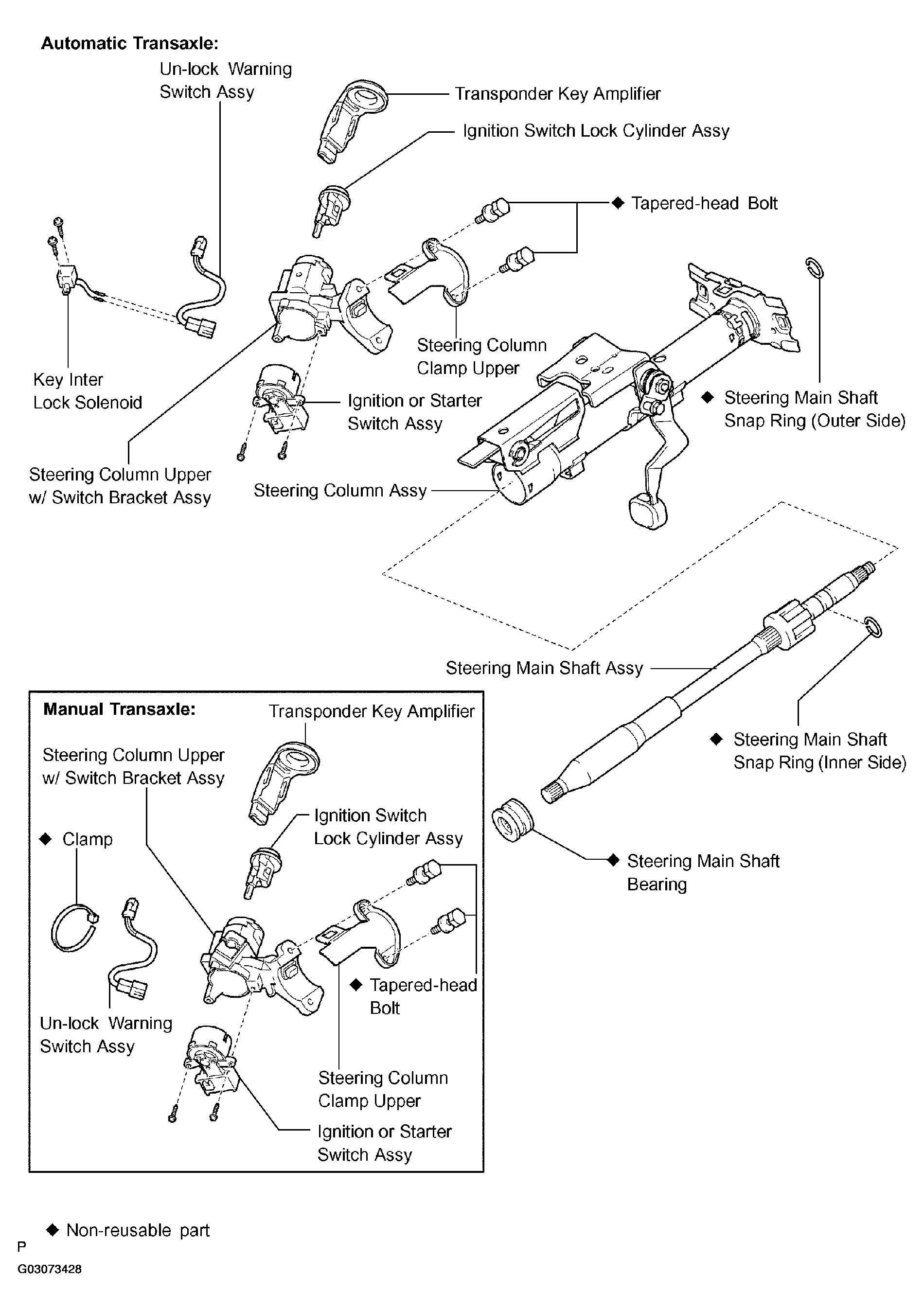

Fig 2: Identifying Steering Column Assy Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
