Abs With EBD System: Location

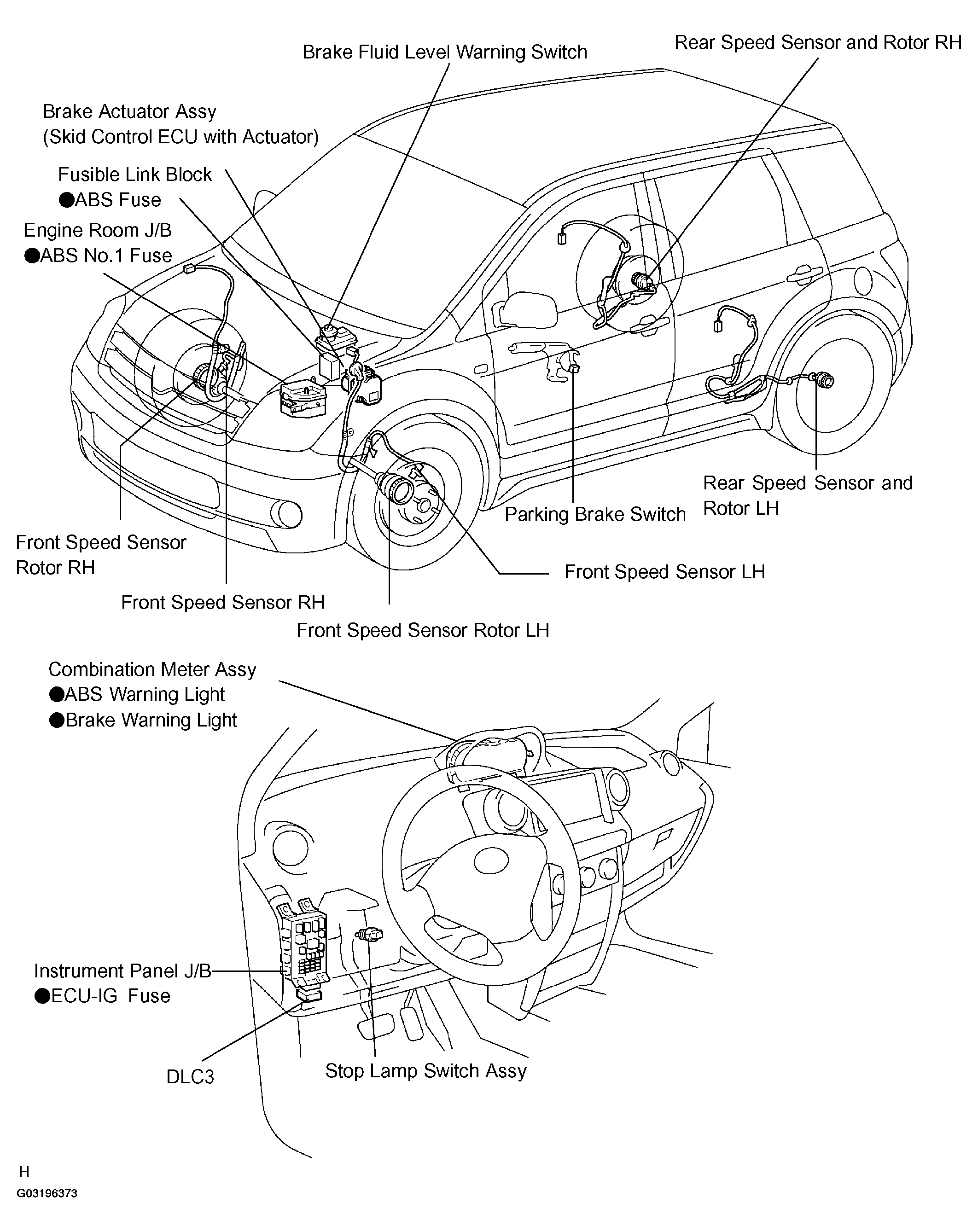

Fig 1: Identifying ABS With EBD System Components Location
G03196373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
