Power Source: Location

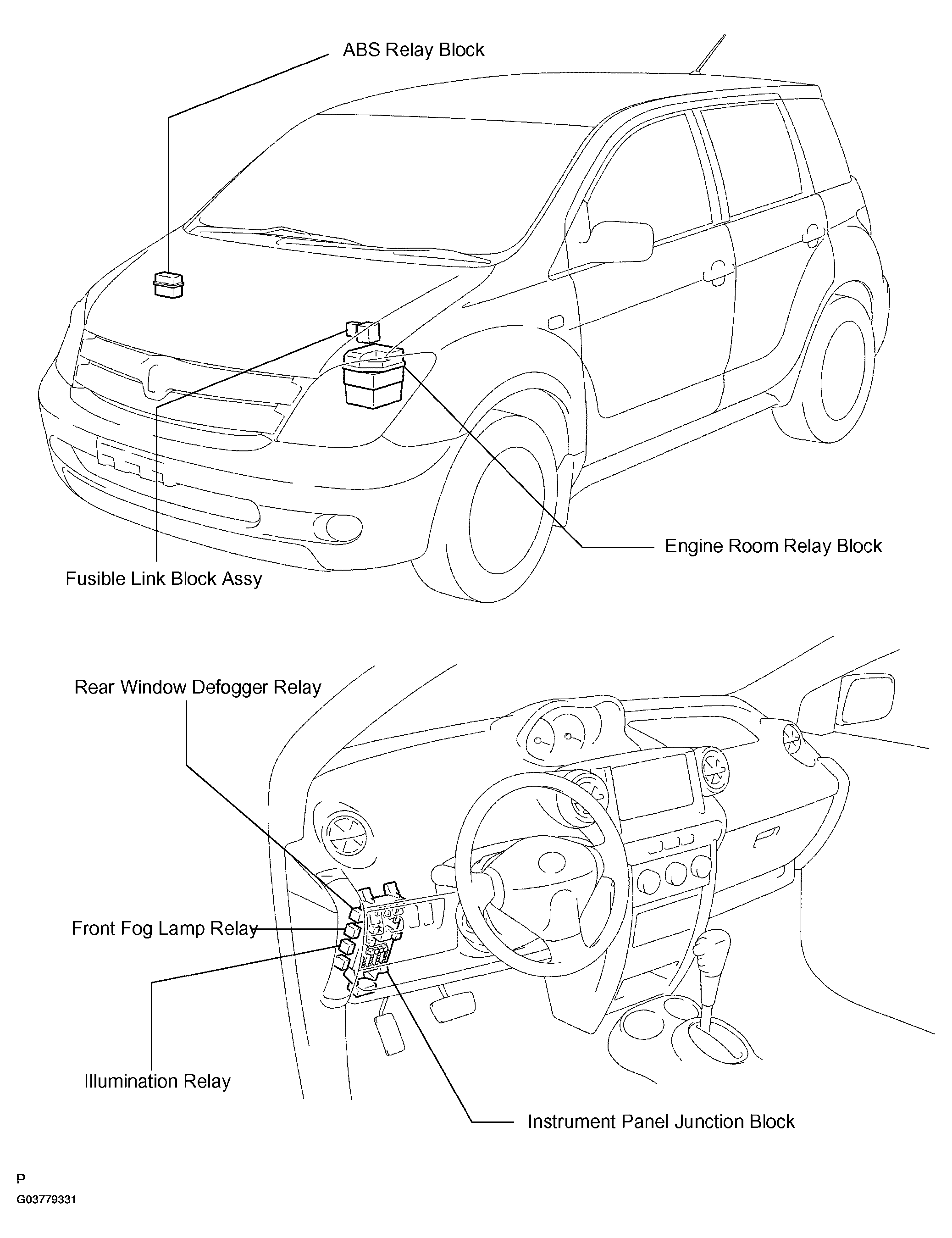

Fig 1: Identifying Wiring Power Source Components Location
G03779331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

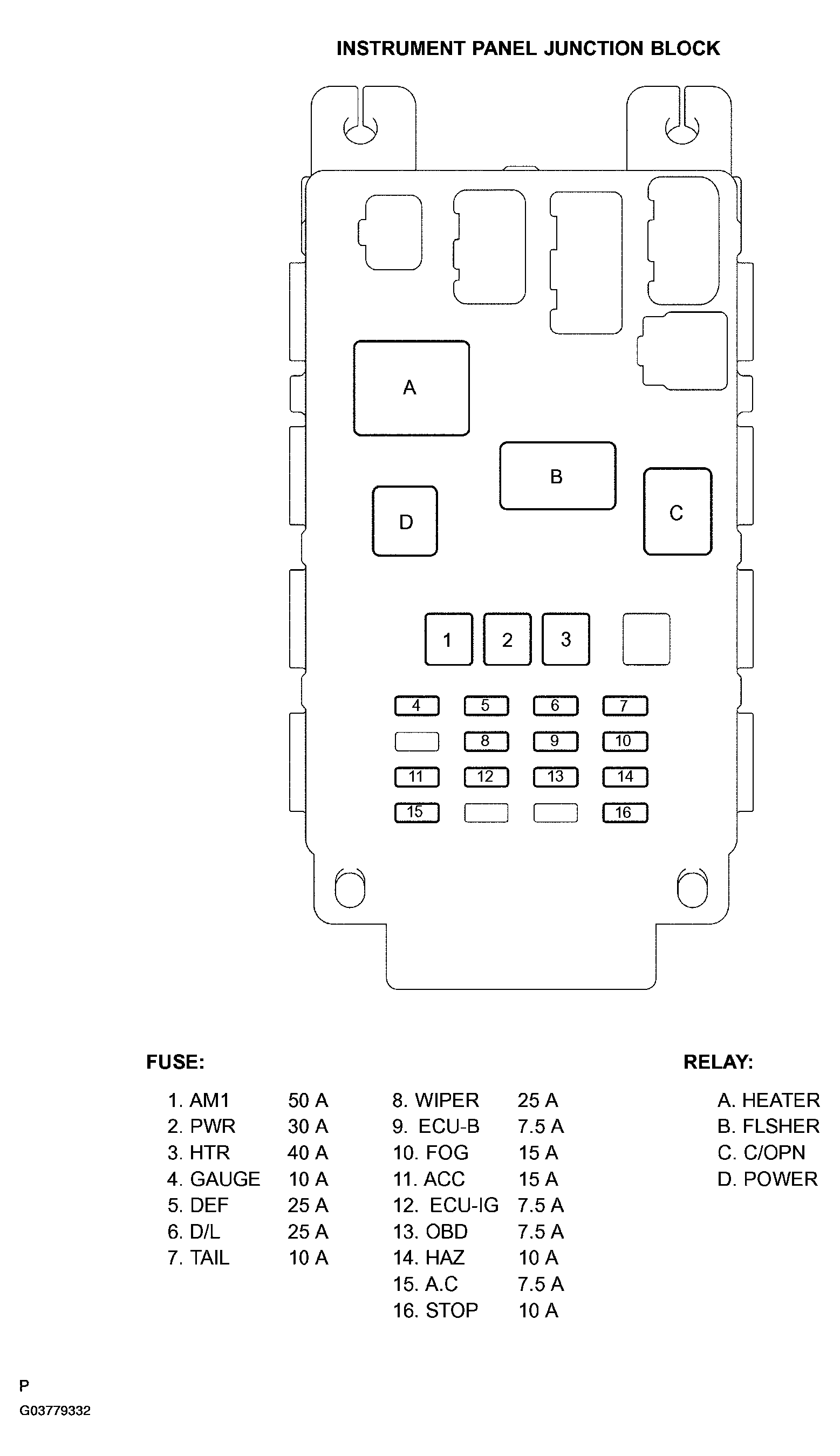

Fig 2: Identifying Instrument Panel Junction Block Fuse & Relay Location
G03779332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

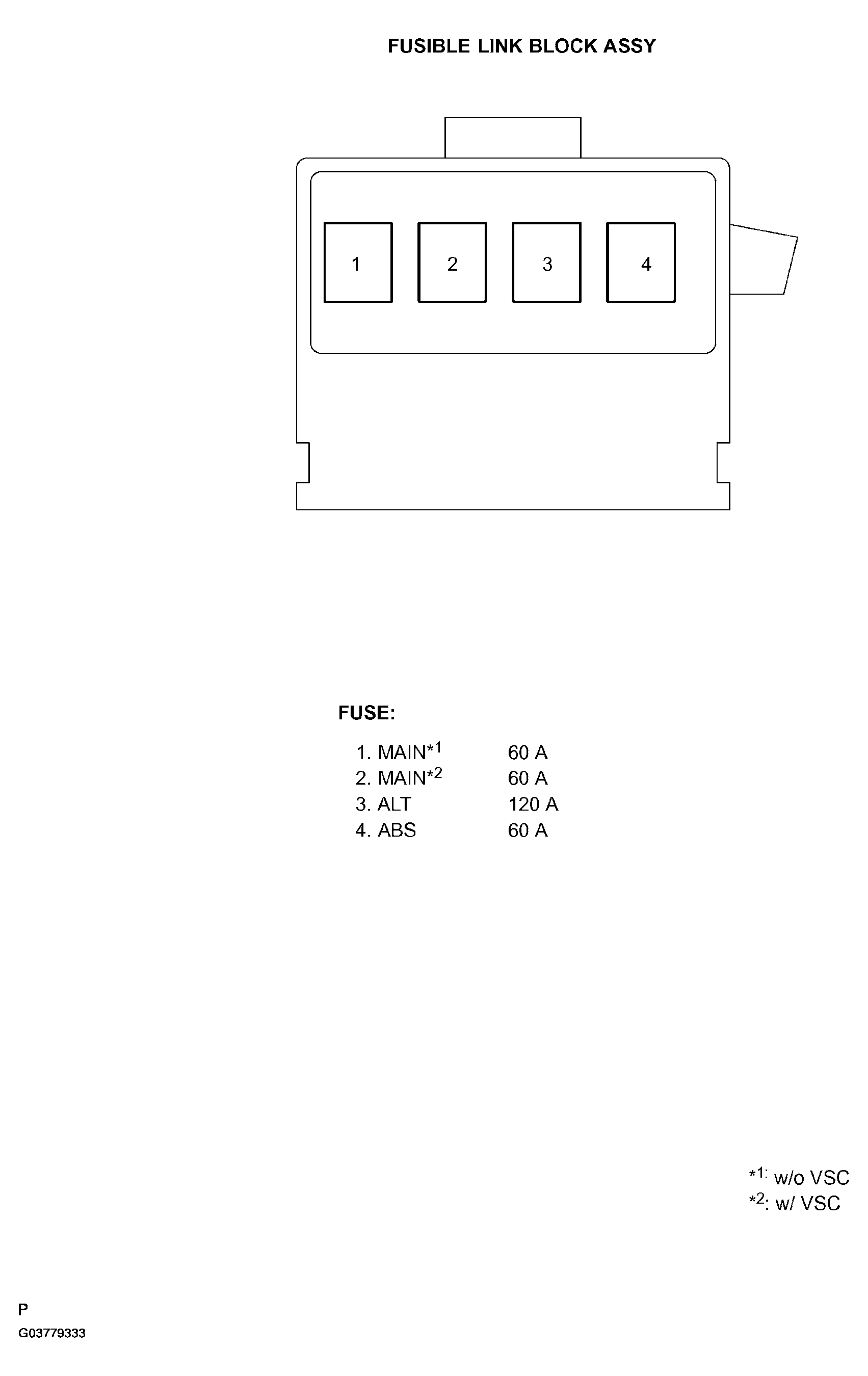

Fig 3: Identifying Fusible Link Block Assy
G03779333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

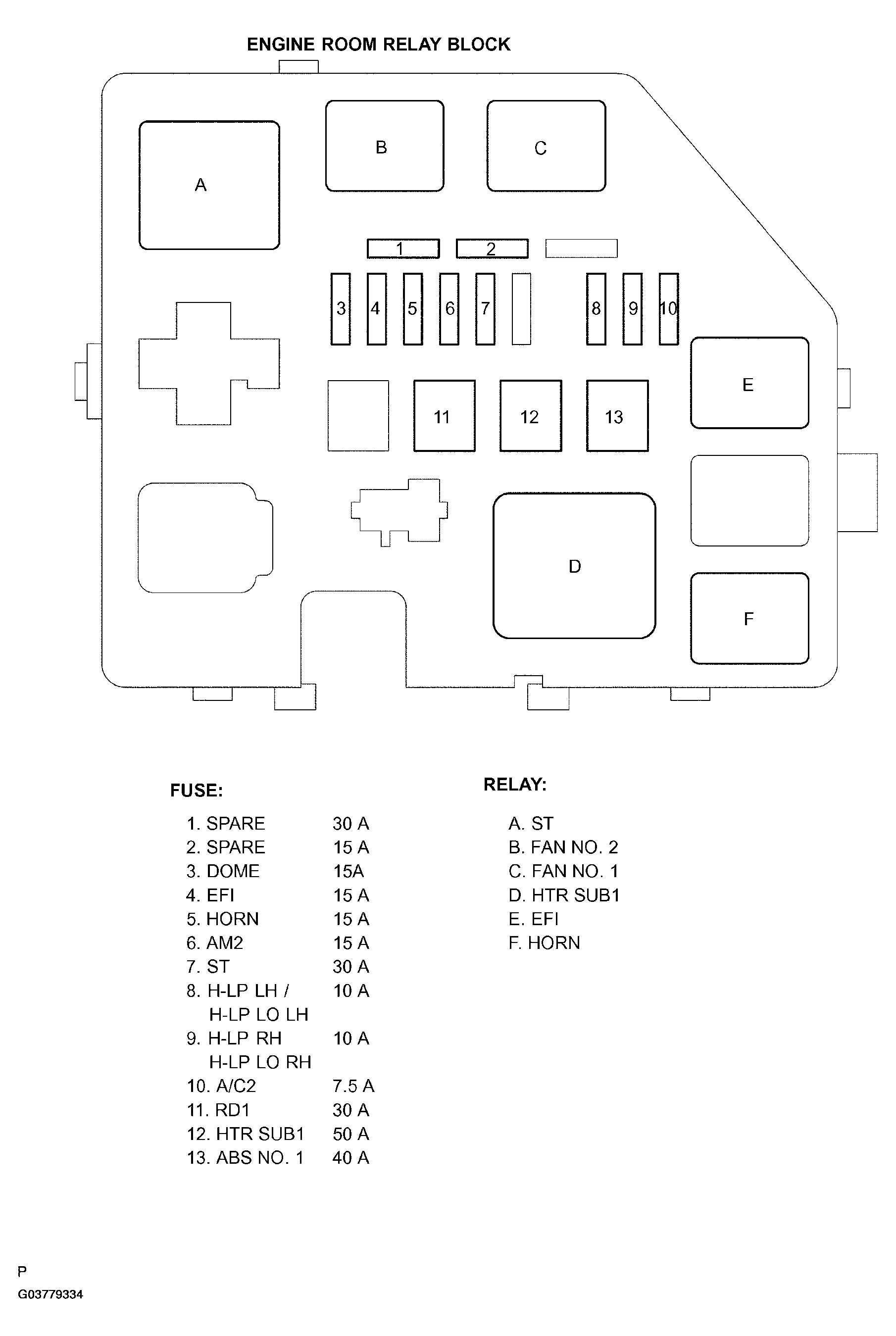

Fig 4: Identifying Engine Room Relay Block Fuse & Relay Location
G03779334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

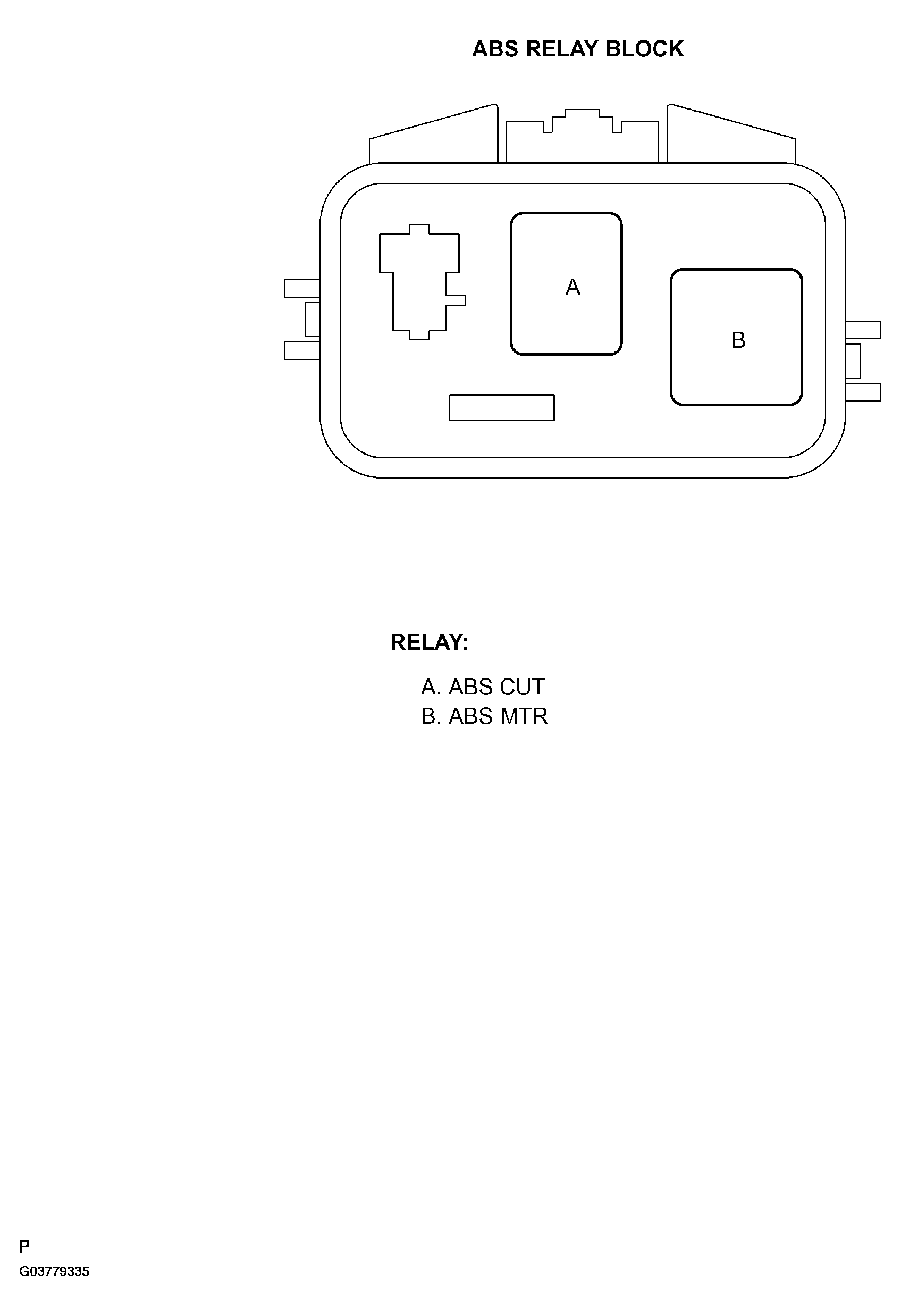

Fig 5: Identifying ABS Relay Block
G03779335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
