Engine Exhaust Assembly: Components: Notes

Fig 1: Identifying Exhaust Pipe Assy Components (1 Of 2)
G03197610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

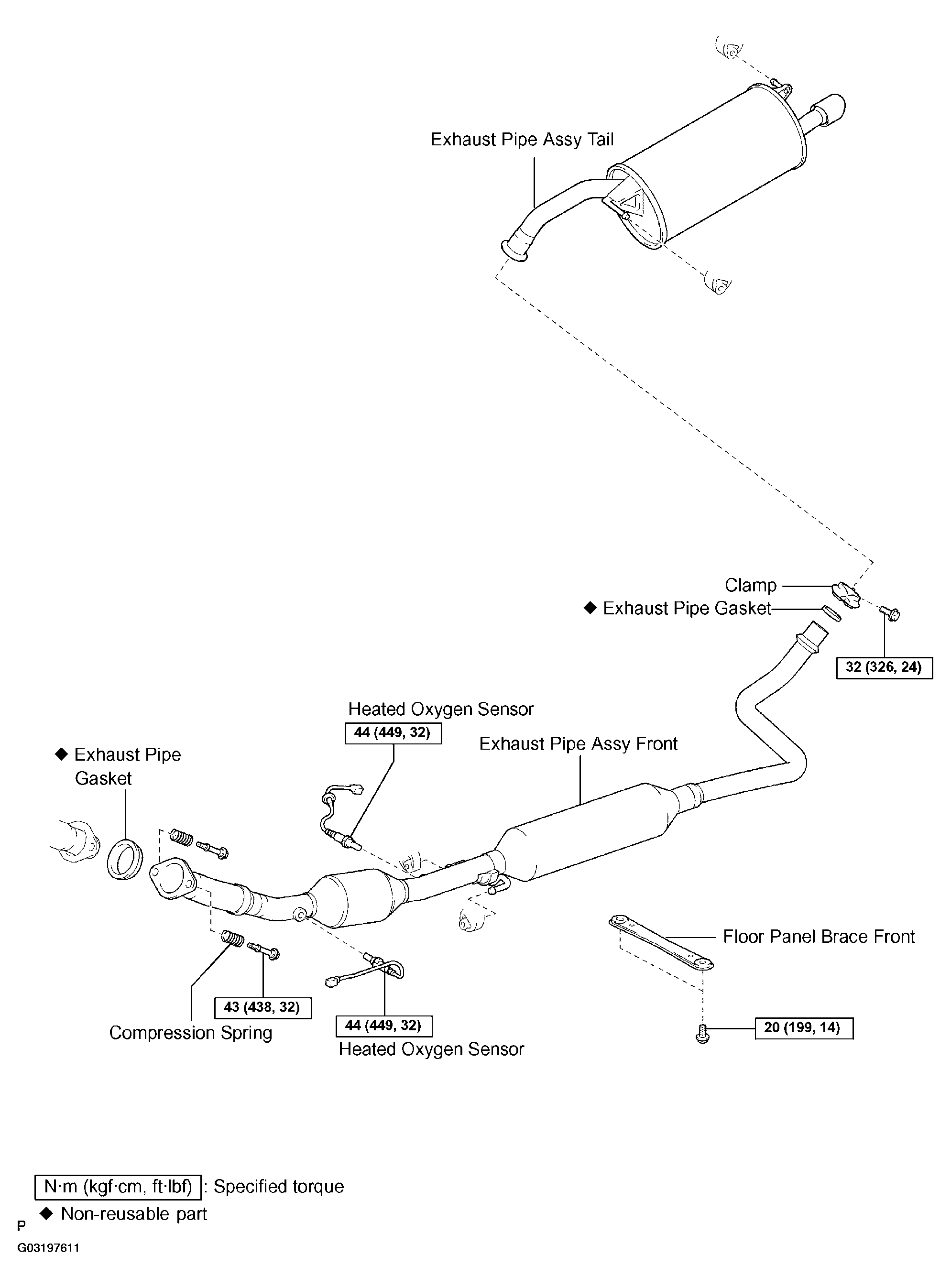

Fig 2: Identifying Exhaust Pipe Assy Components (2 Of 2)
G03197611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
