Inspection Procedure
- INSPECT UNLOCK WARNING SWITCH ASSY
- Remove the unlock warning switch.
- Measure the resistance of the switch.
Standard:

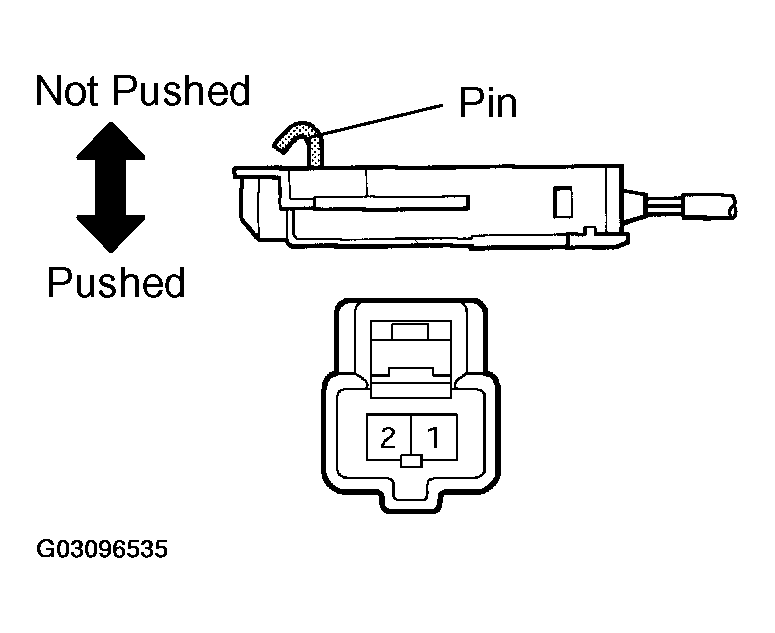

UNLOCK WARNING SWITCH RESISTANCE SPECIFICATIONSTester Connection Switch Condition Specified Condition 1 - 2 Not pushed 10 kΩ or higher 1 - 2 Pushed Below 1 Ω - NG: REPLACE UNLOCK WARNING SWITCH ASSY
- OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (UNLOCK WARNING SWITCH ASSY - DOOR CONTROL RELAY ASSY AND BODY GROUND)
- Disconnect the U1 switch connector.
- Disconnect the D4 relay connector.
- Measure the resistance of the wire harness side connectors.
Standard:

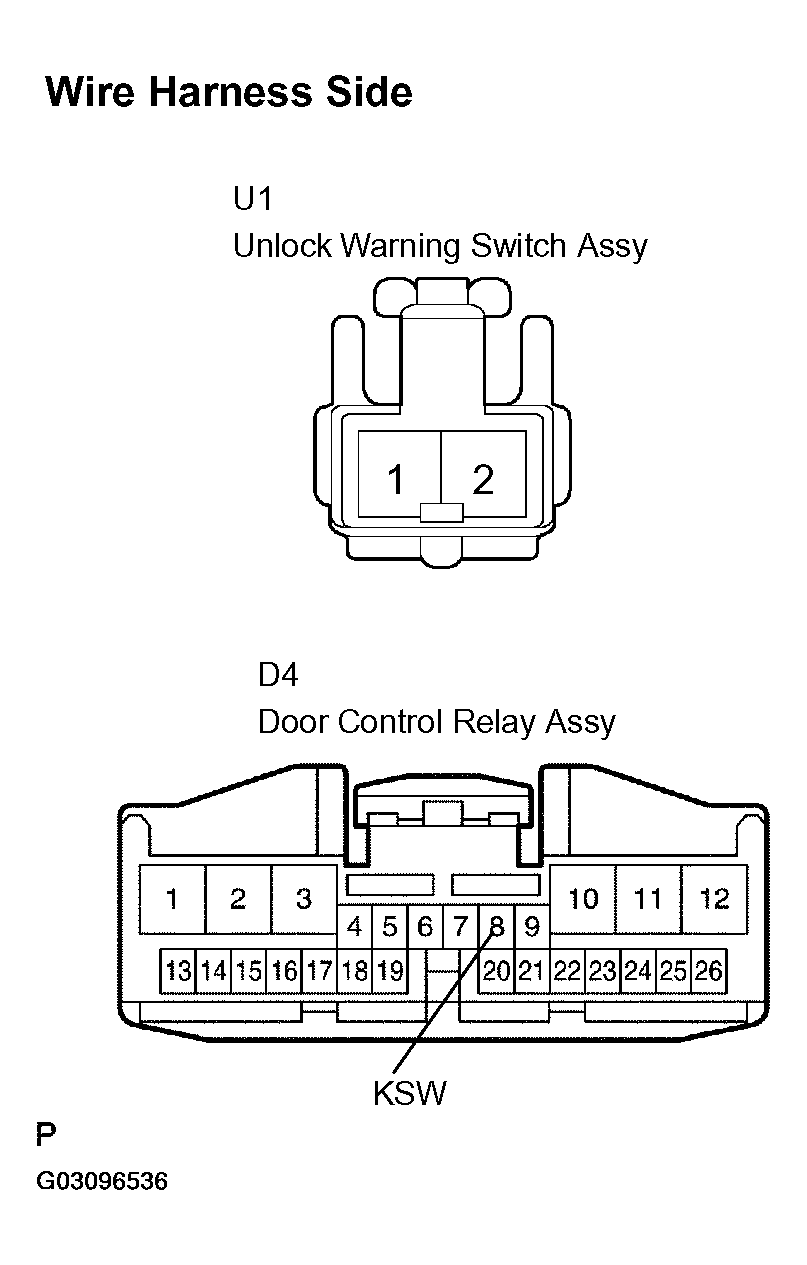

WIRE HARNESS SIDE CONNECTORS (U1 AND D4) RESISTANCE SPECIFICATIONSTester Connection Specified Condition U1-2 - D4-8 (KSW) Below 1 Ω U1-1 - Body ground Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
- INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
- Remove the courtesy lamp switch.
- Measure the resistance of the switch.
Standard:

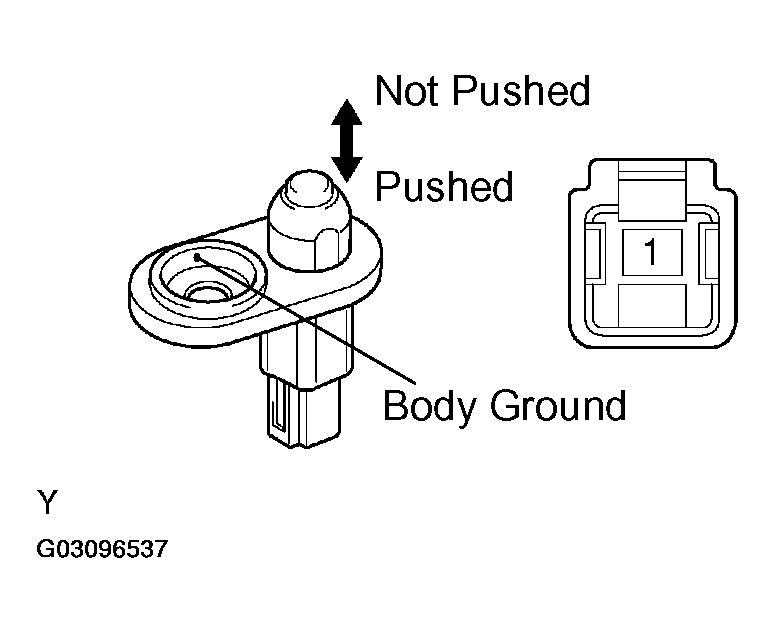

FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE) RESISTANCE SPECIFICATIONSTester Connection Switch Condition Specified Condition 1 - Body ground Not pushed Below 1 Ω 1 - Body ground Pushed 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
- OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE) - DOOR CONTROL RELAY ASSY)
- Disconnect the D5 switch connector.
- Disconnect the D4 relay connector.
- Measure the resistance of the wire harness side connectors.
Standard:

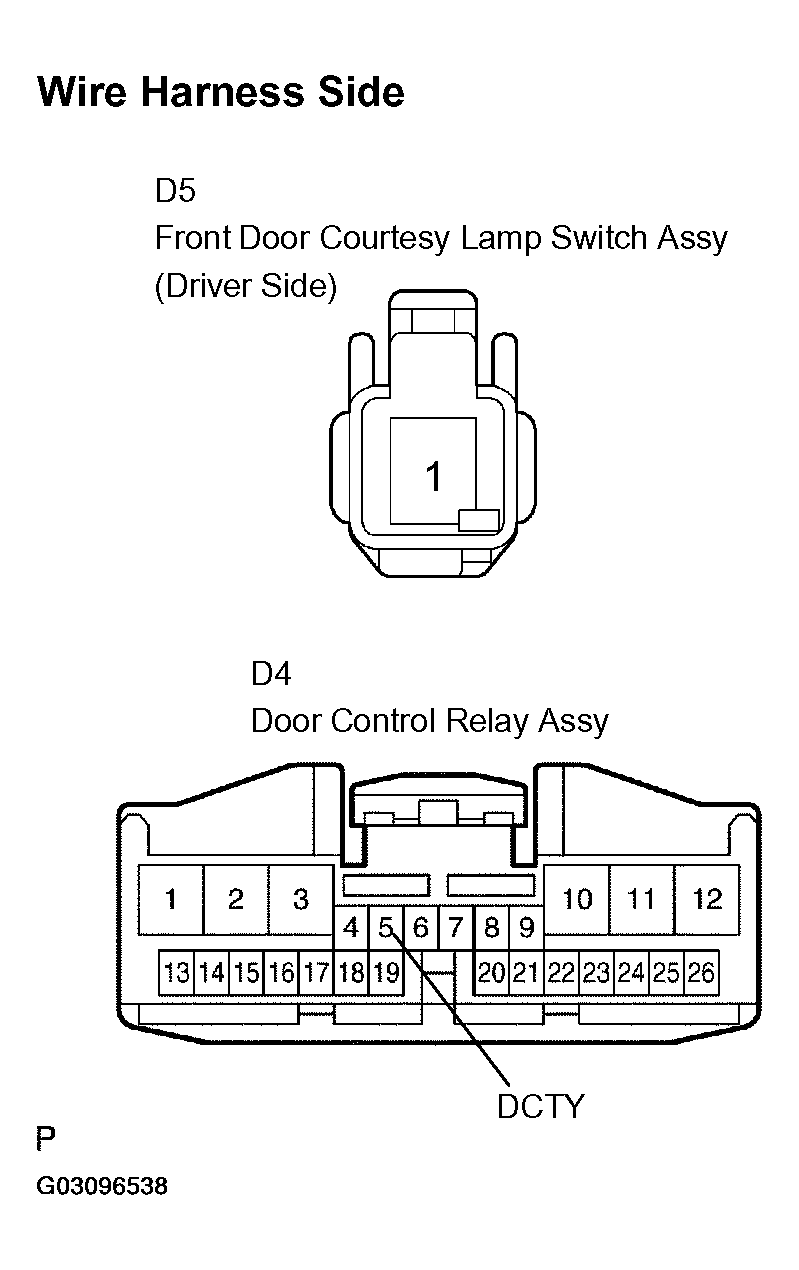

WIRE HARNESS SIDE CONNECTORS (D5 AND D4) RESISTANCE SPECIFICATIONSTester Connection Specified Condition D5-1 - D4-5 (DCTY) Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: REPLACE DOOR CONTROL RELAY ASSY
