Electronic Controlled Automatic Transaxle (ECT): Location

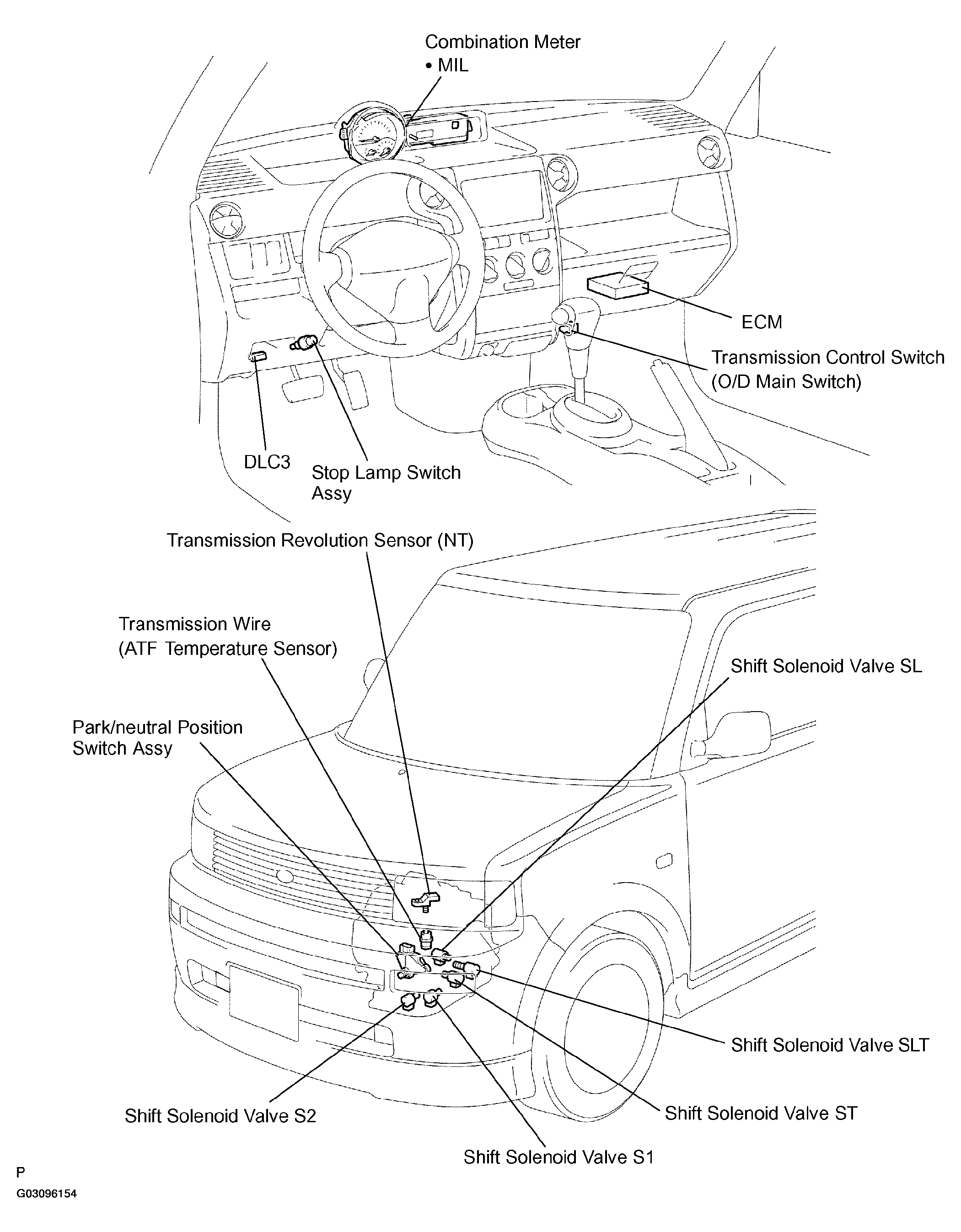

Fig 1: Identifying ECT Location
G03096154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
