Upper Instrument Panel: Components

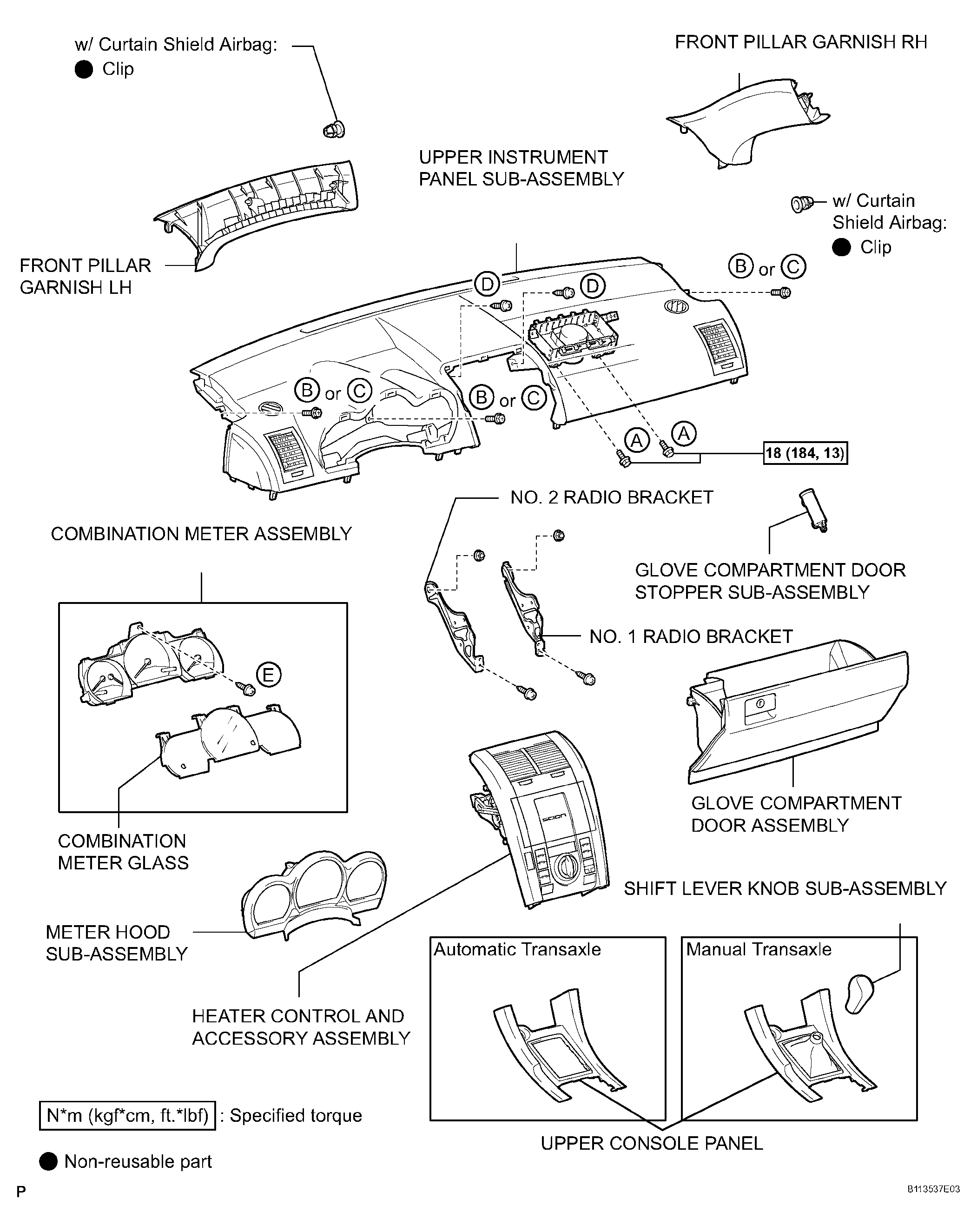

Fig 1: Identifying Upper Instrument Panel Components (1 Of 2)
G04224509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

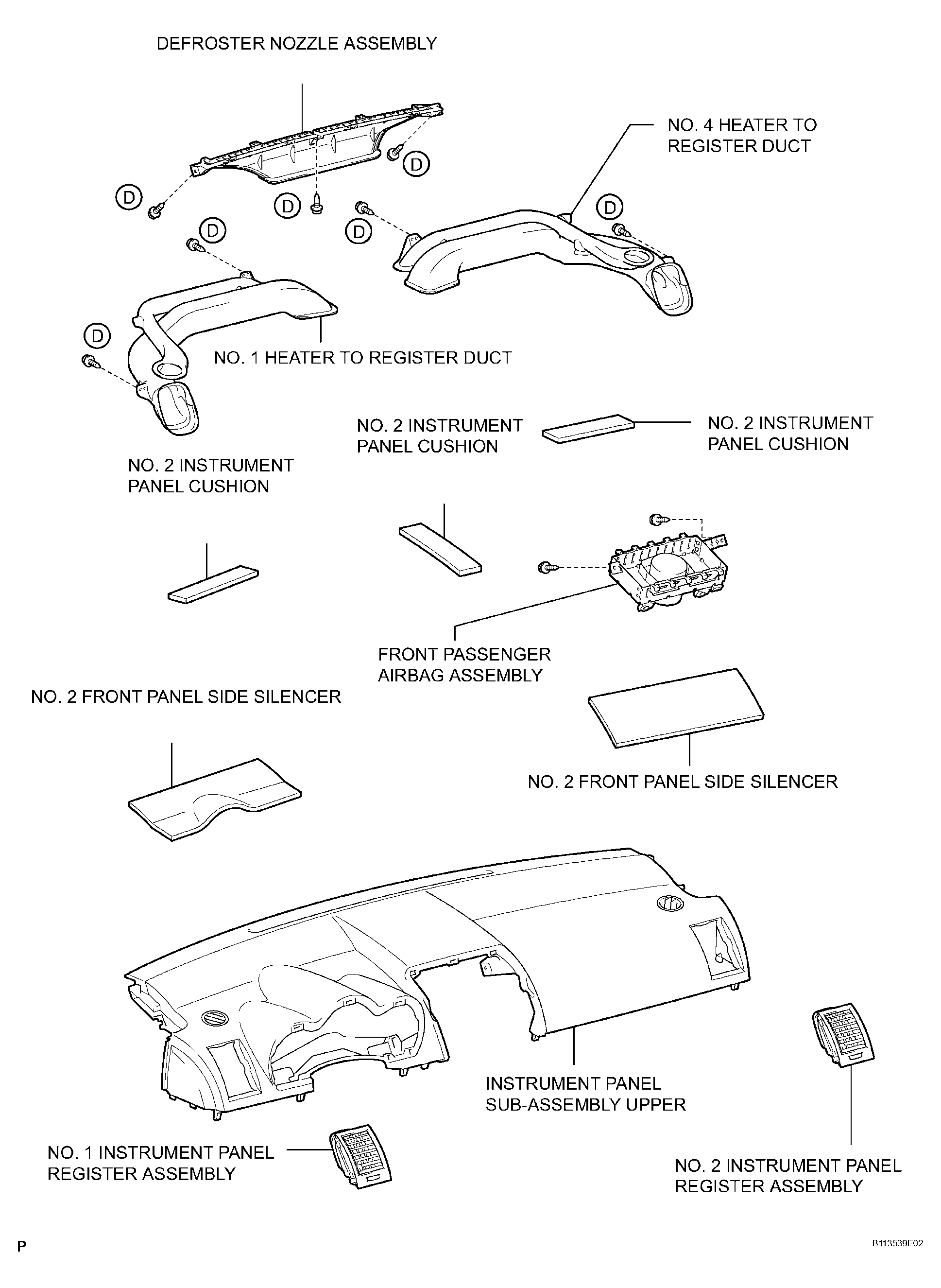

Fig 2: Identifying Upper Instrument Panel Components (2 Of 2)
G04224510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
