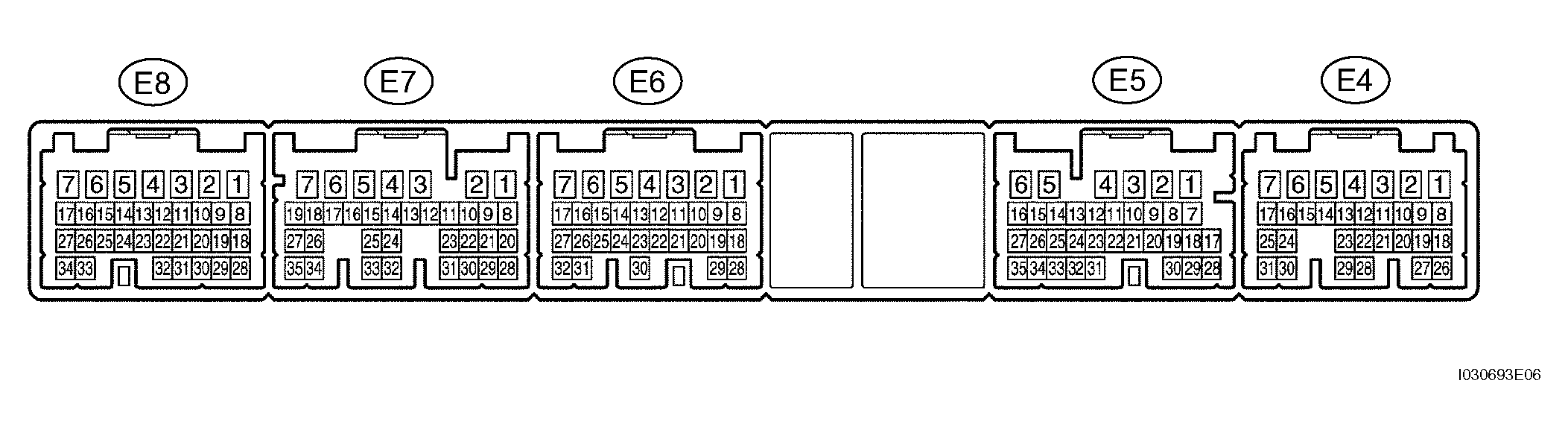

| TC (E4-20) - E1 (E6-1) |
R - L |
DTC output signal |
Ignition switch ON --> Connect terminals TC and CG of DLC3 |
10 to 14 V --> Below 2 V |
| D (E5-10) - E1 (E6-1) *1 |
R - L |
Clutch switch input signal |
Ignition switch ON, depress clutch pedal --> release clutch pedal |
Below 1 V --> 10 to 14 V |
| D (E5-10) - E1 (E6-1) *2 |
W - L |
Shift position input signal |
Ignition switch ON, shift D position --> any shift position except D |
10 to 14 V --> Below 1 V |
| ST1- (E5-12) - E1 (E6-1) |
L - L |
Cruise cancel input signal |
Ignition switch ON, depress brake pedal --> release brake pedal |
Below 1 V --> 10 to 14 V |
| PI (E5-13) - E1 (E6-1) |
B - L |
Cruise main indicator light input signal |
Ignition switch ON, cruise control main switch ON |
Below 1 V --> 10 to 14 V |
| STP (E5-19) - E1 (E6-1) |
L - L |
Stop light switch input signal |
Ignition switch ON, depress brake pedal --> release brake pedal |
10 to 14 V --> Below 1 V |
| CCS (E5-24) - E1 (E6-1) |
Y - L |
Cruise control main switch input signal |
Ignition switch ON |
10 to 14 V |
| CCS (E5-24) - E1 (E6-1) |
Y - L |
Cruise control main switch input signal |
CANCEL switch held ON |
6.6 to 10.1 V |
| CCS (E5-24) - E1 (E6-1) |
Y - L |
Cruise control main switch input signal |
SET / - switch held ON |
4.5 to 7.1 V |
| CCS (E5-24) - E1 (E6-1) |
Y - L |
Cruise control main switch input signal |
RES / + switch held ON |
2.3 to 4 V |
| CCS (E5-24) - E1 (E6-1) |
Y - L |
Cruise control main switch input signal |
MAIN switch held ON |
Below 1 V |
HINT:
*1: Manual Transaxle
*2: Automatic Transaxle |
