Wireless Door Lock Control

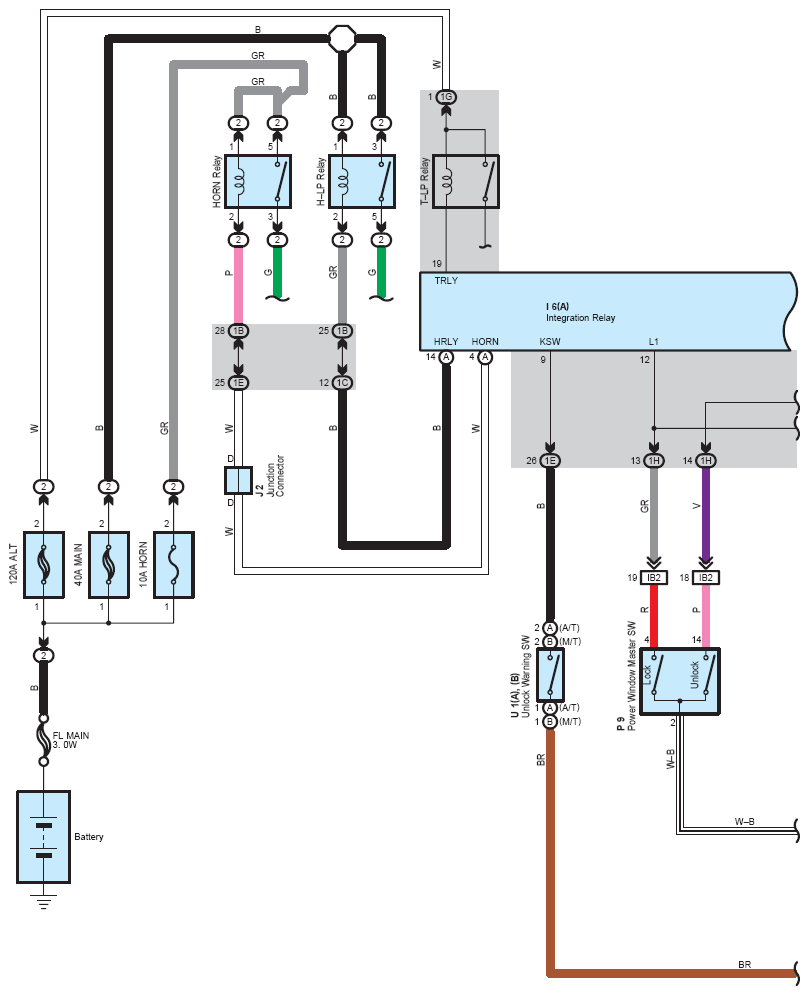

Fig 1: Wireless Door Lock Control System Wiring Diagram (1 Of 4)
G08758335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wireless Door Lock Control System Wiring Diagram (2 Of 4)
G08758336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

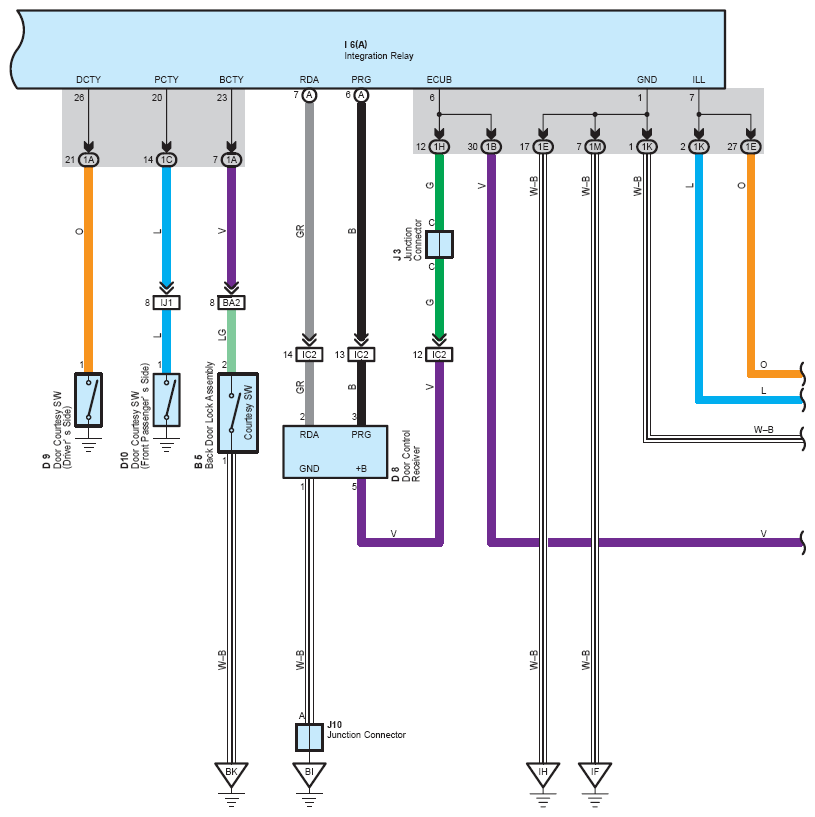

Fig 3: Wireless Door Lock Control System Wiring Diagram (3 Of 4)
G08758337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

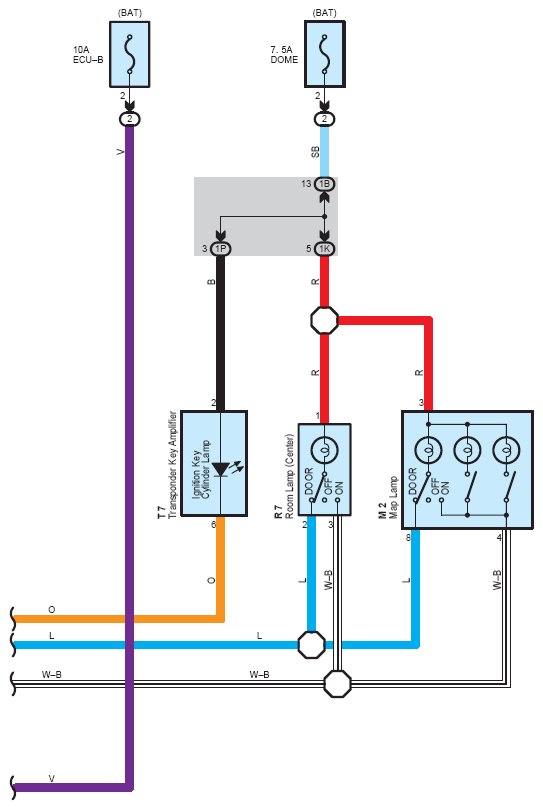

Fig 4: Wireless Door Lock Control System Wiring Diagram (4 Of 4)
G08758338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
