Oil Pump: Components

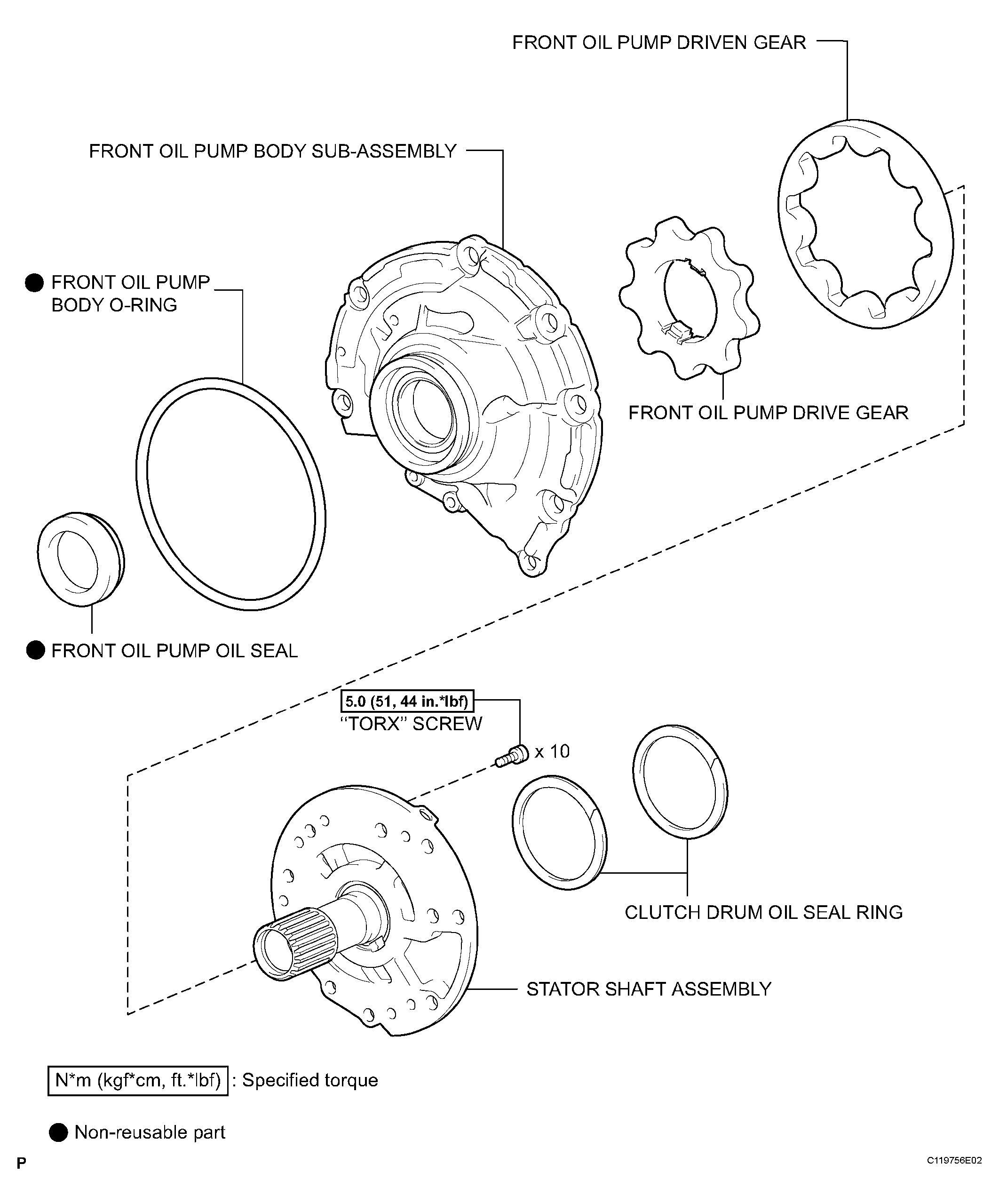

Fig 1: Identifying Oil Pump Components
G04154343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
