Transaxle Rear Cover: Components

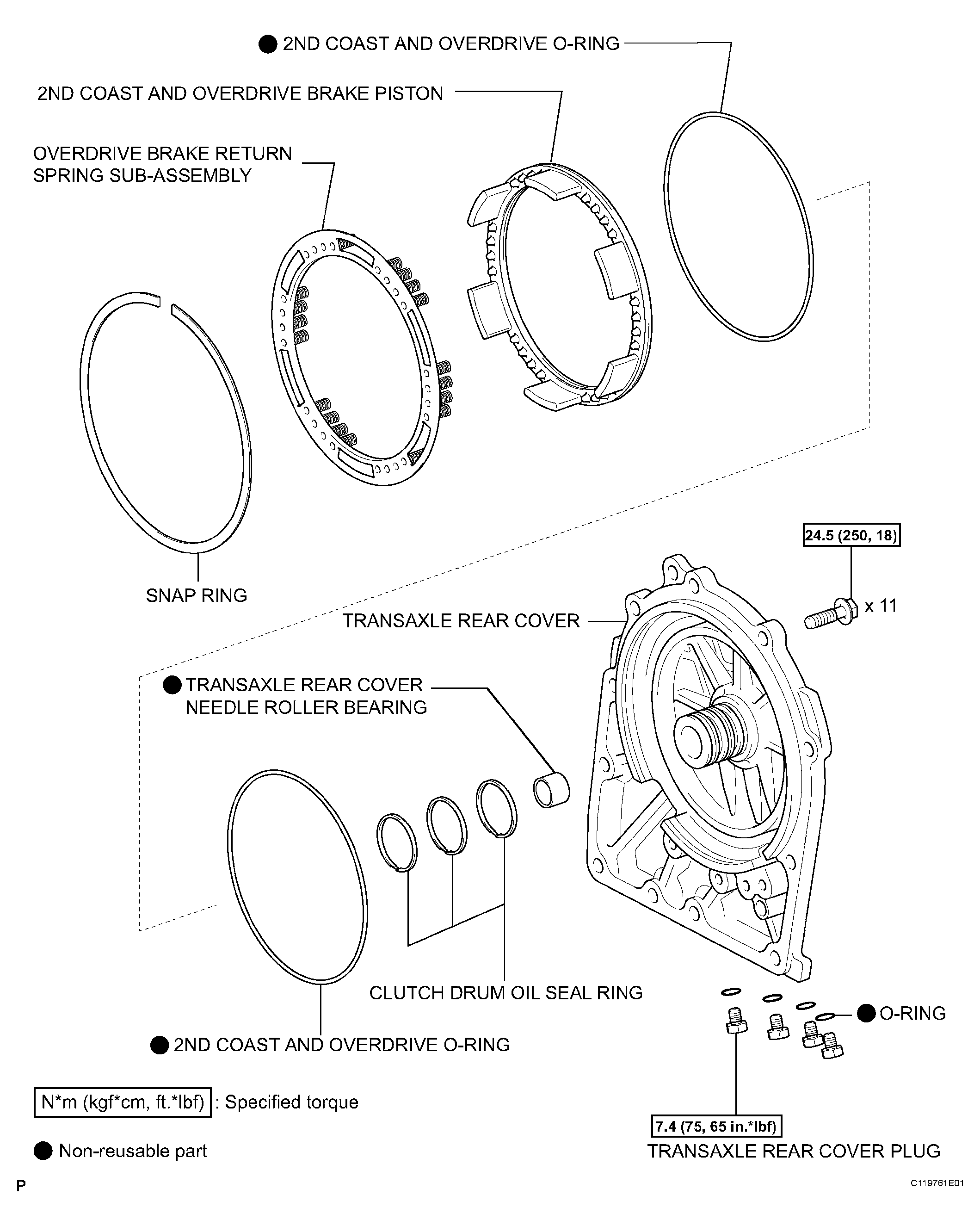

Fig 1: Identifying Transaxle Rear Cover Components
G04154412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
