System Diagram

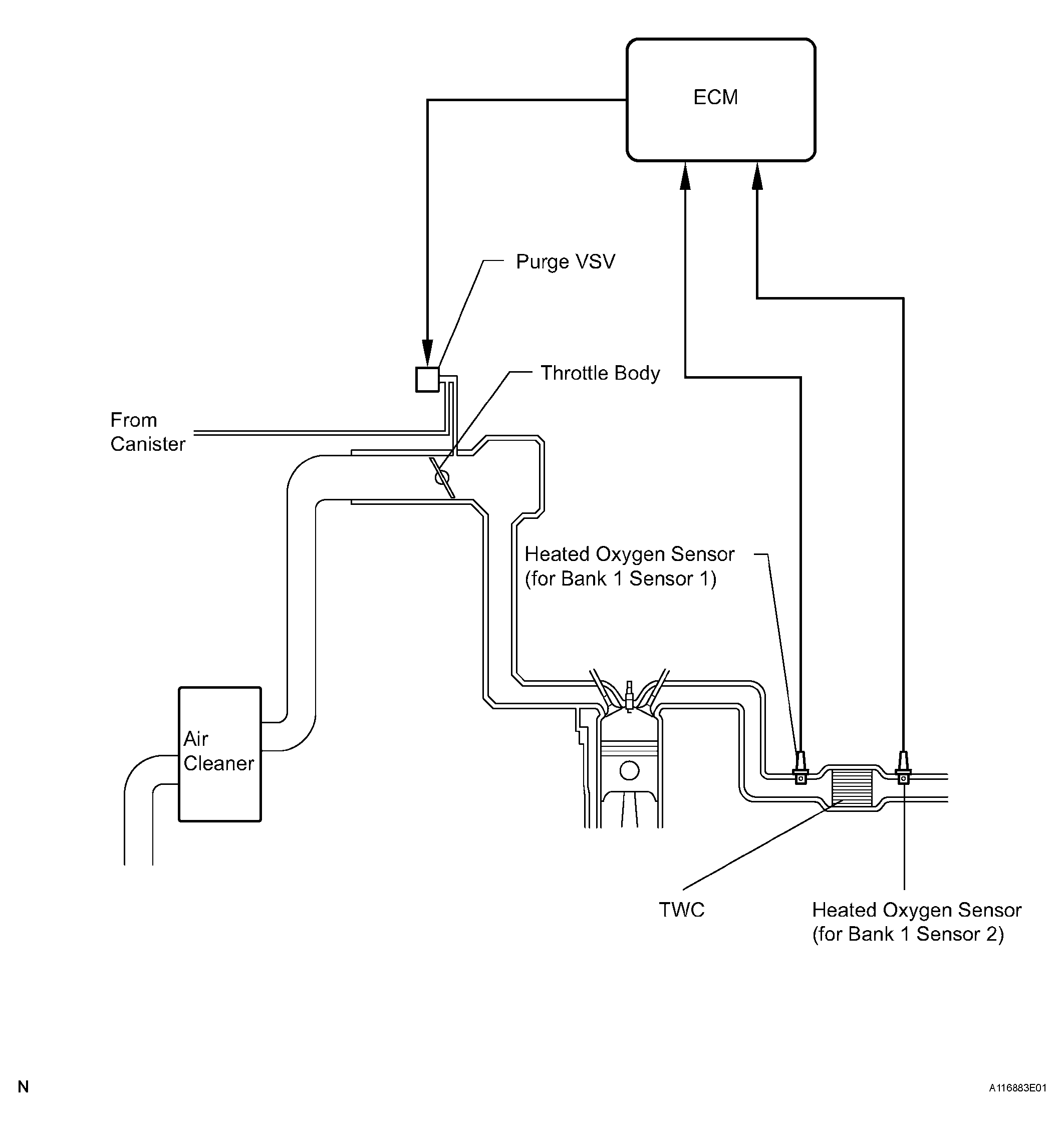

Fig 1: Emission Control System Diagram (1 Of 2)
G04153668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

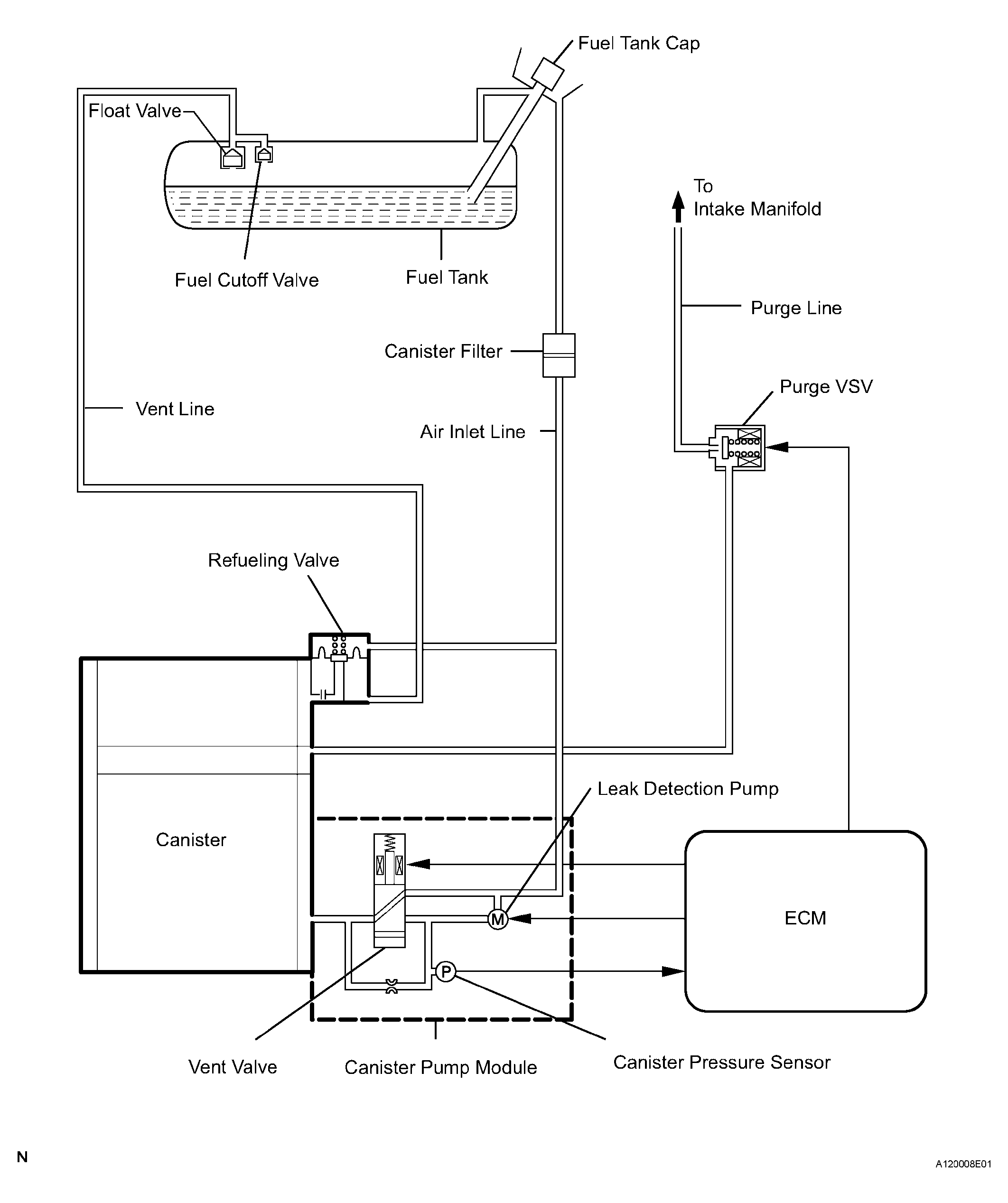

Fig 2: Emission Control System Diagram (2 Of 2)
G04153669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

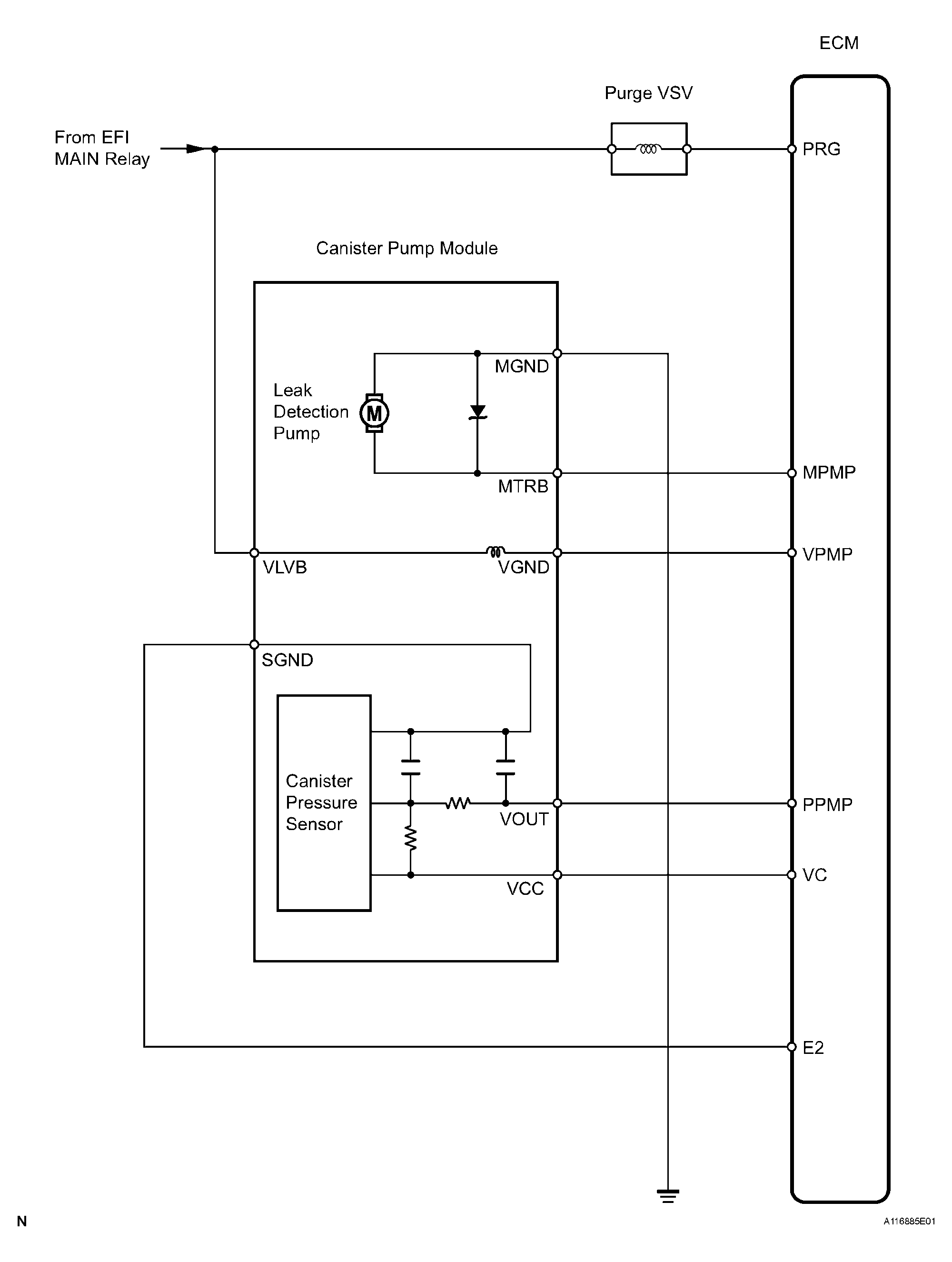

Fig 3: Circuit Diagram - Emission Control System (1 Of 2)
G04153670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

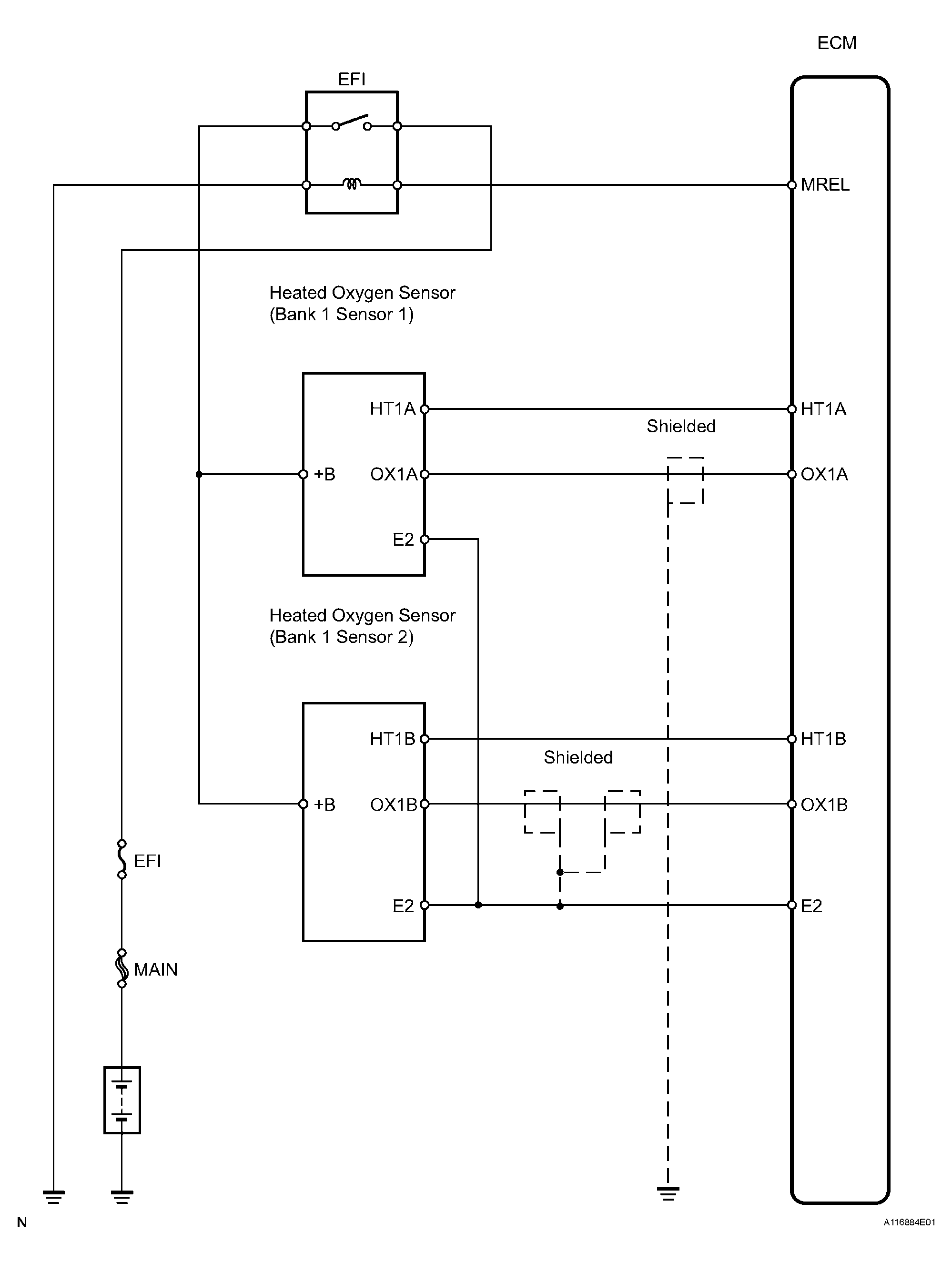

Fig 4: Circuit Diagram - Emission Control System (2 Of 2)
G04153671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
