Wireless Door Lock Control: Notes

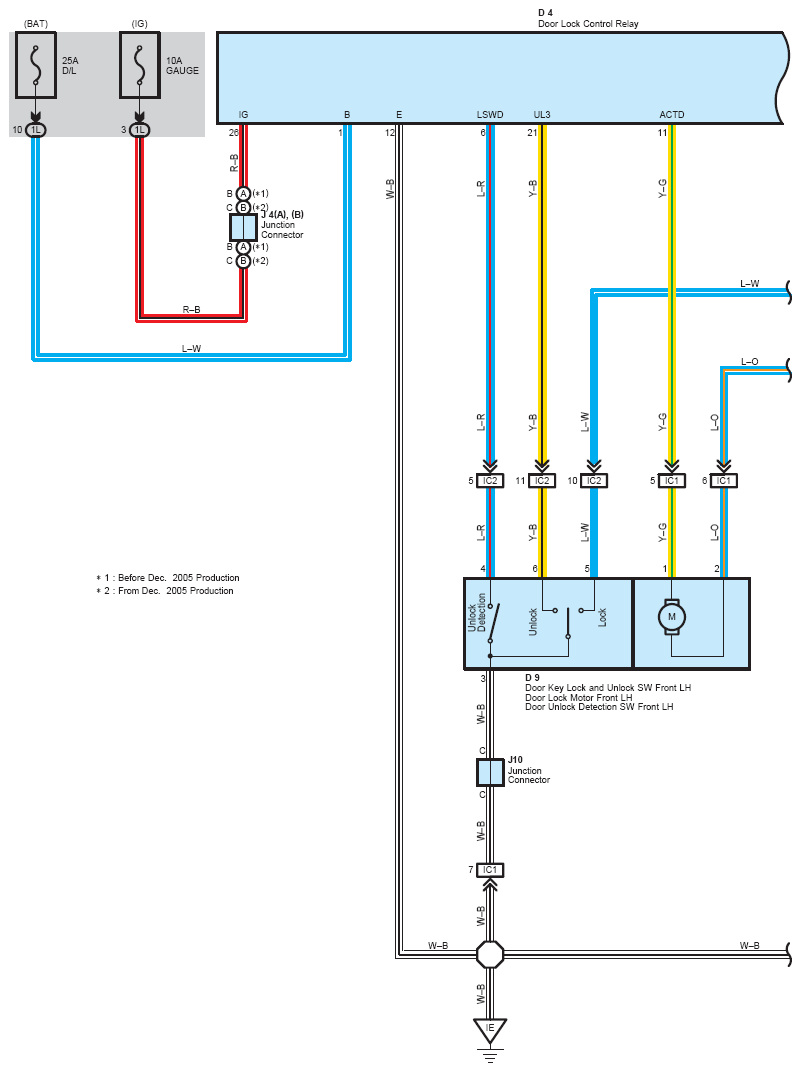

Fig 1: Wireless Door Lock Control System Wiring Diagram (1 Of 5)
G08759019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

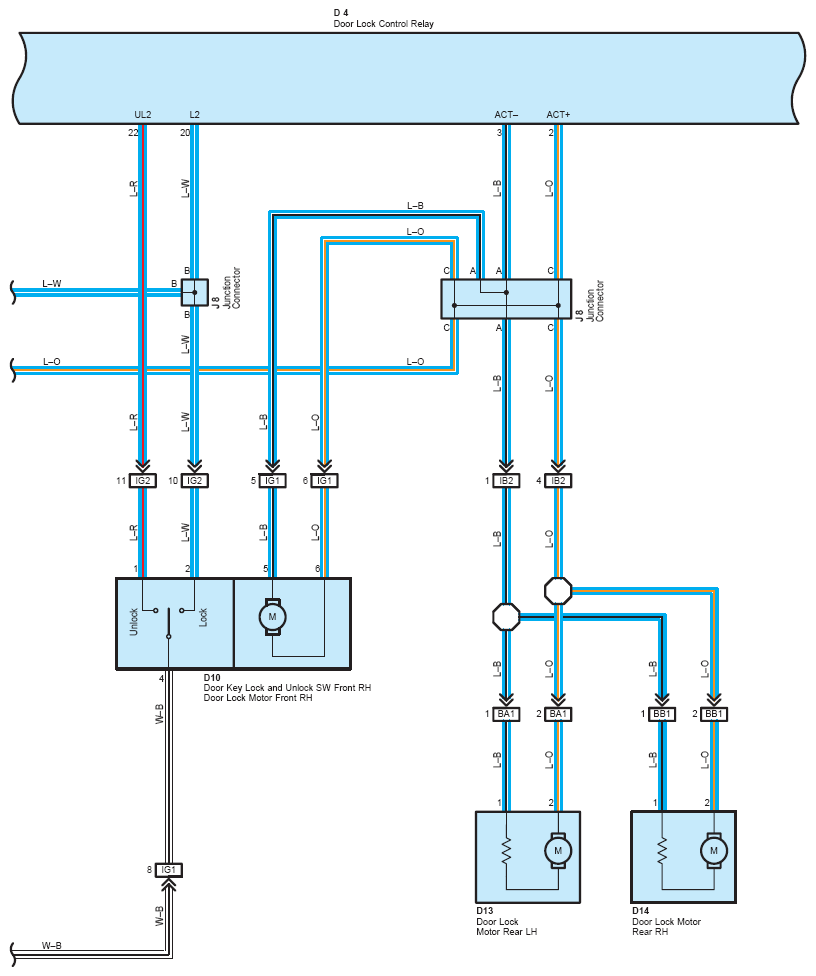

Fig 2: Wireless Door Lock Control System Wiring Diagram (2 Of 5)
G08759020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

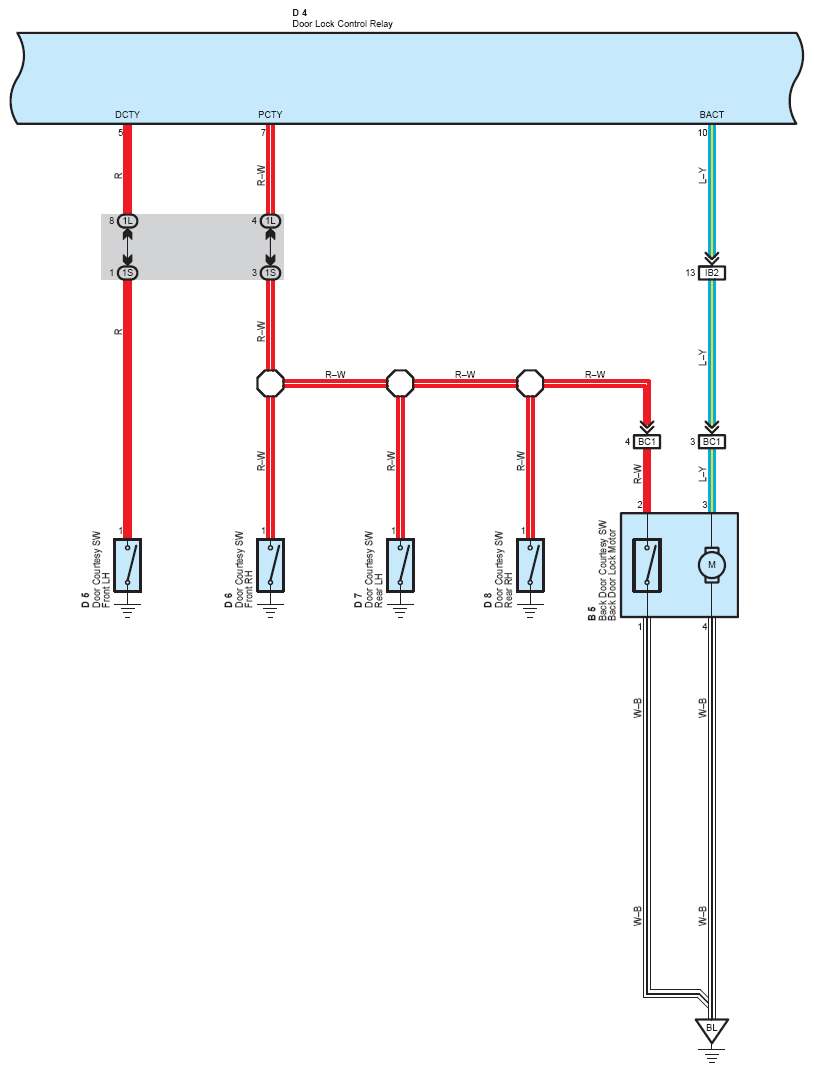

Fig 3: Wireless Door Lock Control System Wiring Diagram (3 Of 5)
G08759021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

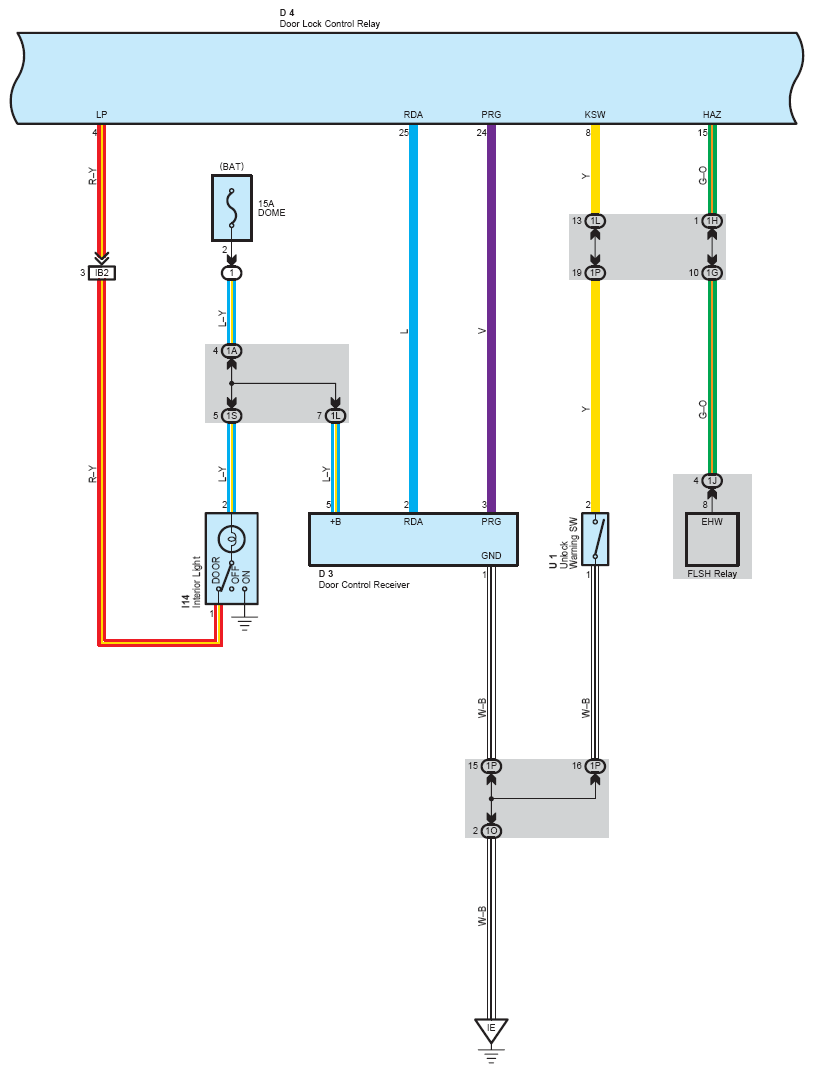

Fig 4: Wireless Door Lock Control System Wiring Diagram (4 Of 5)
G08759022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

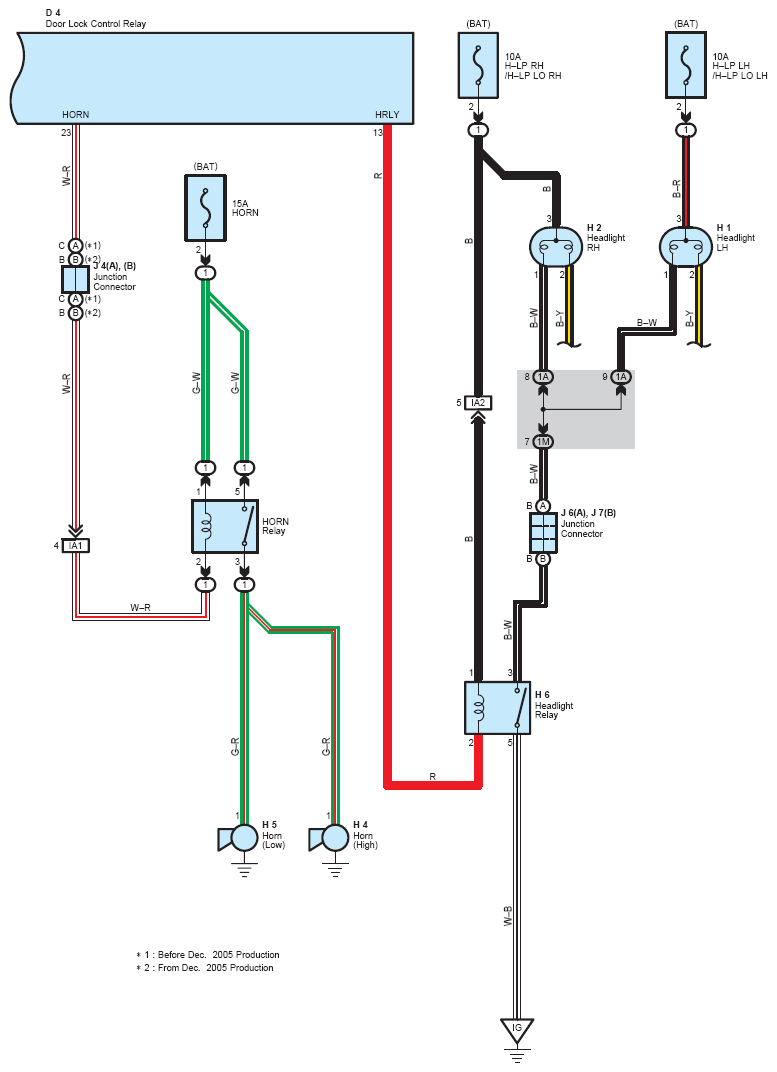

Fig 5: Wireless Door Lock Control System Wiring Diagram (5 Of 5)
G08759023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
