ABS, TRAC and VSC: Notes

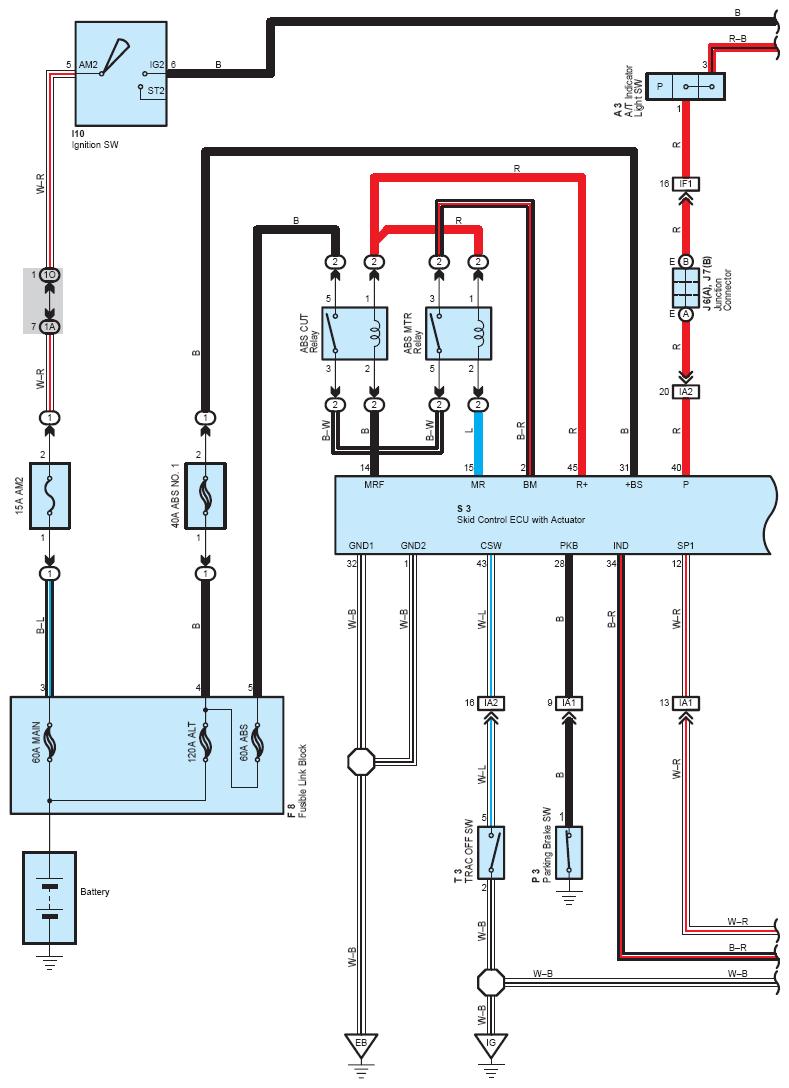

Fig 1: ABS, TRAC And VSC System Wiring Diagram (1 Of 4)
G08759027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

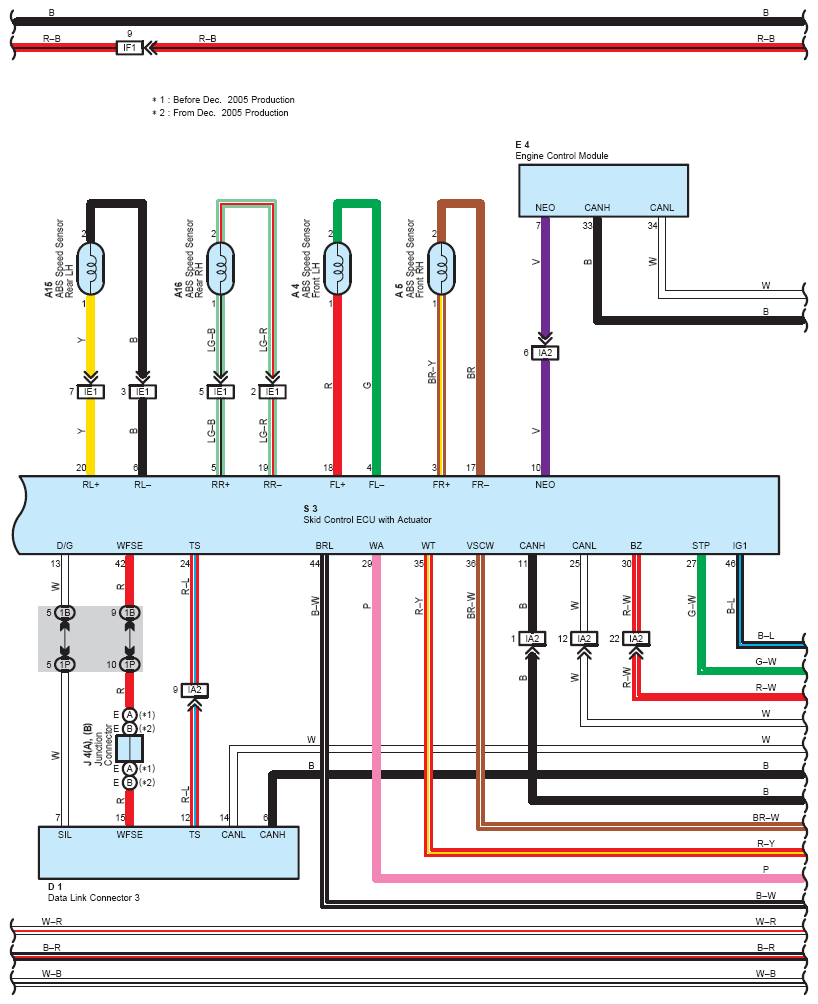

Fig 2: ABS, TRAC And VSC System Wiring Diagram (2 Of 4)
G08759028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

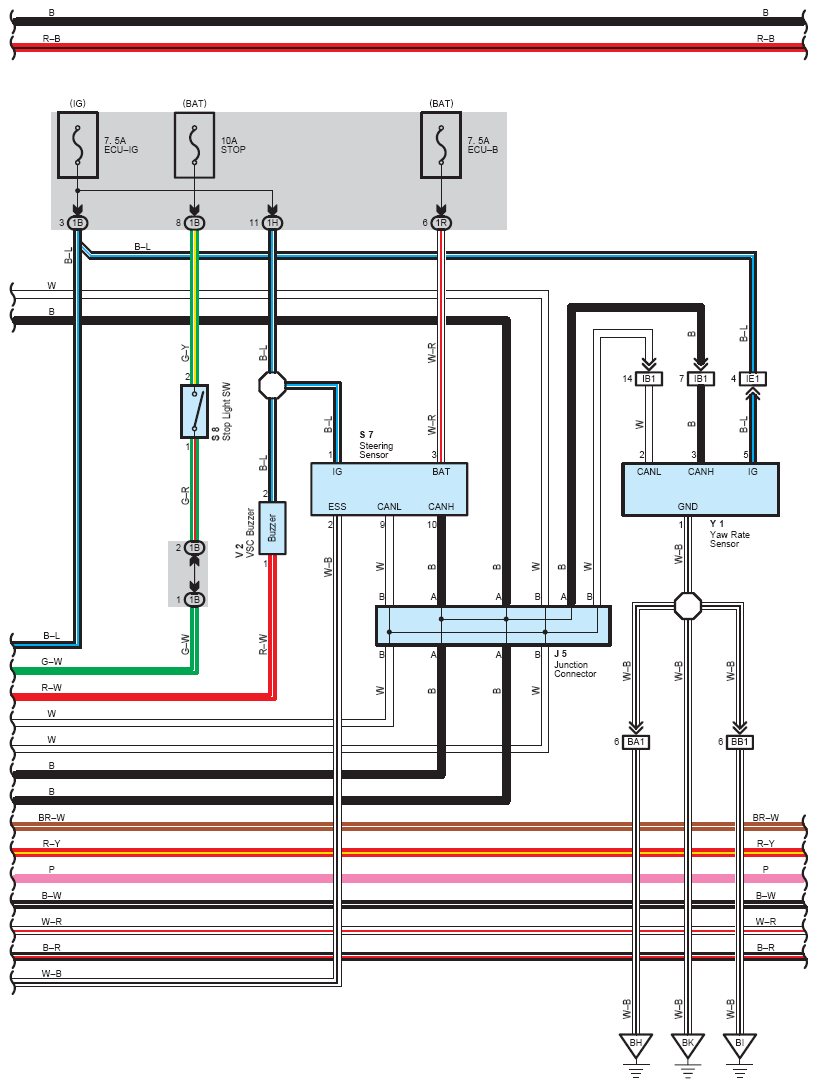

Fig 3: ABS, TRAC And VSC System Wiring Diagram (3 Of 4)
G08759029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

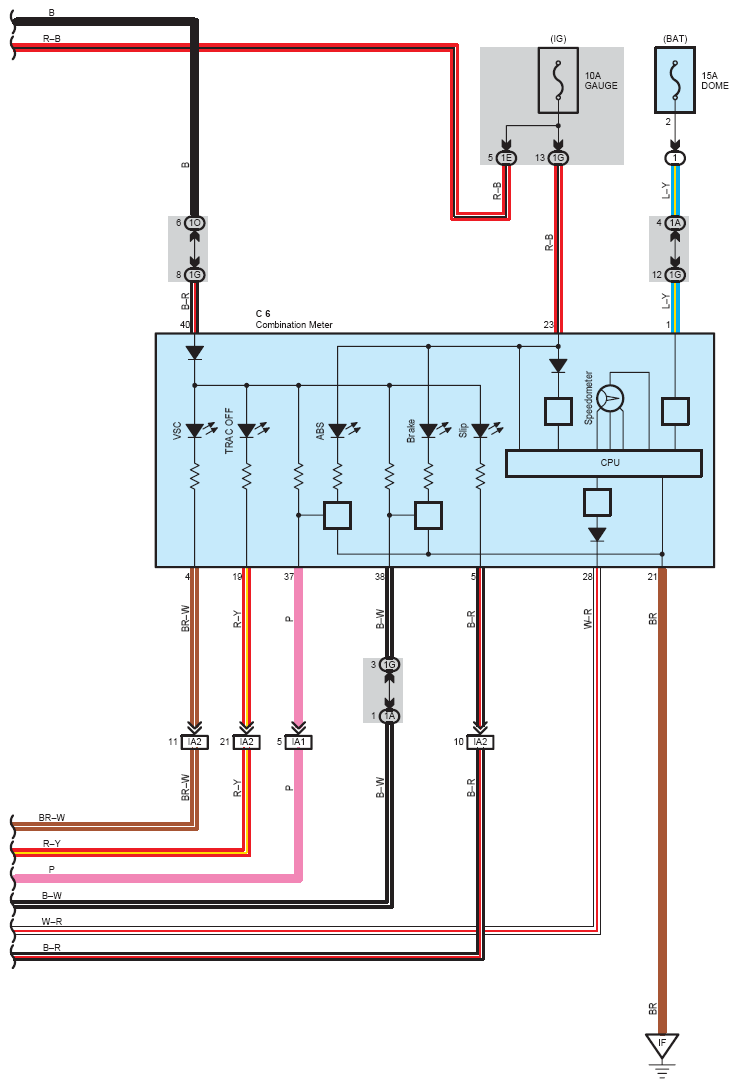

Fig 4: ABS, TRAC And VSC System Wiring Diagram (4 Of 4)
G08759030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
