Floor Shift Lever Assembly: Components

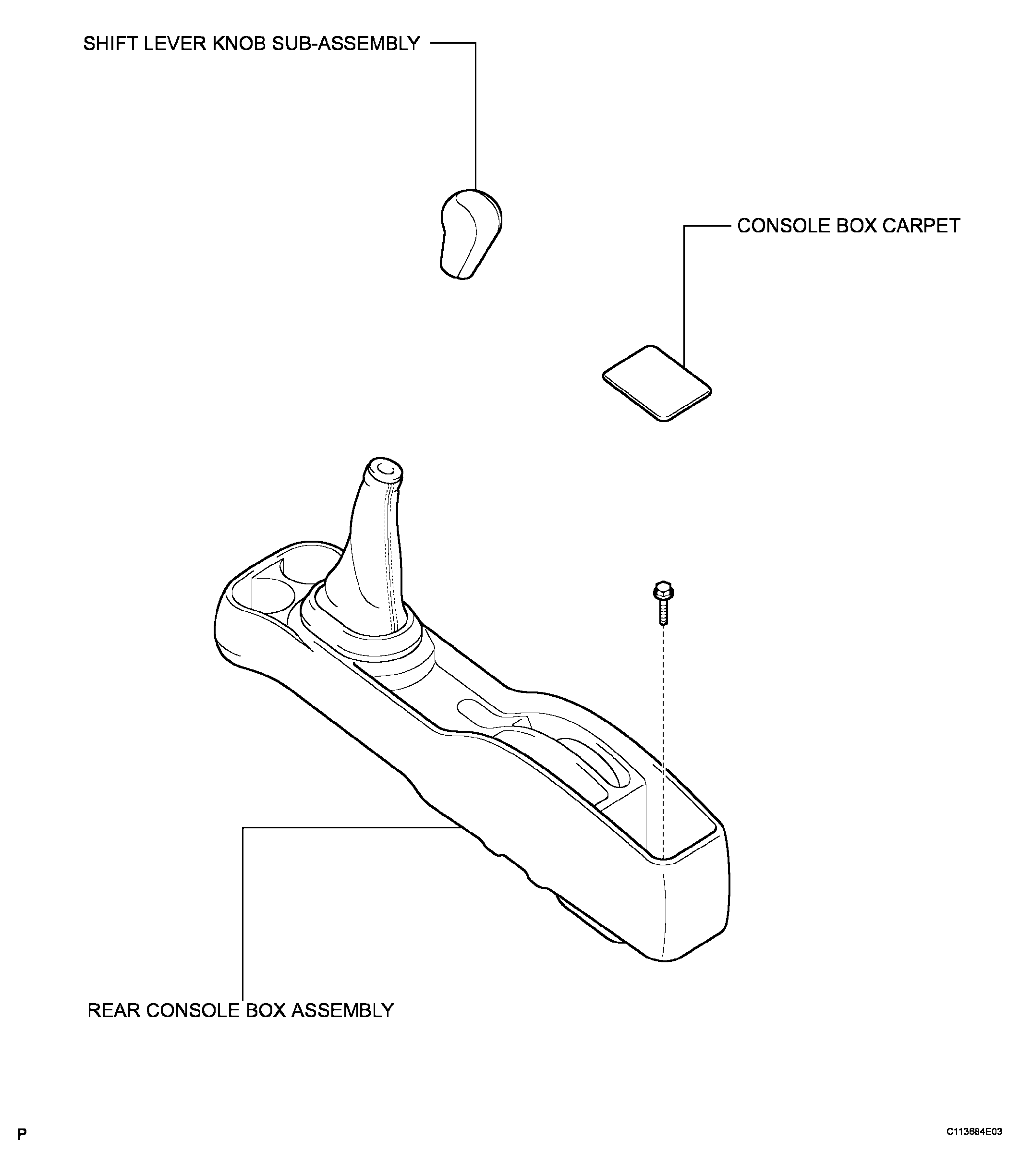

Fig 1: Identifying Floor Shift Lever Assembly Components (1 Of 2)
G04228045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

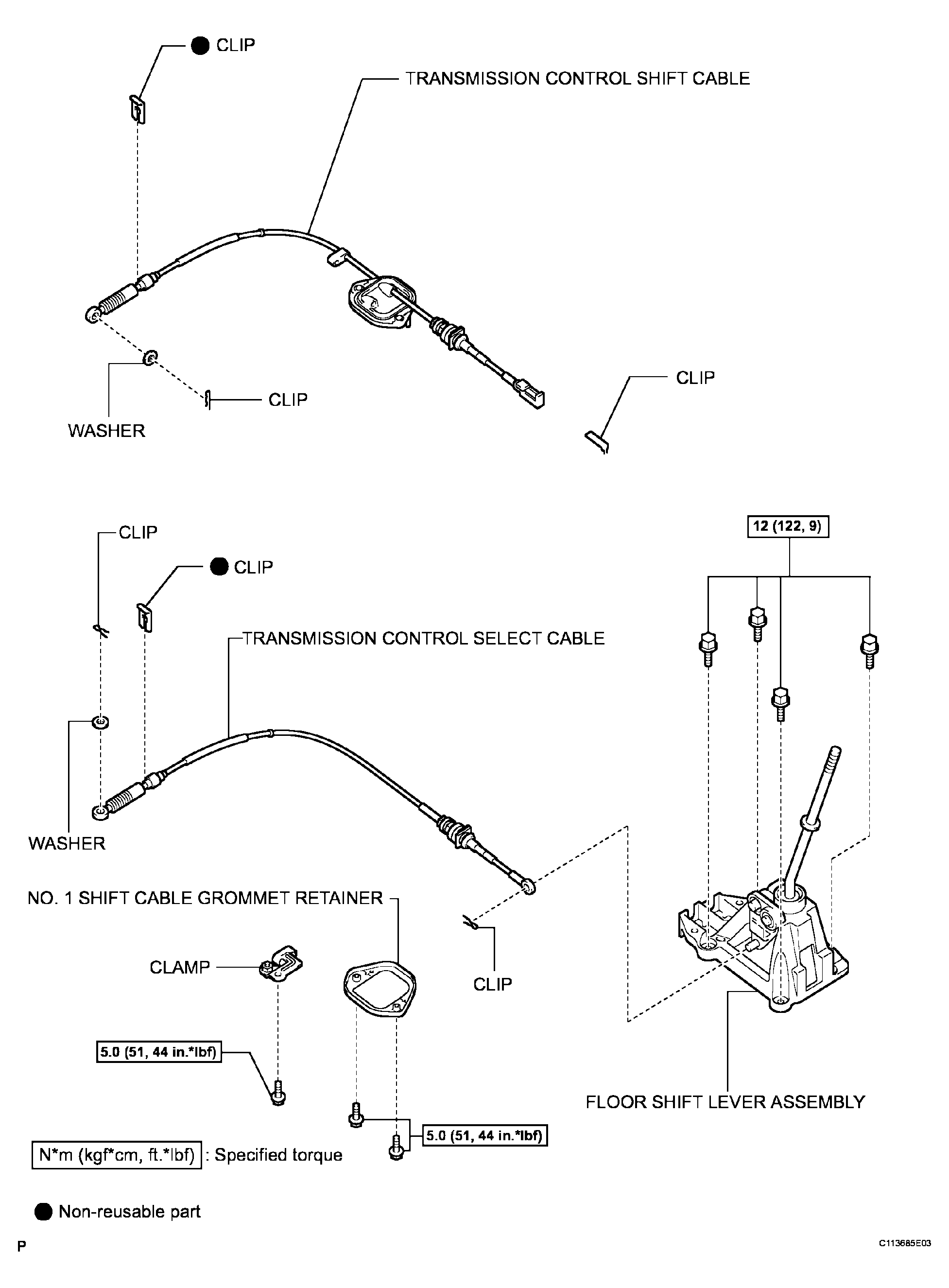

Fig 2: Identifying Floor Shift Lever Assembly Components (2 Of 2)
G04228046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
