Manual Transaxle Assembly: Components

Fig 1: Identifying Manual Transaxle Assembly Components (1 Of 5)
G04228077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

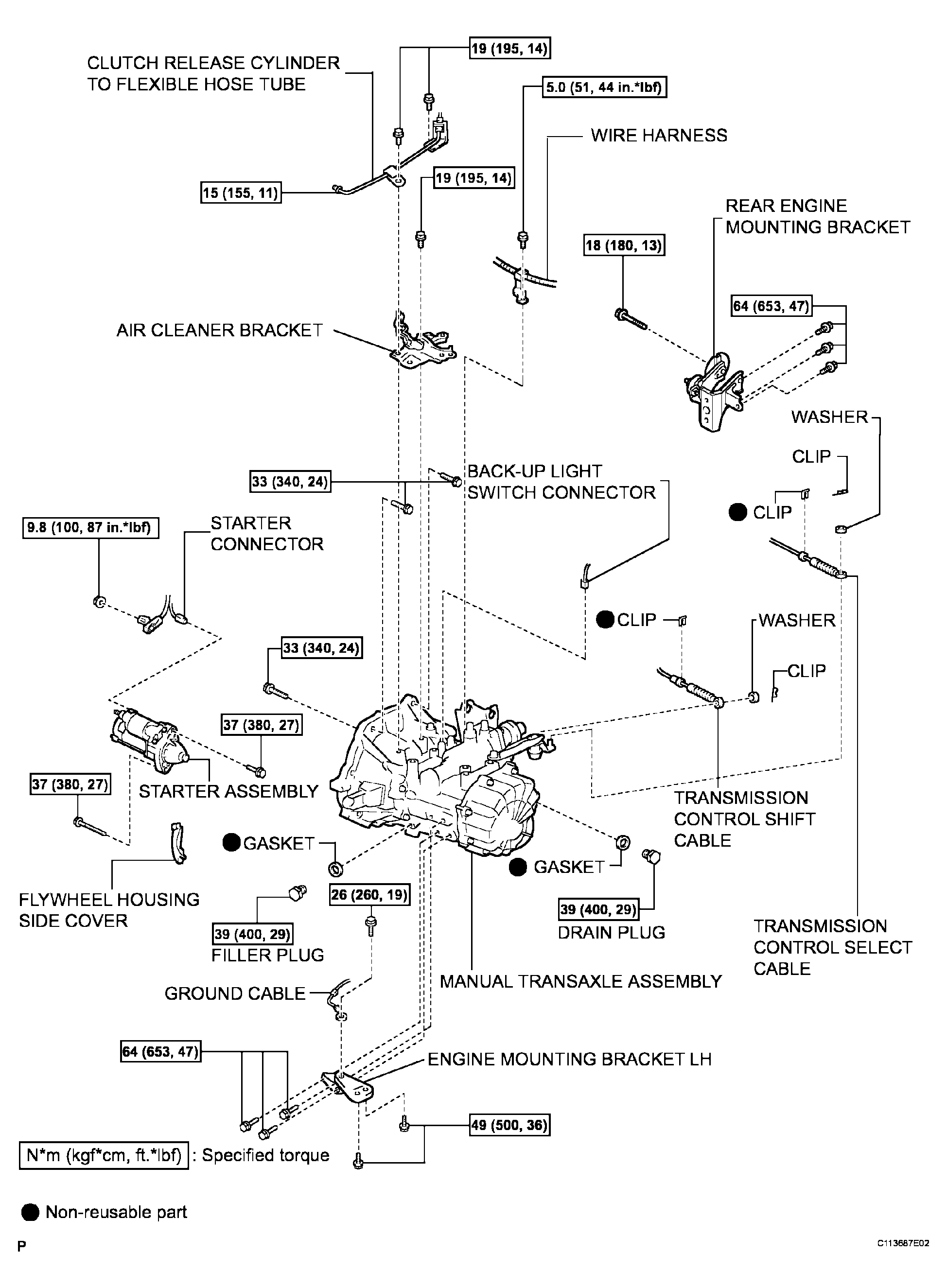

Fig 2: Identifying Manual Transaxle Assembly Components (2 Of 5)
G04228078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

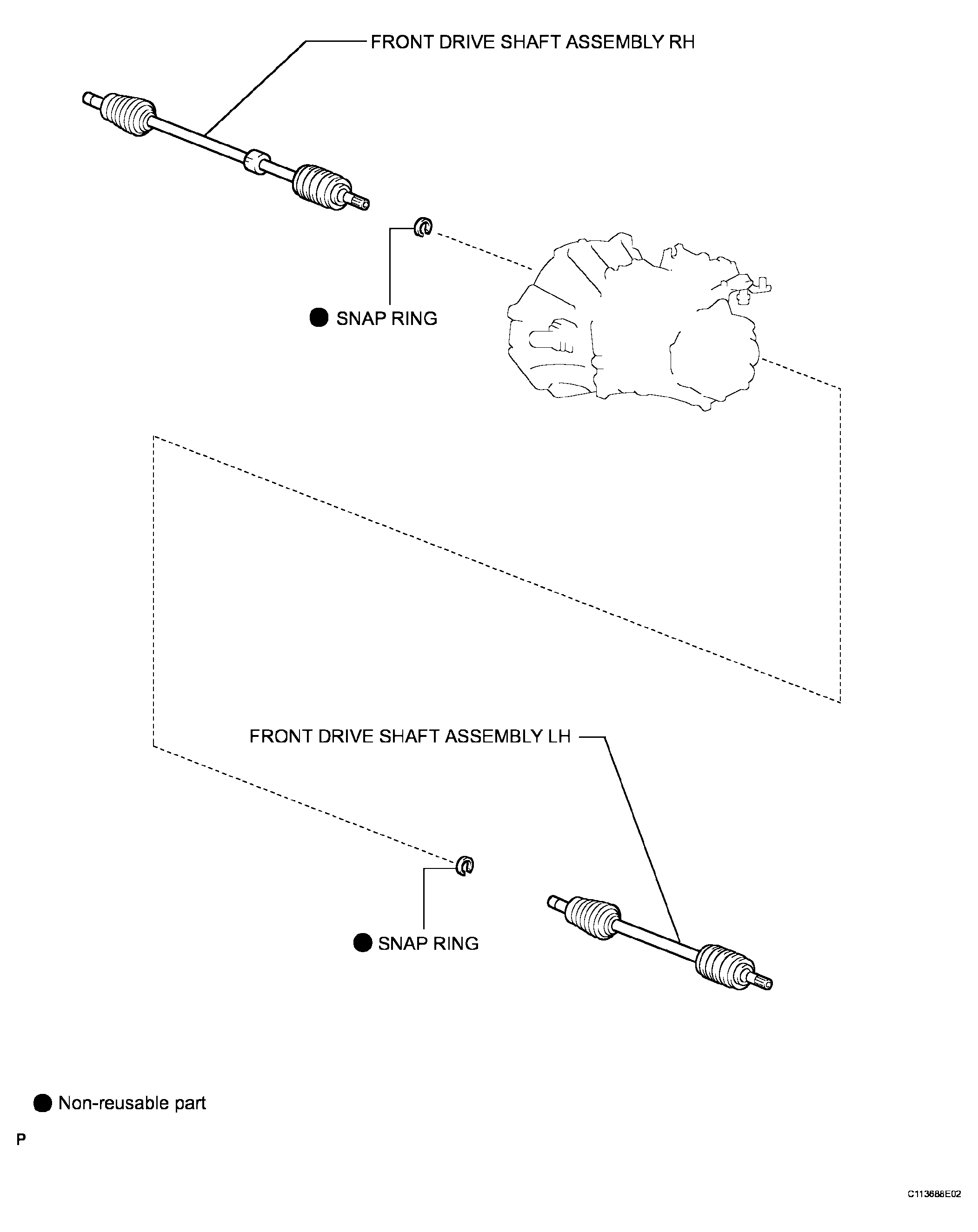

Fig 3: Identifying Manual Transaxle Assembly Components (3 Of 5)
G04228079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Manual Transaxle Assembly Components (4 Of 5)
G04228080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Manual Transaxle Assembly Components (5 Of 5)
G04228081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
